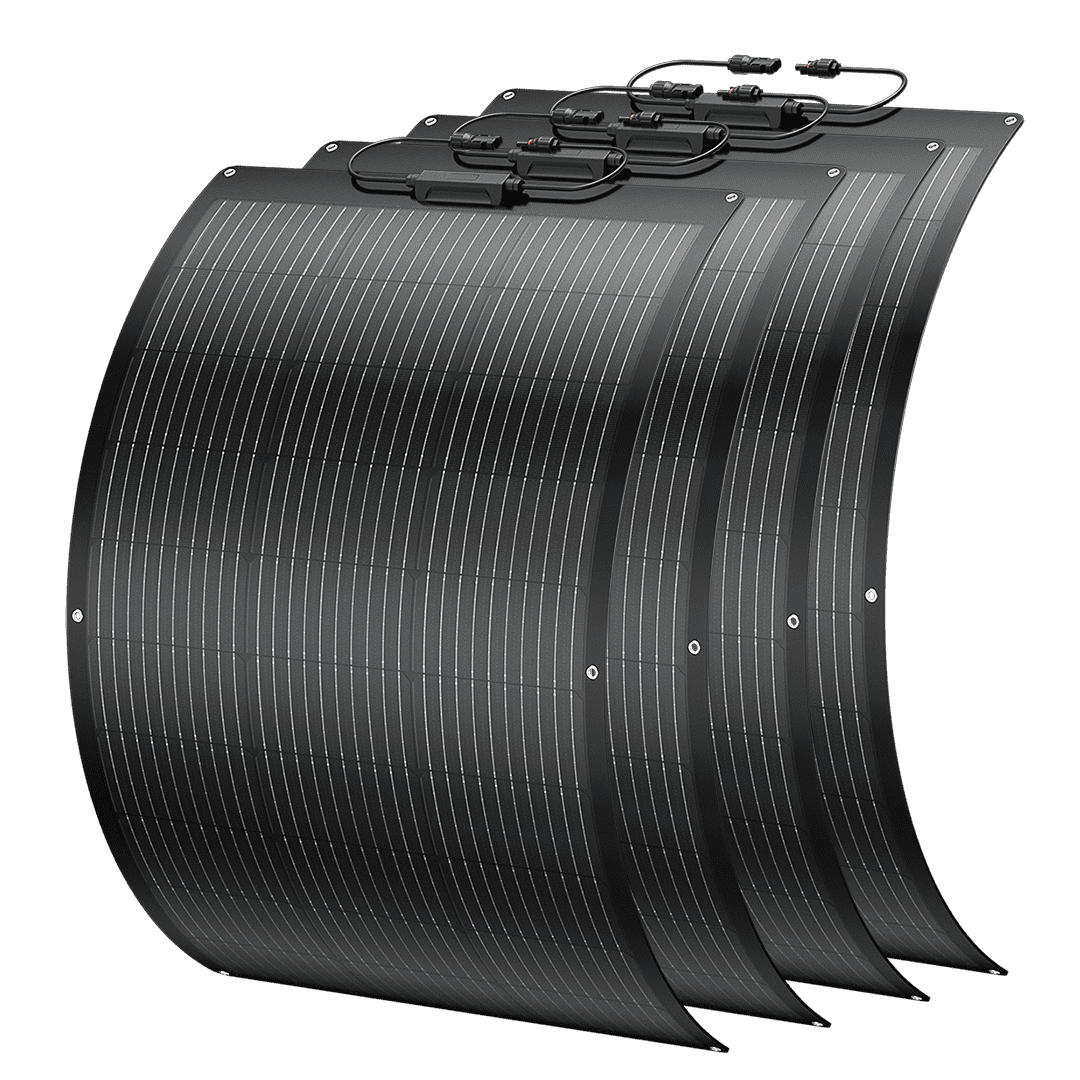

BougeRV Arch 400 Watt (4x100W) Fiberglass Curved Solar Panel
BougeRV Arch 400 Watt (4x100W) Fiberglass Curved Solar Panel
BougeRV Arch 400 Watt (4x100W) Fiberglass Curved Solar Panel

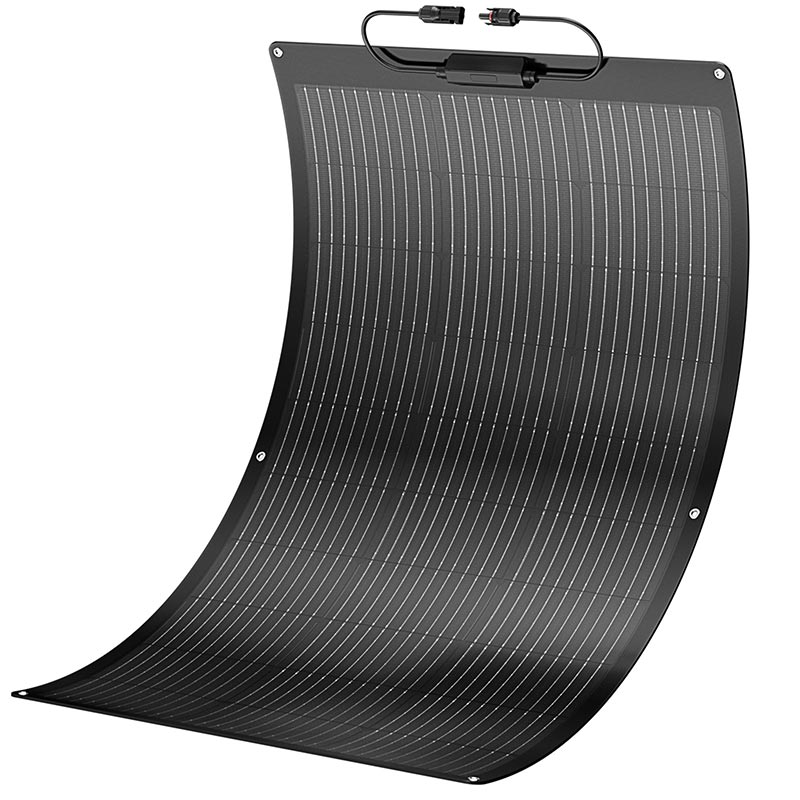

BougeRV Fiberglass 100W Solar Panel-2

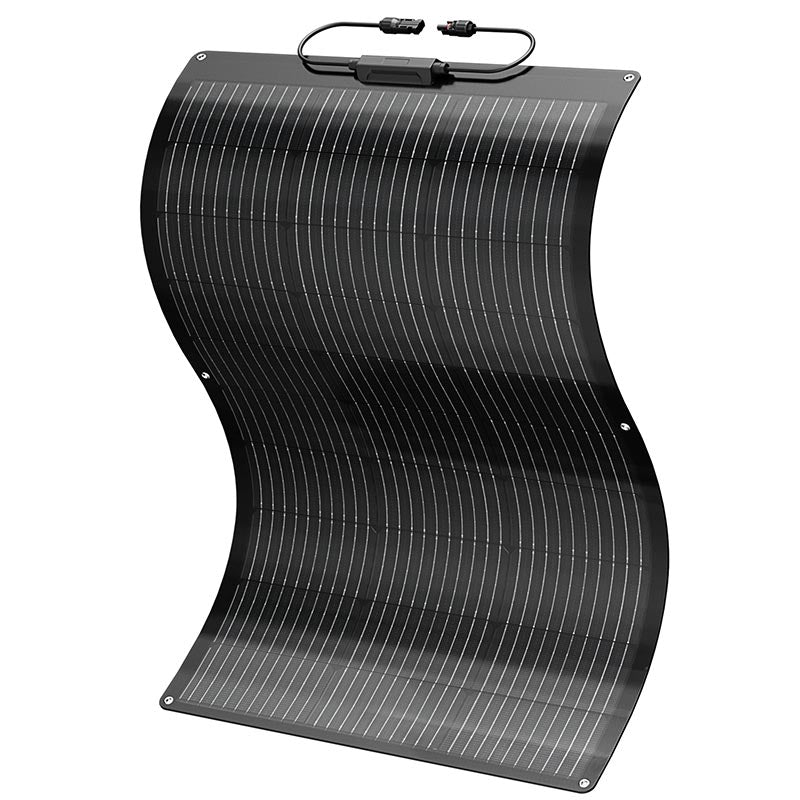

BougeRV Fiberglass 100W Solar Panel-3
BougeRV Arch 400 Watt (4x100W) Fiberglass Curved Solar Panel
BougeRV Arch 400 Watt (4x100W) Fiberglass Curved Solar Panel
BougeRV Arch 400 Watt (4x100W) Fiberglass Curved Solar Panel
FEATURES PRODUCT VIDEO

BougeRV Arch 400 Watt (4x100W) Fiberglass Curved Solar Panel

400 watt curved 10bb flexible

$531.99 Regular price
/

BougeRV curved solar panel offers unmatched flexibility and durability. With double glass fiber layers placed on the upper and lower surfaces of the 10BB mono solar cell, this panel is protected from damage to the maximum extent. No worries about cracks. By conforming better to curved surfaces, it maximizes the use of limited roof space or even the curved sections of a vehicle's front. This fiberglass solar panel is ultra-lightweight, weighing only 4 lbs and measuring only 2mm thin, which makes it easy to carry and move.
Read more » Fold up »


Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee
  • Features
  • Tech Specs
  • Reviews
  • Faq

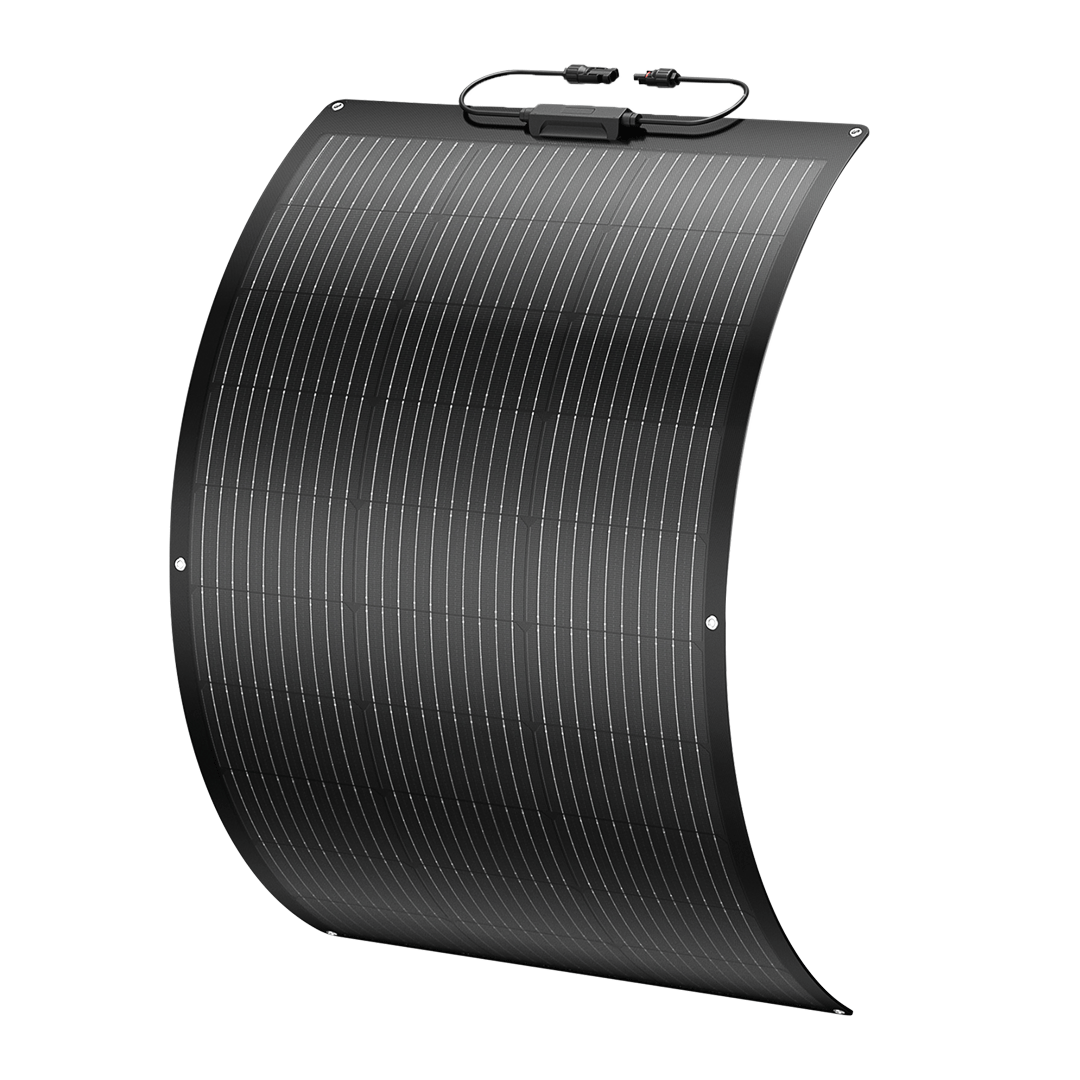

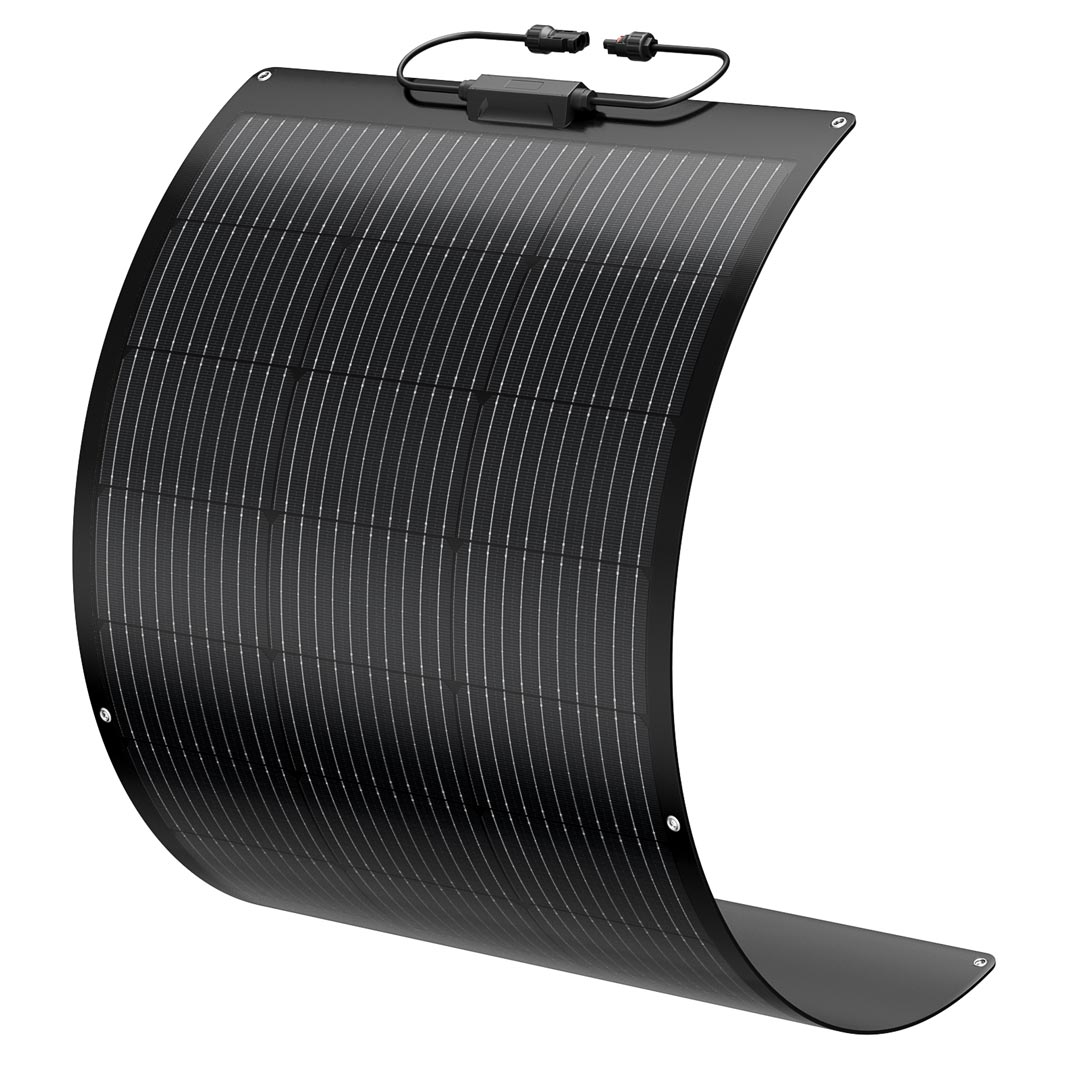

BougeRV Arch 100 Watt Fiberglass Curved Solar Panel
BougeRV Arch 100 Watt Fiberglass Curved Solar Panel

LEARN MORE ABOUT BOUGERV FIBERGLASS SOLAR PANEL

HIGHLIGHTS

BougeRV Arch 100 Watt Fiberglass Curved Solar Panel with Multipurpose Use
BougeRV Arch 100 Watt Fiberglass Curved Solar Panel with Multipurpose Use
Multipurpose Use

BougeRV innovative fiberglass curved solar panel, crafted from flexible fiberglass material, can bend up to 270 degrees for seamless integration on boats, RVs, Jeeps, and roofs. Outshining traditional monocrystalline silicon panels, it offers enhanced adaptability and diverse mounting options, broadening the potential for solar energy application.

BougeRV Arch 100 Watt Fiberglass Curved Solar Panel with 4lbs like your laptop
BougeRV Arch 100 Watt Fiberglass Curved Solar Panel with 4lbs like your laptop
4Lbs Like Your Laptop

BougeRV advanced fiberglass curved solar panel, weighing only 4 pounds, provides exceptional portability compared to traditional glass panels. Its lightweight design simplifies and accelerates installation, offering an easy replacement for conventional options.

BougeRV Arch 100 Watt Fiberglass Curved Solar Panel with 2.1mm--two pennies thick
BougeRV Arch 100 Watt Fiberglass Curved Solar Panel with 2.1mm--two pennies thick
2.1mm—Two Pennies Thick

BougeRV 2.1mm glass fiberglass curved solar panel boasts an ultra-slim profile as thin as two stacked coins, ensuring easy installation and a significant space-saving advantage, making it an ideal solution for cramped living spaces and vehicles.

BougeRV Arch 100 Watt Fiberglass Curved Solar Panel with IP68 WaterProof
BougeRV Arch 100 Watt Fiberglass Curved Solar Panel with IP68 WaterProof
IP68 WaterProof


BougeRV fiberglass curved solar panels are IP68 waterproof, ensuring durability and functionality even when fully submerged or exposed to extreme weather.

BougeRV Arch 100 Watt Fiberglass Curved Solar Panel with durable & Long Lasting
BougeRV Arch 100 Watt Fiberglass Curved Solar Panel with durable & Long Lasting
Durable & Long Lasting

The BougeRV curved fiberglass solar panel is designed for durability, able to resist high wind (2400 Pa) and heavy snow (5400 Pa), with corrosion-resistant aluminum for an extended lifespan.

BougeRV Arch 100 Watt Fiberglass Curved Solar Panel with 10BB Cell Design
BougeRV Arch 100 Watt Fiberglass Curved Solar Panel with 10BB Cell Design
10BB Cell Design

The BougeRV fiberglass curved solar panel features an efficient 10BB cell design, achieving a high conversion rate of up to 23%. Its design also minimizes shading on the cells, enhancing light absorption and potentially contributing to the panel's overall longevity.

Multipurpose Use

Product Specifications

SKU ISE214
Max Power (Pmax) 100±5%W Operating Temperature Limits

-40℉ ~ +185℉

Solar Cells Efficiency 23% Series Fuse Rating 10A
Max. Power Voltage Vmp (V) 17.1±5%V Temperature Coefficient Pmax -0.39%/℃
Max. Power Current Imp (A) 5.85±5%A  Temperature Coefficient Voc -0.33%/℃
Open Circuit Voltage Voc (V) 19.8±5%V Temperature Coefficient Isc 0.06%/℃
Short Circuit Current (Isc) 6.16±5%A Dimensions 39.6*23.7*0.08 inches
Power output warranty 25 year 80% output warranty Weight 3.81 lbs
Material & workmanship warranty 5 year Product Type Curved Solar Panels
SKU ISE214
Max Power (Pmax) 100±5%W
Solar Cells Efficiency 23%
Max. Power Voltage Vmp (V) 17.1±5%V
Max. Power Current Imp (A) 5.85±5%A
Open Circuit Voltage Voc (V) 19.8±5%V
Short Circuit Current (Isc) 6.16±5%A
Max. System Voltage 1000V DC
Material & workmanship warranty 5 Years
Operating Temperature Limits -40℉ ~ +185℉
Power output warranty 25 year 80% output warranty
Temperature Coefficient Pmax -0.39%/℃
Temperature Coefficient Voc -0.33%/℃
Temperature Coefficient Isc -0.06%/℃
Dimensions 39.6*23.7*0.08 inches
Weight 3.81 lbs

User Manual

Reviews

FAQs

Yes, solar panels can be curved. These panels are designed to have a curved shape. They are perfect for boats, RVs, and roofs that lack the necessary flat surface for rigid solar array frames.

The decision to choose a curved solar panel or traditional solar panel depends on the specific requirements, budget, and personal preferences. The BougeRV 100W flexible solar panel, made of glass fiber, incorporates the advanced 10BB cell design and an extended lifespan for the panel.

The BougeRV 100W curved solar panel is made with high-quality 10BB cells, resulting in a remarkable 23% conversion rate, the highest in its class. This design feature not only extends the solar panel's lifespan but also enhances its efficiency.

Flexibility: Can be installed on uneven or curved surfaces.

Lightweight: Generally lighter than traditional rigid panels, making them easier to handle and install.

Durability: Often more resistant to impacts and can be more durable in certain conditions.

Aesthetic appeal: Can blend more seamlessly with the design of buildings, vehicles, or other structures.

BougeRV solar panels are designed to withstand various environmental conditions, including rain, snow, and UV radiation. These fiberglass curved solar panels are perfect for rvs, boats, vans.
