Name: 5 PCS 15A Solar Fuse Holder
Brand: BougeRV
SKU: ISE082
Price: 38.99 USD
Availability: InStock

BougeRV 15A Solar Inline Fuse Connector Specification

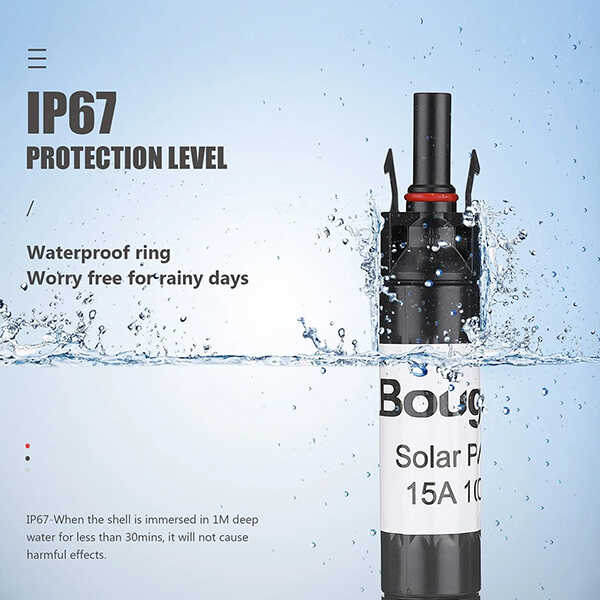

There is an IP67 protection waterproof ring on the male connector

this solar fuse can keep stable working outdoors at all hours

(27)

$38.99

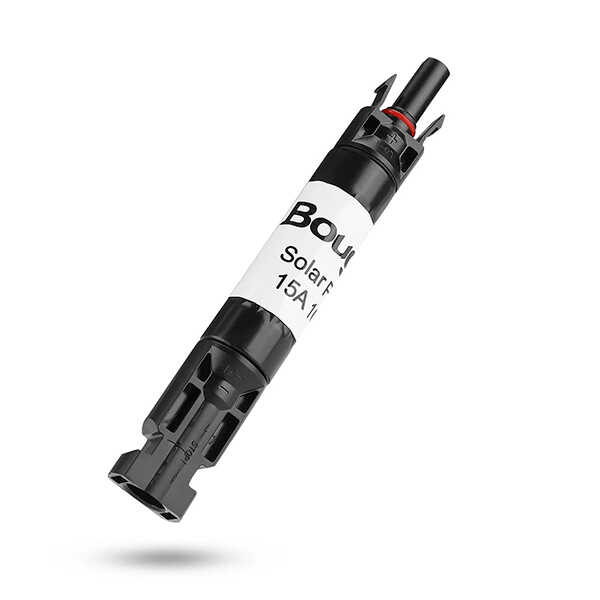

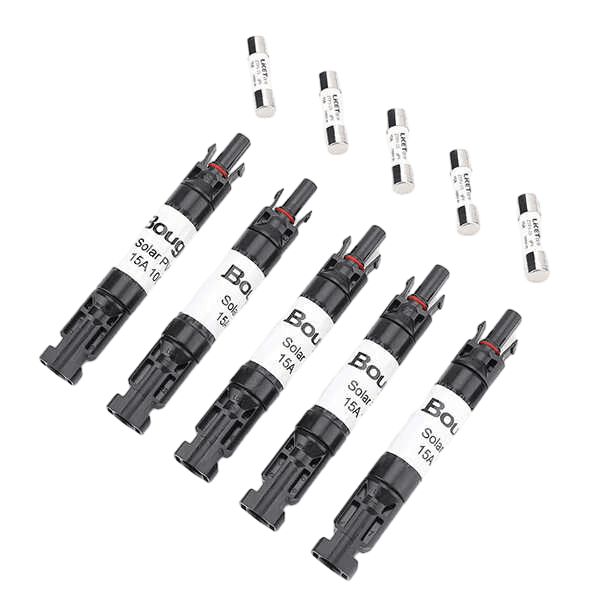

BougeRV offers a pack of 5 15A Waterproof Inline Solar Fuses designed to protect your solar system from overcurrent and short circuit conditions. These fuses are specifically designed for solar applications and provide reliable protection for your solar panels and other components. With their waterproof and durable construction, these inline fuses ensure safe and reliable operation in various weather conditions. BougeRV's 5 pc 15A Waterproof Inline Solar Fuses are an essential component for ensuring the safety and efficiency of your solar setup.

Why would I need BougeRV 15A SOLAR FUSE?

1. Photovoltaic Fuse: 5pc 15A waterproof inline solar fuse provides exceptional protection for your photovoltaic system, including your solar panels, solar controller, and other appliances. It quickly interrupts the circuit once the fuse's rated amperage is exceeded, preventing any potential damage to your photovoltaic appliances.

2. Easy Installation and Stability: This solar inline fuse connector is designed to be plug-and-play, suitable for most solar connectors. The built-in lock on the male connector ensures that it remains stable even when used outdoors. Made with high-quality PPO material, this solar fuse connector is resistant to UV and aging.

3. Waterproof: With an IP67 protection degree waterproof ring on the male connector, this solar fuse connector is perfect for use even on rainy days.

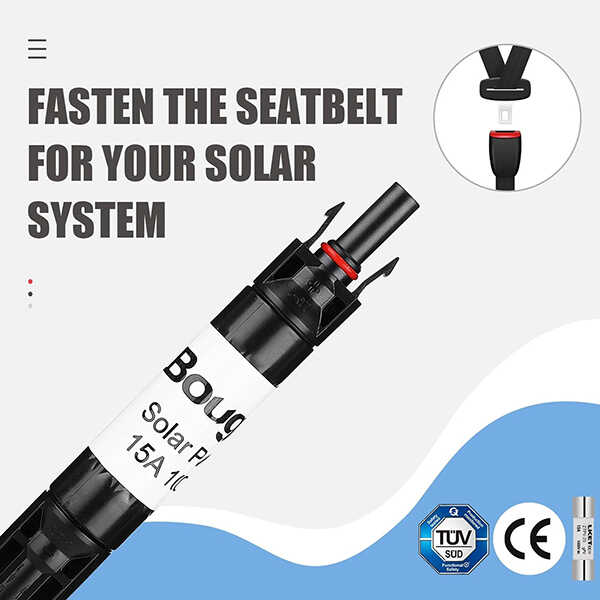

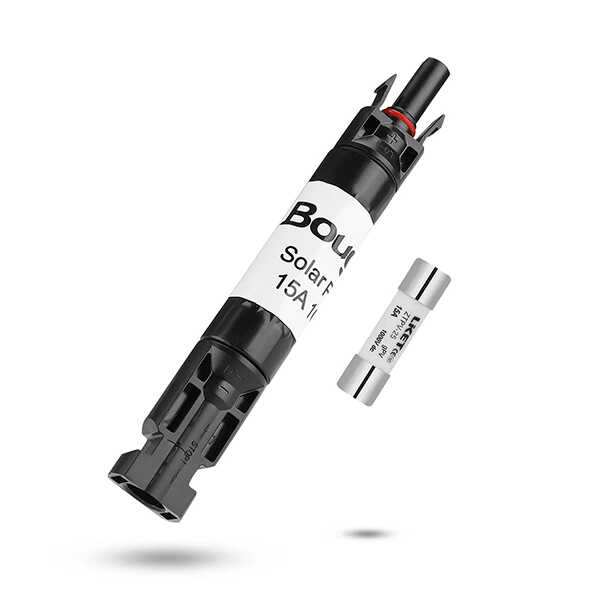

4. Dedicated PV Fuse: Certified by TÜV and CE, this solar fuse connector is an ideal choice for protecting against power surges. Featuring a ceramic fuse tube in the middle and solar connectors on either end, it is suitable for use with solar panels, solar cables, and solar controllers.

solar fuse with 18 MonthsProduct Support

WATERPROOF TO THE MAX

Equipped with an IP67 protection waterproof ring on the male connector, this product is built to withstand even the heaviest of downpours, ensuring stable operation no matter the weather.

ARC FAULT BE GONE

Thanks to its ceramic tube filled with fine quartz sand, this product can quickly and effectively cut the circuit in the event of a power surge, eliminating any potential for arc faults.

RELIABLE PERFORMANCE

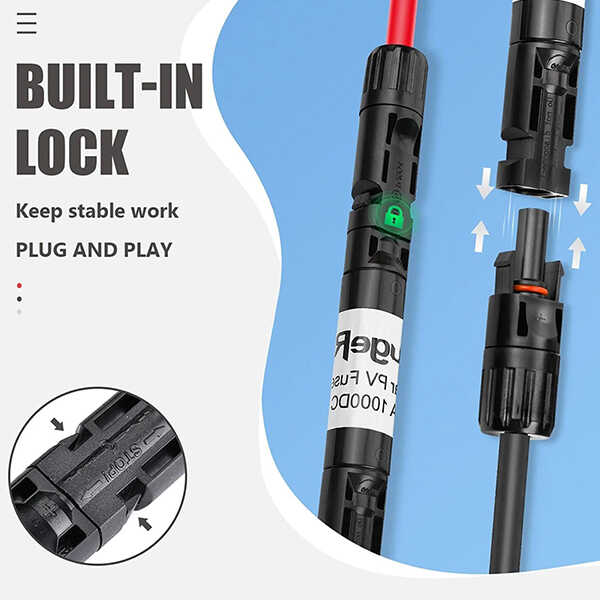

Featuring a built-in lock on the male connector, this solar fuse is specifically designed to maintain stable operation outdoors 24/7, ensuring reliable performance day or night.

WATERPROOF TO THE MAX

Equipped with an IP67 protection waterproof ring on the male connector, this product is built to withstand even the heaviest of downpours, ensuring stable operation no matter the weather.

ARC FAULT BE GONE

Thanks to its ceramic tube filled with fine quartz sand, this product can quickly and effectively cut the circuit in the event of a power surge, eliminating any potential for arc faults.

RELIABLE PERFORMANCE

Featuring a built-in lock on the male connector, this solar fuse is specifically designed to maintain stable operation outdoors 24/7, ensuring reliable performance day or night.

SKU	ISE082
Dimension	5.1 × 0.71 × 0.71 inch	Contact material	Copper tin-plated
Weight	45g/1.59oz	Insulation material	PPO
Ambient temperature range	-40℉ to 194 ℉(IEC)	Locking system plug connectors	Snap-in
Degree of protection	IP67	Flame class	UL94-HB / UL94-V0
Rated voltage	1000V DC (IEC)/800V DC (UL)	Rated current	15A
Cable Size	2.5 mm², 4 mm², 6 mm²(10awg, 11awg, 12awg, 13awg)	The contact resistance of plug connectors	0,5 mΩ

SKU	ISE082
Dimension	5.1 × 0.71 × 0.71 inch
Weight	45g/1.59oz
Ambient temperature range	-40℉ to 194 ℉(IEC)
Degree of protection	IP67
Rated voltage	1000V DC (IEC)/800V DC (UL)
Cable Size	2.5 mm², 4 mm², 6 mm²(10awg, 11awg, 12awg, 13awg)
Contact material	Copper tin-plated
Insulation material	PPO
Locking system plug connectors	Snap-in
Flame class	UL94-HB / UL94-V0
Rated current	15A
The contact resistance of plug connectors	0,5 mΩ
