BougeRV 12V 200 Watt Flexible Solar Kit

Name: BougeRV 12V 200 Watt Flexible Solar Kit
Brand: BougeRV
SKU: TT-ISE230
Price: 899.99 USD
Availability: InStock

$899.99

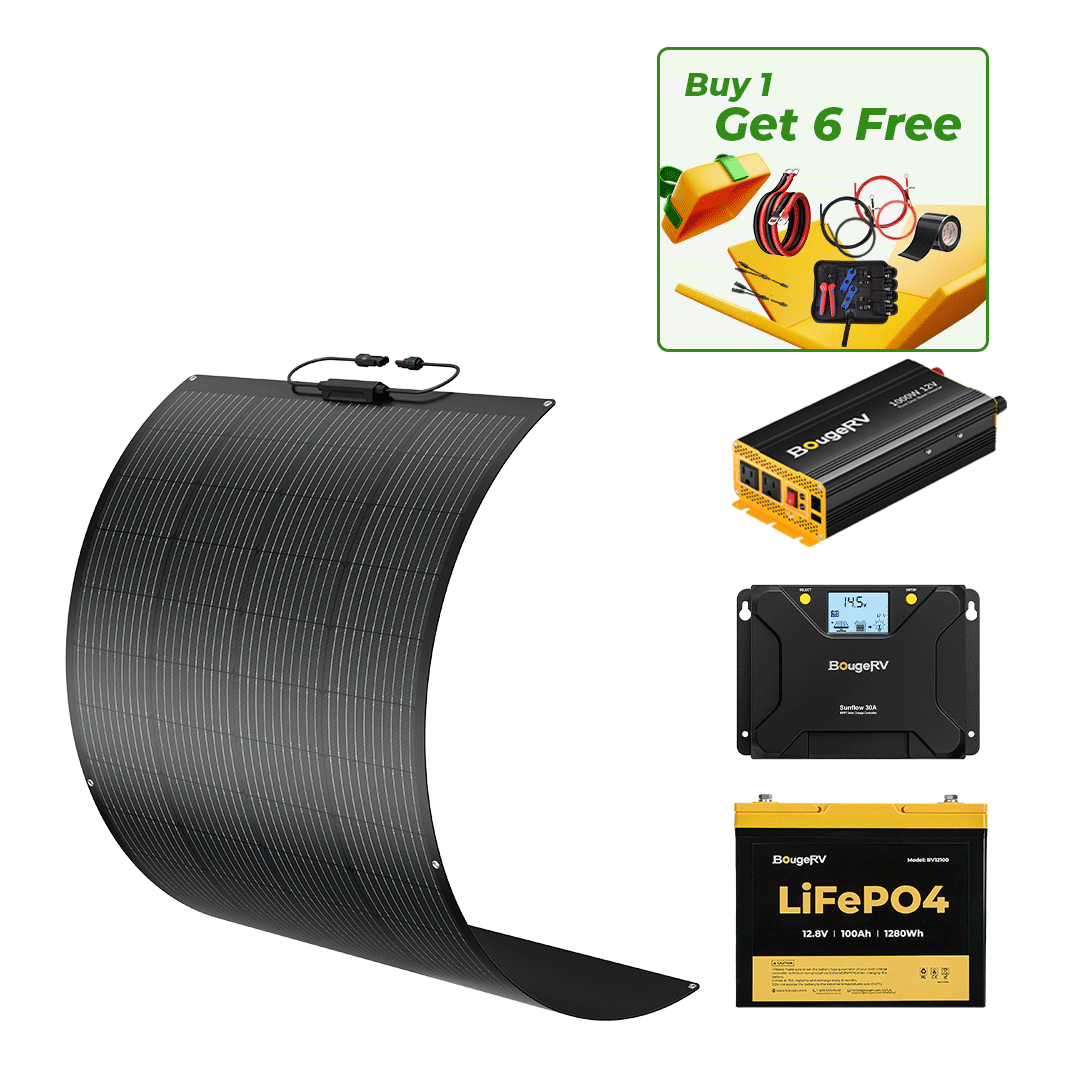

Package Included:

1PC Arch 200 Watt Fiberglass Curved Solar Panel
1PC BougeRV Sunflow 30A MPPT Solar Charge Controller 12V/24V
1PC 12V 100Ah Group 24 LiFePO4 Battery
1PC 1000W 12V Pure Sine Wave Inverter with Bluetooth

Package Included

1PC Arch 200 Watt Fiberglass Curved Solar Panel
1PC BougeRV Sunflow 30A MPPT Solar Charge Controller 12V/24V
1PC 12V 100Ah Group 24 LiFePO4 Battery
1PC 1000W 12V Pure Sine Wave Inverter with Bluetooth

Features

Multipurpose Use

BougeRV innovative fiberglass curved solar panel, crafted from flexible fiberglass material, can bend up to 270 degrees for seamless integration on boats, RVs, Jeeps, and roofs. Outshining traditional monocrystalline silicon panels, it offers enhanced adaptability and diverse mounting options, broadening the potential for solar energy application.

10BB Cell Design

The BougeRV fiberglass curved solar panel features an efficient 10BB cell design, achieving a high conversion rate of up to 23%. Its design also minimizes shading on the cells, enhancing light absorption and potentially contributing to the panel's overall longevity.

Ultra Lightweight &Thin

The BougeRV 2.1mm glass fiberglass curved solar panel, with its ultra-slim design and lightweight at just 7 pounds, offers easy installation and space efficiency, ideal for tight spaces in vehicles and compact living areas, while providing a portable alternative to traditional panels.

IP68 WaterProof

BougeRV fiberglass curved solar panels are IP68 waterproof, ensuring durability and functionality even when fully submerged or exposed to extreme weather.

Durable & Long Lasting

The BougeRV curved fiberglass solar panel is designed for durability, able to resist high wind (2400 Pa) and heavy snow (5400 Pa), with corrosion-resistant aluminum for an extended lifespan.

HIGHLIGHTS

FULLY COMPATIBLE WITH LiFePO4

BougeRV Sunflow 30A MPPT solar charge controller features low-temp cut-off charging (below 32℉) to protect your LiFePO4 battery, it can also restart or activate dormant 12V or 24V LiFePO4 batteries turned off due to short circuits or over-discharged.

HIGH-EFFICIENCY CHARGE

BougeRV Sunflow 30 Amp MPPT controller can adjust the charge current from 0A to 30A. BougeRV charge controller for solar panels, its high tracking efficiency is up to 99.5%, peak conversion efficiency is up to 99%, maximizing the solar panels' output. Adopting quality aluminum heat sink, the battery regulator can dissipate heat better and minimize the power lost under full load working.

ACTIVE SHIELD

Certified by CE and RoHS. BougeRV 30A MPPT renewable energy controller features a dual MOS circuit to prevent the reverse current and reduce the heat in operation. With 6 protections, over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention circuit, flow backward of current protections.

Group 24 Battery

Standard dimensions of L10.24" W6.61" H8.23". The BougeRV Group 24 12V 100Ah LiFePO4 battery offers an excellent balance of space and performance, providing sufficient ampere-hours to meet a variety of needs while greatly saving space.

Low-Temperature Protection

Provides low-temperature protection for battery charging. If the temperature falls below 32°F, it reduces or turns off current input and resumes charging at 35.6°F to ensure optimal battery health and extend battery life.

High Lifespan Cycles

The BougeRV 12V 100Ah LiFePO4 battery provides 4,000–15,000 recharge cycles and has a lifespan of more than 10 years under ideal conditions.

High Quality

Upgraded BMS:Provides overvoltage, low voltage, overcurrent, short circuit, low temperature, and high temperature protection for the battery. The BMS ensures the safety of normal battery use by monitoring battery status and extending battery life
Progressive Choice:Only 24.25 lbs,lighter than 66 lbs of lead-acid batteries. Charge Cycle Count of LiFePo4 battery is 4000-15000, which is much higher than 200-500 of lead-acid battery. LiFePo4 battery also supports full charge and discharge(100% DOD)

Safety Expandable Battery Bank

Supporting up to 16 batteries in a series-parallel pack (4S4P), the maximum capacity of the battery can be up to 20480 Wh.

Overload Self-Recovery

The BougeRV LiFePO4 battery can self-recover after charge and discharge overloads without disconnecting the wiring from the battery. The recovery process takes only 32 seconds, ensuring safe electricity use.

Fully 1000W Output

Fully 1000W output, all appliances under 1000W can be run. Equipped with 15A outlets, making sure the BougeRV pure sine wave inverter can be run for a long time at 1000W.

Real-Time Remote Monitor

BougeRV pure sine wave inverter is with built-in Bluetooth communication function, users can monitor operating data of the battery and appliances in any time through the BougeRV APP. Bluetooth acceptance range is 18-20M ( barrier-free). Users can control the inverter via the 19.7 feet wired remote controller and can install it in RVs and houses for their needs.

Excellent Pure Sine Wave Inverter

The pure sine wave inverter provides pure power, with a low distortion rate (≤5%), ensuring proper operation of sensitive electronic equipment. Lower power consumption and high conversion efficiency. Pure sine wave inverters keep voltage and current at safe levels, which extends the life of appliances. Pure sine wave inverter always makes less noise than modified sine wave inverter.

Lithium Battery Soft Startup Protection

With lithium battery soft startup protection function, the pure sine wave inverter is compatible better with lithium battery, preventing frequent disconnection. ( NOTE: If the surge current of inverter is greater than the over-discharge current of some lithium batteries, which will trigger the BMS protection function of these lithium batteries. Therefore, inverter will not work.)

Intelligent Temperature Control

With 2 high-speed cooling fans, BougeRV pure sine wave inverter can control temperature intelligently. Fan Cooling Startup: Temperature ≥113℉/ Output ≥50% (1000W).

Reliable Service

BougeRV pure sine wave inverter comes with 18-month tech support that commences from the date of purchase. NOTE: Please check whether all accessories are included when you received the inverter, if not, feel free to get in touch with BougeRV.

Fully 1000W Output

Fully 1000W output, all appliances under 1000W can be run. Equipped with 15A outlets, making sure the BougeRV pure sine wave inverter can be run for a long time at 1000W.

Real-Time Remote Monitor

BougeRV pure sine wave inverter is with built-in Bluetooth communication function, users can monitor operating data of the battery and appliances in any time through the BougeRV APP. Bluetooth acceptance range is 18-20M ( barrier-free). Users can control the inverter via the 19.7 feet wired remote controller and can install it in RVs and houses for their needs.

Excellent Pure Sine Wave Inverter

The pure sine wave inverter provides pure power, with a low distortion rate (≤5%), ensuring proper operation of sensitive electronic equipment. Lower power consumption and high conversion efficiency. Pure sine wave inverters keep voltage and current at safe levels, which extends the life of appliances. Pure sine wave inverter always makes less noise than modified sine wave inverter.

Lithium Battery Soft Startup Protection

With lithium battery soft startup protection function, the pure sine wave inverter is compatible better with lithium battery, preventing frequent disconnection. ( NOTE: If the surge current of inverter is greater than the over-discharge current of some lithium batteries, which will trigger the BMS protection function of these lithium batteries. Therefore, inverter will not work.)

Intelligent Temperature Control

With 2 high-speed cooling fans, BougeRV pure sine wave inverter can control temperature intelligently. Fan Cooling Startup: Temperature ≥113℉/ Output ≥50% (1000W).

Reliable Service

BougeRV pure sine wave inverter comes with 18-month tech support that commences from the date of purchase. NOTE: Please check whether all accessories are included when you received the inverter, if not, feel free to get in touch with BougeRV.

Product Specifications

SKU	ISE230
Max Power (Pmax)	200±5%W	Operating Temperature Limits	-40℉ ~ +185℉
Solar Cells Efficiency	23%	Series Fuse Rating	15A
Max. Power Voltage Vmp (V)	17.1±5%V	Temperature Coefficient Pmax	-0.39%/℃
Max. Power Current Imp (A)	11.7±5%A	Temperature Coefficient Voc	-0.33%/℃
Open Circuit Voltage Voc (V)	20.1±5%V	Temperature Coefficient Isc	0.06%/℃
Short Circuit Current (Isc)	12.28±5%A	Dimensions	58.1310.08 inches
Performance Warranty	25 years	Weight	7.05 lbs
Warranty Description	10 Years	Product Type	Curved Solar Panels

SKU	ISE230
Max Power (Pmax)	200±5%W
Solar Cells Efficiency	23%
Max. Power Voltage Vmp (V)	17.1±5%V
Max. Power Current Imp (A)	11.7±5%A
Open Circuit Voltage Voc (V)	20.1±5%V
Short Circuit Current (Isc)	12.28±5%A
Max. System Voltage	1000V DC
Warranty Description	10 Years
Operating Temperature Limits	-40℉ ~ +185℉
Performance Warranty	25 years
Temperature Coefficient Pmax	-0.39%/℃
Temperature Coefficient Voc	-0.33%/℃
Temperature Coefficient Isc	-0.06%/℃
Dimensions	58.1310.08 inches
Weight	7.05 lbs

SKU	ISE217
System Voltage	12V/24V	Battery Type	LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current	30 Amp	Grounding Type	Common Negative
Maximum PV Input Voltage	100V (95V protection, 90V recovery)	Operating Temperature Range	-31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System	450W/12V; 900W/24V	Protection Grade	IP34
Rated Load Current	20 Amp	Bluetooth Communication	built-in bluetooth
Charge Current Ajust Range	0 Amp to 30 Amp	Data Storage	Save the last 200 days of historical data
Battery Operate Voltage Range	8V to 32V	Dimension	7.28L5.23W2.95H inches
No Load Loss	≤10mA	Weight	2.37 lbs

SKU	ISE217
System Voltage	12V/24V
Rated Charging Current	30 Amp
Maximum PV Input Voltage	100V (95V protection, 90V recovery)
Maximum Input of PV System	450W/12V; 900W/24V
Rated Load Current	20 Amp
Charge Current Ajust Range	0 Amp to 30 Amp
Battery Operate Voltage Range	8V to 32V
No Load Loss	≤10mA
Battery Type	LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type	Common Negative
Operating Temperature Range	-31℉ to 149℉ (-35℃ to 65℃)
Protection Grade	IP34
Bluetooth Communication	built-in bluetooth
Data Storage	Save the last 200 days of historical data
Dimension	7.28L5.23W2.95H inches
Weight	2.37 lbs

SKU	ISE252
Rated Output Power	1000W
Peak power	2000W（1s）
Output voltage	110VAC/120VAC(default)
Output frequency	50/60 Hz(default)
Rated input voltage	12VDC
The input voltage ranges	10V-15.5VDC
Output waveform	Pure sine wave
Maximun output efficiency	＞90%
Full Load Efficiency	＞86%
Battery low voltage alarm	10.5VDC (±0.3V)
Over-discharge voltage	10VDC (±0.3V)
Overvoltage	15.5VDC (±0.3V)
Operating ambient temperature range	-40°F~185°F（-40°C~85°C）
Storage temperature range	-40°F~176°F（-40°C~80°C）
Noise	≤60dB
Communication Port	RS485+Inbuilt Bluetooth
Fan start-up temp	≥113℉（45℃）/≥50% load
USB port	18W*1（5V-3A,9V-2A,12V-1.5A）
Protection function	Input over-voltage/ over-discharge protection, output overload/short-circuit protection, and inverter overtemperature protection
Output harmonic component（THD）	<3%
Over-temperature protection recovery	≤167℉（75℃）
No-load Loss	＜0.5A
Over temperature protect	≥203℉（95℃）
Product size	12.235.672.96 in
Weight	5.07 lb

SKU	ISE252
Rated Output Power	1000W
Peak power	2000W（1s）
Output voltage	110VAC/120VAC(default)
Output frequency	50/60 Hz(default)
Rated input voltage	12VDC
The input voltage ranges	10V-15.5VDC
Output waveform	Pure sine wave
Maximun output efficiency	＞90%
Full Load Efficiency	＞86%
Battery low voltage alarm	10.5VDC (±0.3V)
Over-discharge voltage	10VDC (±0.3V)
Overvoltage	15.5VDC (±0.3V)
Operating ambient temperature range	-40°F~185°F（-40°C~85°C）
Storage temperature range	-40°F~176°F（-40°C~80°C）
Noise	≤60dB
Communication Port	RS485+Inbuilt Bluetooth
Fan start-up temp	≥113℉（45℃）/≥50% load
USB port	18W*1（5V-3A,9V-2A,12V-1.5A）
Protection function	Input over-voltage/ over-discharge protection, output overload/short-circuit protection, and inverter overtemperature protection
Output harmonic component（THD）	<3%
Over-temperature protection recovery	≤167℉（75℃）
No-load Loss	＜0.5A
Over temperature protect	≥203℉（95℃）
Product size	12.235.672.96 in
Weight	5.07 lb

SKU	ISE212N
Nominal Voltage	12.8V
Nominal Capacity	100Ah
Charge Voltage	14.4~14.6V
Energy	1280Wh
Standard charge	20A (0.2C, recommend charge current)
Maximum charge	100A（1.0C）
Maximum Continuous Charge Current	100A (25°C, 77°F)
Maximum Continuous Discharge Current	100A (1C)
Maximum Discharge Current	330A (2.5s)
Over-Charging Protection Voltage	14.6V
Over-Charging Recovery Voltage	14.0V
Over-Discharging Protection Voltage	8.8V
Over-Discharging Protection Recovery Voltage	10.4V
Charge Temperature Range	0°C~65°C (32°F~149°F)
Discharge Temperature Range	-20°C~75°C (-4°F~167°F)
Cycle Life	4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection	0°C (32°F), after the low temperature protection is activated, the battery temperature returns to 2°C (35.6°F) for recharging.
Short Term	-20°C~45°C (-4°F~113°F)
Long Term	10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack	48V(4S)
Maximum Parallel Current Of Battery Pack	400Ah(4P)
Charge Method	CC/CV
Item Demension	L10.24W6.61H8.23
Item Weight	24.25 lbs
Protection Rating	IP65
Product Warranty	5 Years

SKU	ISE212N
Nominal Voltage	12.8V
Nominal Capacity	100Ah
Charge Voltage	14.4~14.6V
Energy	1280Wh
Standard charge	20A (0.2C, recommend charge current)
Maximum charge	100A（1.0C）
Maximum Continuous Charge Current	100A (25°C, 77°F)
Maximum Continuous Discharge Current	100A (1C)
Maximum Discharge Current	330A (2.5s)
Over-Charging Protection Voltage	14.6V
Over-Charging Recovery Voltage	14.0V
Over-Discharging Protection Voltage	8.8V
Over-Discharging Protection Recovery Voltage	10.4V
Charge Temperature Range	0°C~65°C (32°F~149°F)
Discharge Temperature Range	-20°C~75°C (-4°F~167°F)
Cycle Life	4000 times (25°C, 0.2C, 100%DOD）
Low Temperature Charging Protection	0°C (32°F), after the low temperature protection is activated, the battery temperature returns to 2°C (35.6°F) for recharging.
Short Term	-20°C~45°C (-4°F~113°F)
Long Term	10°C~35°C (50°F~95°F)
Maximum Series Voltage Of Battery Pack	48V(4S)
Maximum Parallel Current Of Battery Pack	400Ah(4P)
Charge Method	CC/CV
Item Demension	L10.24W6.61H8.23
Item Weight	24.25 lbs
Protection Rating	IP65
Product Warranty	5 Years

User Manual

Download Arch 200 Watt Fiberglass Curved Solar Panel User Manual

Download Sunflow 30A MPPT Solar Charge Controller 12V/24V User Manual

Download 1000W 12V Pure Sine Wave Inverter User Manual

Download 12V 1280Wh/100Ah LiFePO4 Battery User Manual

Reviews

FAQ

A1: If you order two panels, they will come in two separate packages. BougeRV will provide you with a tracking number once they have been shipped out.

A2: Unfortunately, the 200 watt solar panel does not come with a Y-branch parallel connector. However, you can search for "Solar Y Branch Connector 1 to 3" on our website if you need one.

A3: Yes, the IP67 connector is waterproof.

A4: The advantages of 9BB solar cells are that they have less internal resistance loss than 5BB solar cells, can reduce the impact of micro-cracks, and have a thinner busbar and larger light-receiving area, resulting in more power output.

A5: The low output power of 200watt solar panels is mainly affected by low light intensity, unsuitable light angles, and shadow occlusion. To prevent shadows, adjust the solar panels and make them point directly at the sun during daily use, and clean the solar panel regularly to remove obstructions such as bird droppings, dust, and garbage.

A7: This 180W (200W) solar panel is larger than an ordinary 100W panel and has more solar cells. We developed this product with power output and the scene in mind, and we hope it meets your expectations. The output voltage of solar panels is affected by the light angle (vertical irradiation angle is the most efficient), light intensity (greater intensity results in higher output), and shadow exposure (larger shadows reduce panel output).

The amperage output of a 200 watt solar panel depends on the voltage rating of the panel. You can calculate by this formula: Amps = Watts / Volts. For example, if the panel has a voltage rating of 12 Volts, then the amperage output would be Amps = 200 Watts / 12 Volts = 16.67 Amps.

Yes, a 200 watt solar panel can run a refrigerator, but it depends on the size of your refrigerator. It may not be sufficient for a large family refrigerator. It can run a 12V mini fridge.

You can use a 200 watt solar panel to run a variety of small to medium-sized appliances and electronics such as laptops, LED lights, LCD TVs, coffee makers, a radio, a mini projector, and even a microwave.

Yes, you can mix 100 watt and 200 watt solar panels, but it may result in a decrease in productivity and energy production. It is recommended to use panels of the same wattage to optimize the performance of the solar system.

The physical size of a 200 watt solar panel can vary depending on the manufacturer and the specific model. The dimension of BougeRV 200 watt solar panel is 58.46x27.76x1.38 inches.
