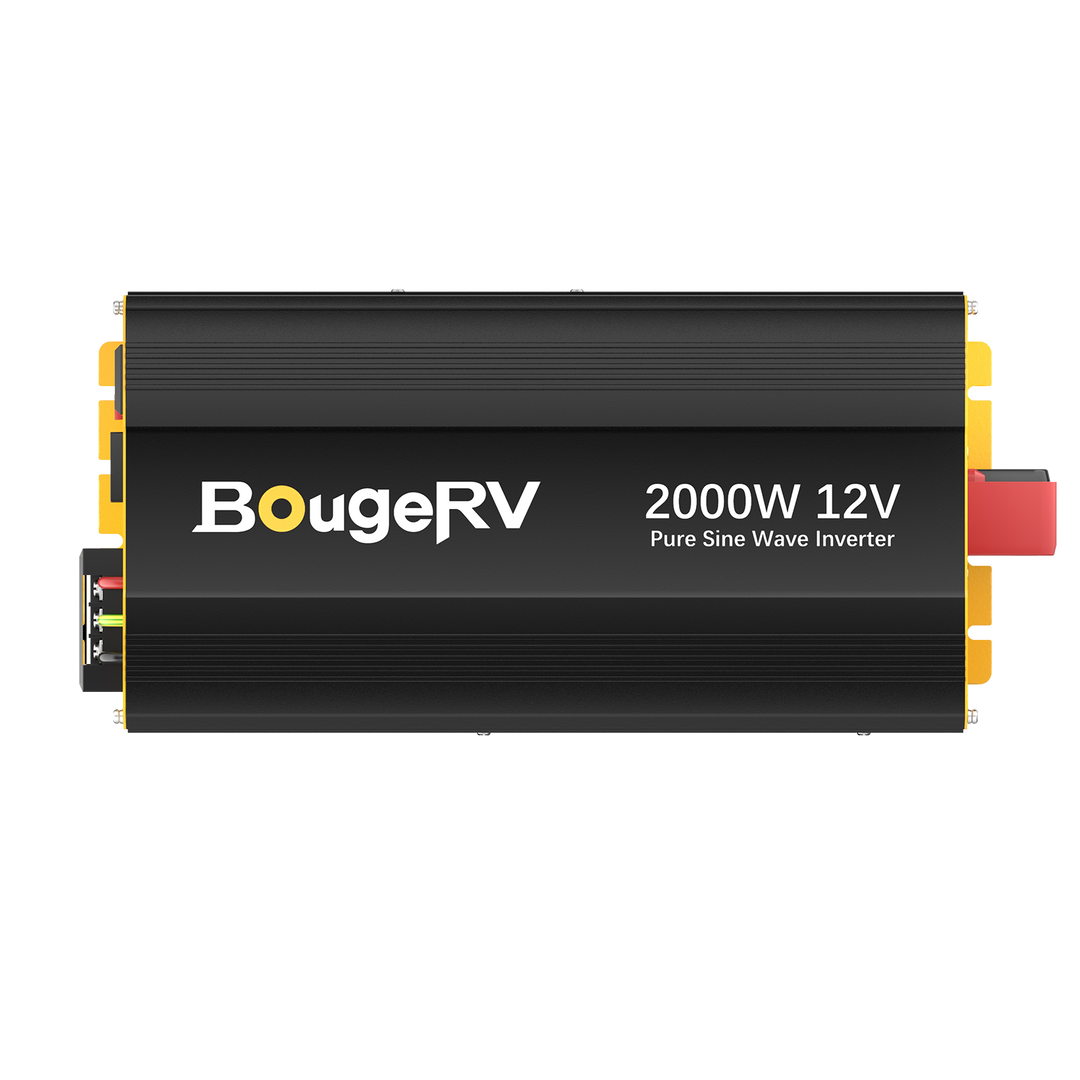

Product Specifications
| SKU | ISE253 |
|---|---|

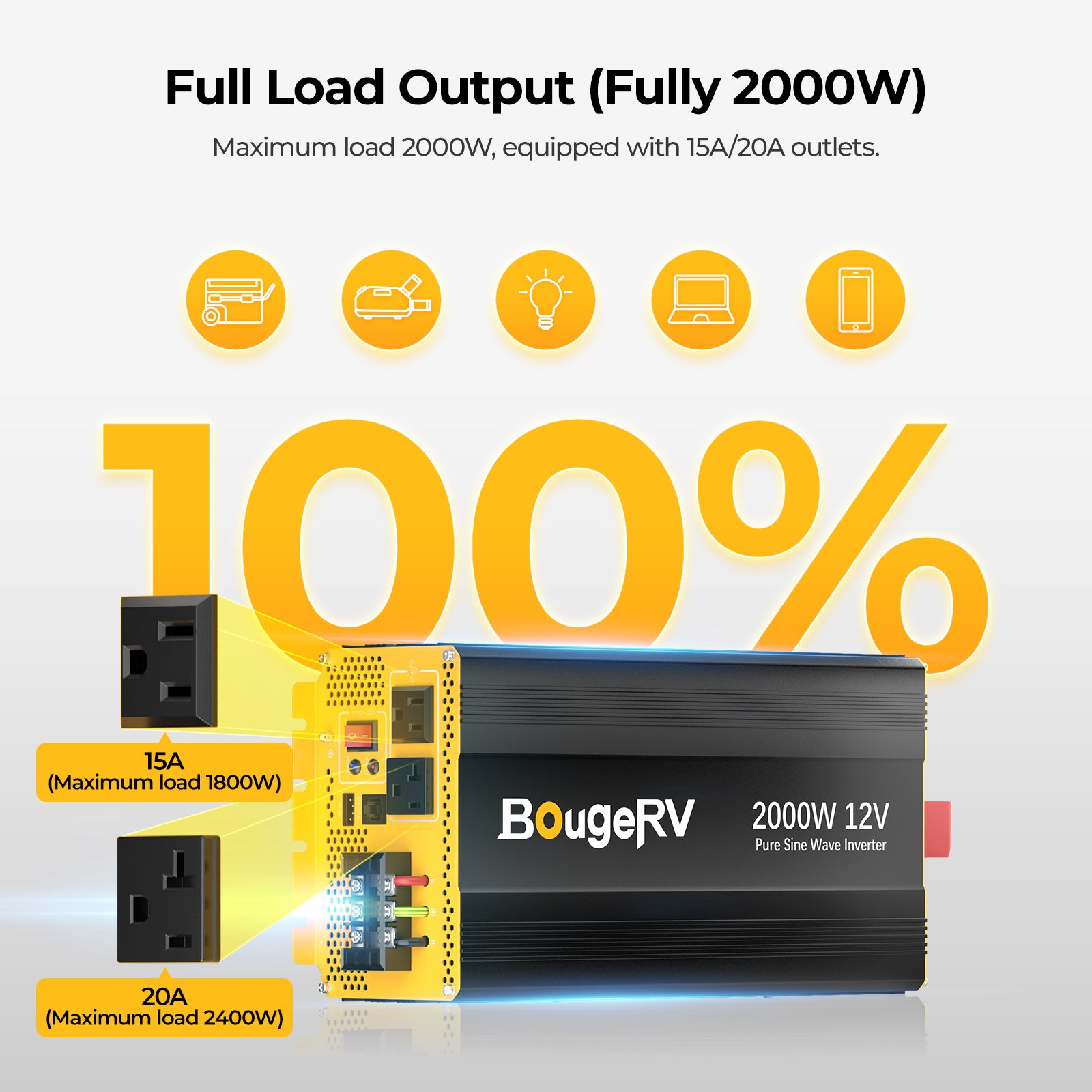

| Rated Output Power | 2000W |
|
Peak power
|
4000W（1s）
|
|
Output voltage
|
110VAC/120VAC(default)
|
|
Output frequency
|
50/60 Hz(default)
|
|
Rated input voltage
|
12VDC
|
|
The input voltage ranges
|
10V-15.5VDC
|
|

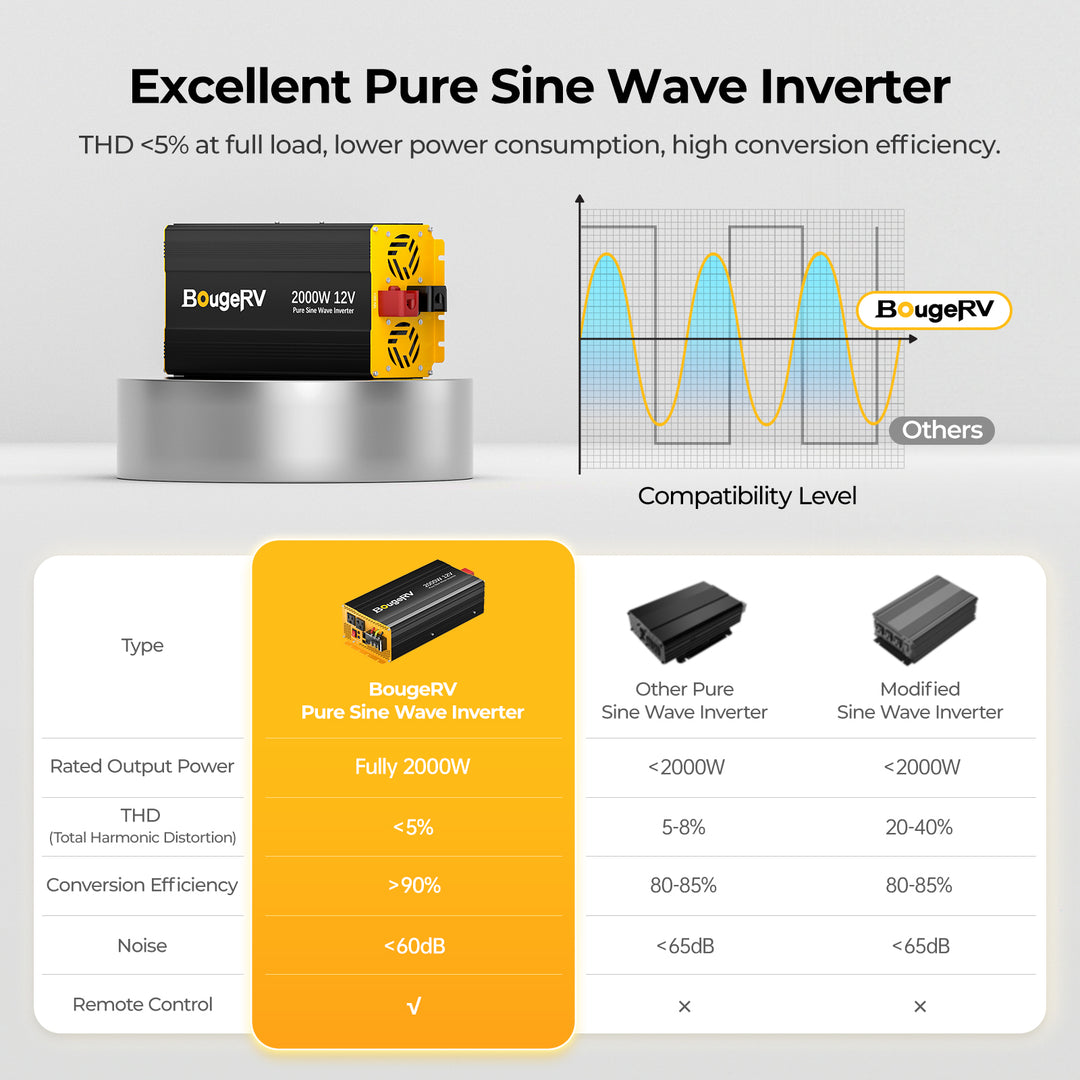

Output waveform
|
Pure sine wave
|
|
Maximun output efficiency
|
＞90%
|
|
Full Load Efficiency
|
＞86%
|
|
Battery low voltage alarm
|
10.5VDC (±0.3V)
|
|
Over-discharge voltage
|
10VDC (±0.3V)
|
|
Overvoltage
|
15.5VDC (±0.3V)
|
|
Operating ambient temperature range
|
-40°F~185°F（-40°C~85°C）
|
|
Storage temperature range
|
-40°F~176°F（-40°C~80°C）
|
|
Noise
|
≤60dB
|
|

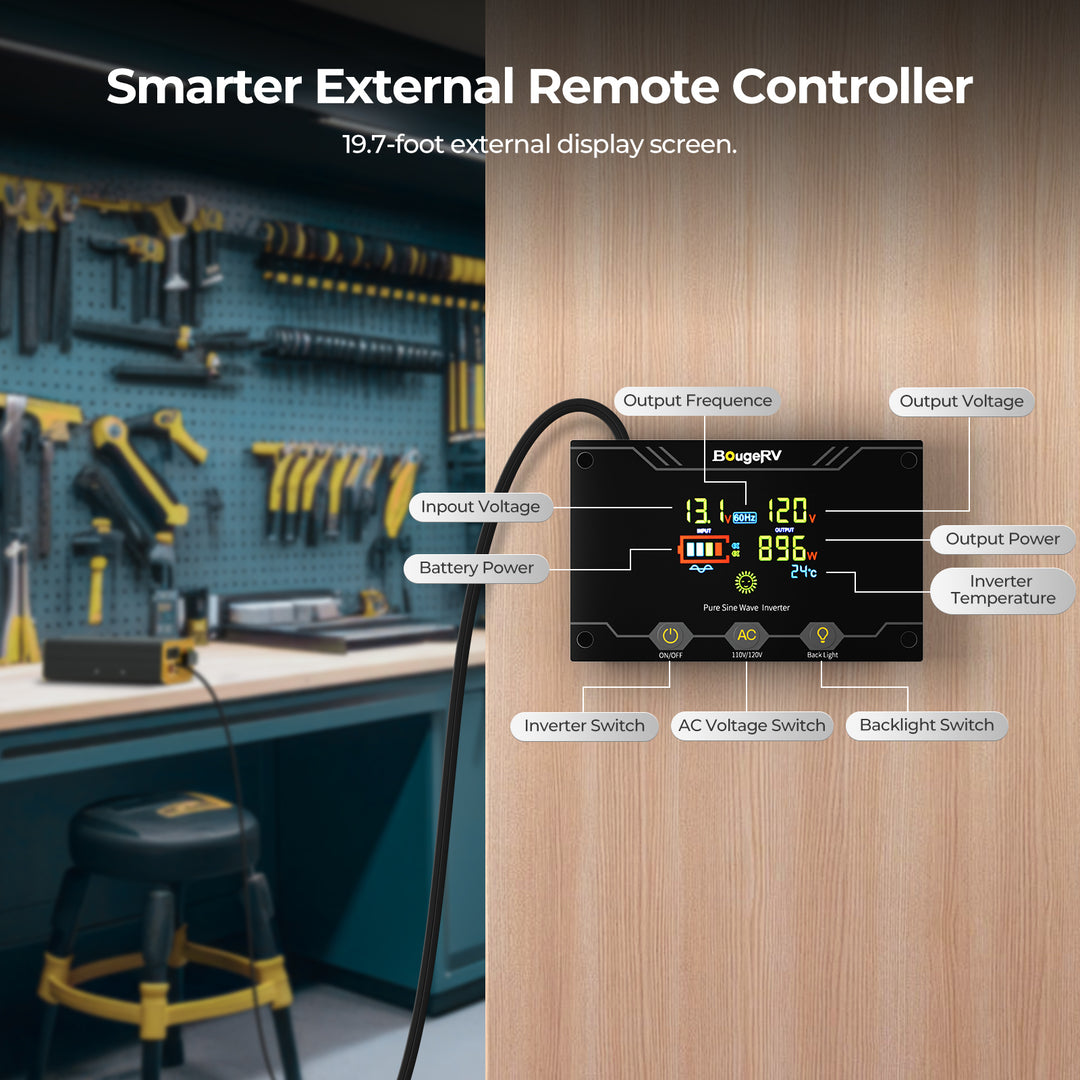

Communication Port
|
RS485+Inbuilt Bluetooth
|
|
Fan start-up temp
|
≥113℉（45℃）/≥50% load
|
|
USB port
|
18W*1（5V-3A,9V-2A,12V-1.5A）
|
|

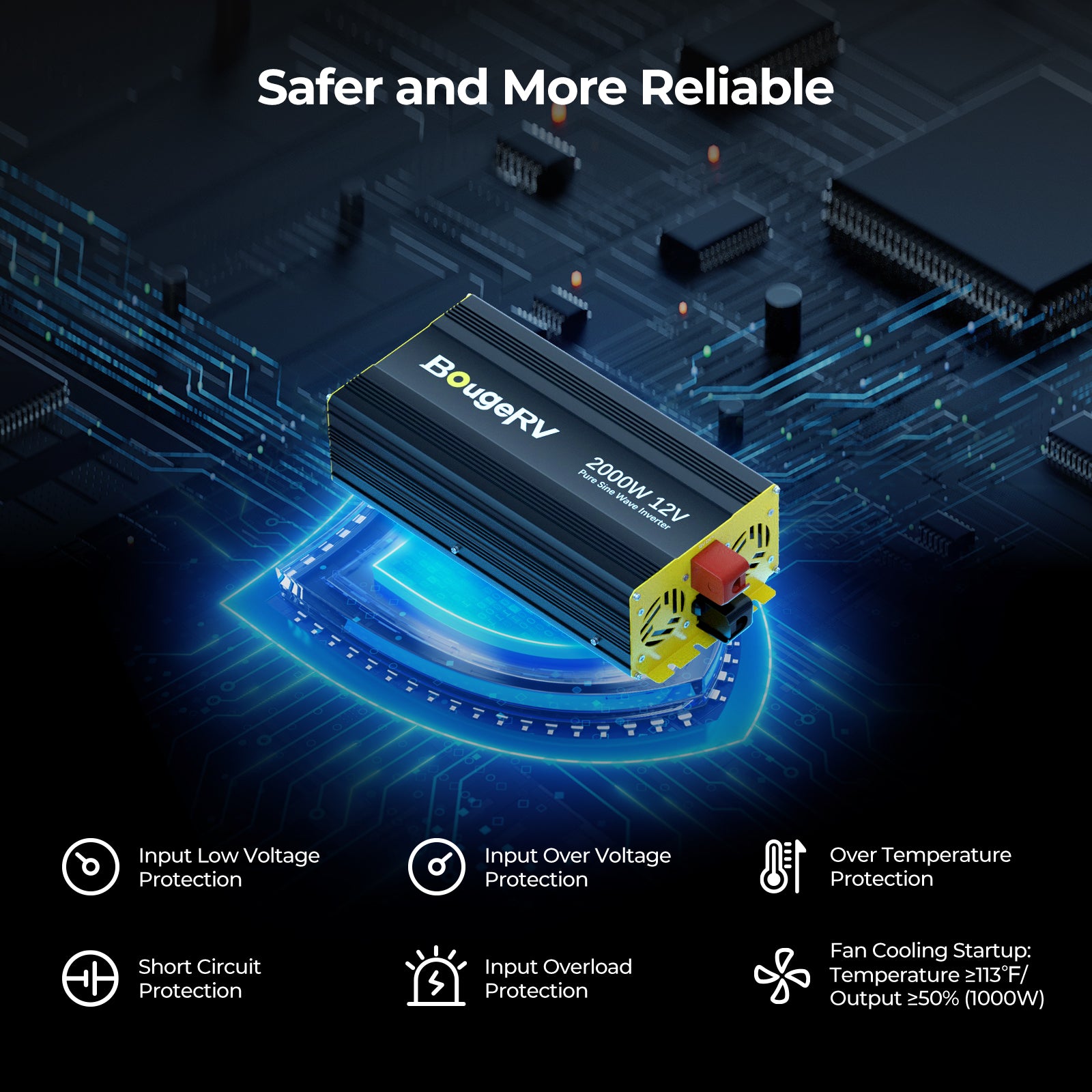

Protection function
|
Input over-voltage/
over-discharge protection,
output overload/short-circuit protection,
and inverter overtemperature protection
|
|
Output harmonic component（THD）
|
<4%
|
|
Over-temperature protection recovery
|
≤158℉（70℃）
|
|
No-load Loss
|
＜0.7A
|
|
Over temperature protect
|
≥176℉（80℃）
|
|
Product size
|
375.61*6.65*3.98 in
|
|
Weight
|
8.6 lb
|
| SKU | ISE253 |
|---|---|
| Rated Output Power | 2000W |
|
Peak power
|
4000W（1s）
|
|
Output voltage
|
110VAC/120VAC(default)
|
|
Output frequency
|
50/60 Hz(default)
|
|
Rated input voltage
|
12VDC
|
|
The input voltage ranges
|
10V-15.5VDC
|
|
Output waveform
|
Pure sine wave
|
|
Maximun output efficiency
|
＞90%
|
|
Full Load Efficiency
|
＞86%
|
|
Battery low voltage alarm
|
10.5VDC (±0.3V)
|
|
Over-discharge voltage
|
10VDC (±0.3V)
|
|
Overvoltage
|
15.5VDC (±0.3V)
|
|
Operating ambient temperature range
|
-40°F~185°F（-40°C~85°C）
|
|
Storage temperature range
|
-40°F~176°F（-40°C~80°C）
|
|
Noise
|
≤60dB
|
|
Communication Port
|
RS485+Inbuilt Bluetooth
|
|
Fan start-up temp
|
≥113℉（45℃）/≥50% load
|
|
USB port
|
18W*1（5V-3A,9V-2A,12V-1.5A）
|
|
Protection function
|
Input over-voltage/
over-discharge protection,
output overload/short-circuit protection,
and inverter overtemperature protection
|
|
Output harmonic component（THD）
|
<4%
|
|
Over-temperature protection recovery
|
≤158℉（70℃）
|
|
No-load Loss
|
＜0.7A
|
|
Over temperature protect
|
≥176℉（80℃）
|
|
Product size
|
375.61*6.65*3.98 in
|
|
Weight
|
8.6 lb
|
| SKU | ISE253 |
|---|---|
| Rated Output Power | 2000W |
|
Peak power
|
4000W（1s）
|
|
Output voltage
|
110VAC/120VAC(default)
|
|
Output frequency
|
50/60 Hz(default)
|
|
Rated input voltage
|
12VDC
|
|
The input voltage ranges
|
10V-15.5VDC
|
|
Output waveform
|
Pure sine wave
|
|
Maximun output efficiency
|
＞90%
|
|
Full Load Efficiency
|
＞86%
|
|
Battery low voltage alarm
|
10.5VDC (±0.3V)
|
|
Over-discharge voltage
|
10VDC (±0.3V)
|
|
Overvoltage
|
15.5VDC (±0.3V)
|
|
Operating ambient temperature range
|
-40°F~185°F（-40°C~85°C）
|
|
Storage temperature range
|
-40°F~176°F（-40°C~80°C）
|
|
Noise
|
≤60dB
|
|
Communication Port
|
RS485+Inbuilt Bluetooth
|
|
Fan start-up temp
|
≥113℉（45℃）/≥50% load
|
|
USB port
|
18W*1（5V-3A,9V-2A,12V-1.5A）
|
|
Protection function
|
Input over-voltage/
over-discharge protection,
output overload/short-circuit protection,
and inverter overtemperature protection
|
|
Output harmonic component（THD）
|
<4%
|
|
Over-temperature protection recovery
|
≤158℉（70℃）
|
|
No-load Loss
|
＜0.7A
|
|
Over temperature protect
|
≥176℉（80℃）
|
|
Product size
|
375.61*6.65*3.98 in
|
|
Weight
|
8.6 lb
|
User Manual
Reviews
FAQ
1.The appliances power shall not be greater than rated power of inverter.
2.The battery should be 12V.
3.Red to positive pole, black to negative pole.
4.This inverter can not be parallel connected.
5.Do not extend the inverter power cable.
No. This inverter can only work with a 12V battery system.
No. The BougeRV DC 12V to AC 120V inverter can only convert DC power to AC power.
