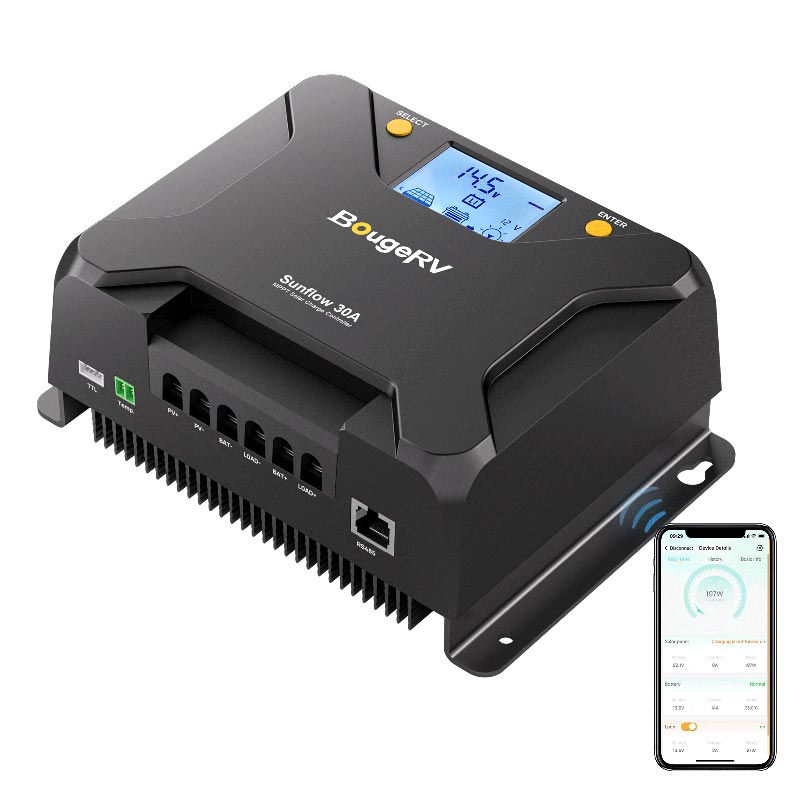

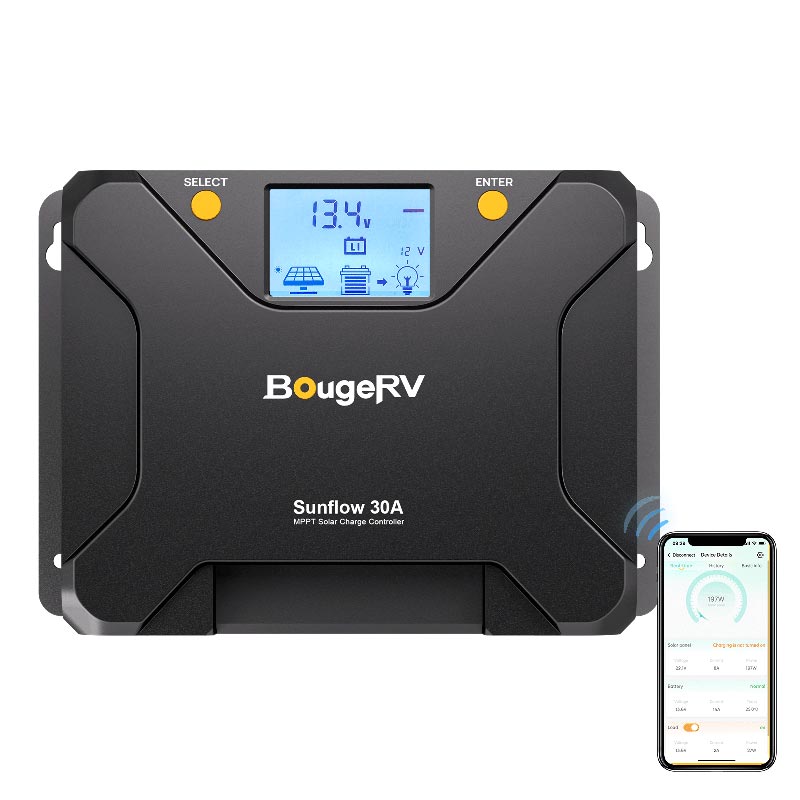

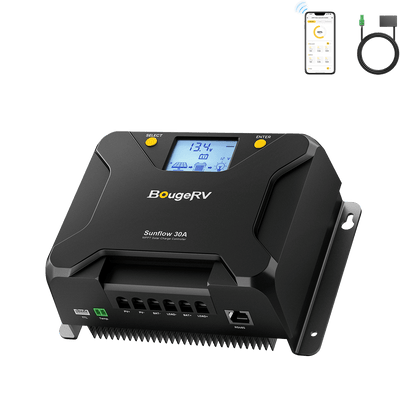

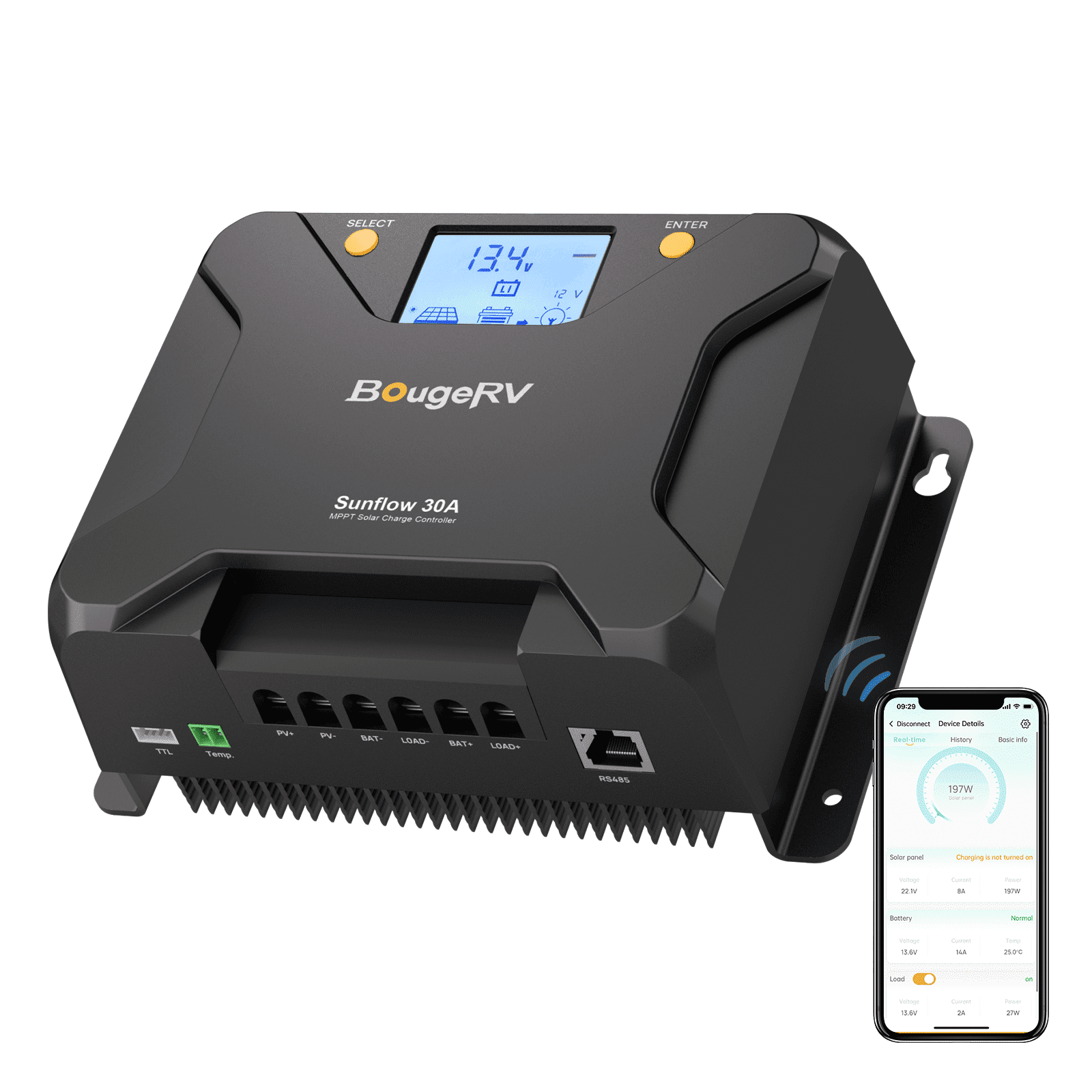

Name: BougeRV Sunflow 30A MPPT Solar Charge Controller 12V/24V
Brand: BougeRV
SKU: ISE217N
Price: 129.99 USD
Availability: InStock

BougeRV Sunflow 30A MPPT Solar Charge Controller 12V/24V

FEATURES PRODUCT VIDEO

(118)

$129.99

With advanced Maximum Power Point Tracking (MPPT) technology, the BougeRV Sunflow 30A MPPT solar charge controller ensures that your solar panels are operating at their peak efficiency. It also includes innovative low-temp cut-off features to protect your lithium batteries. Maximize the potential of your solar panels and switch to clean, renewable energy by upgrading your solar system with this high-performance charge controller.

HIGHLIGHTS

FULLY COMPATIBLE WITH LiFePO4

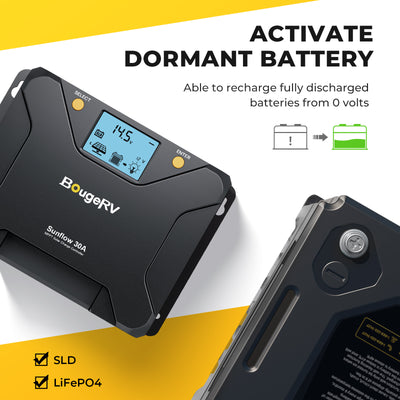

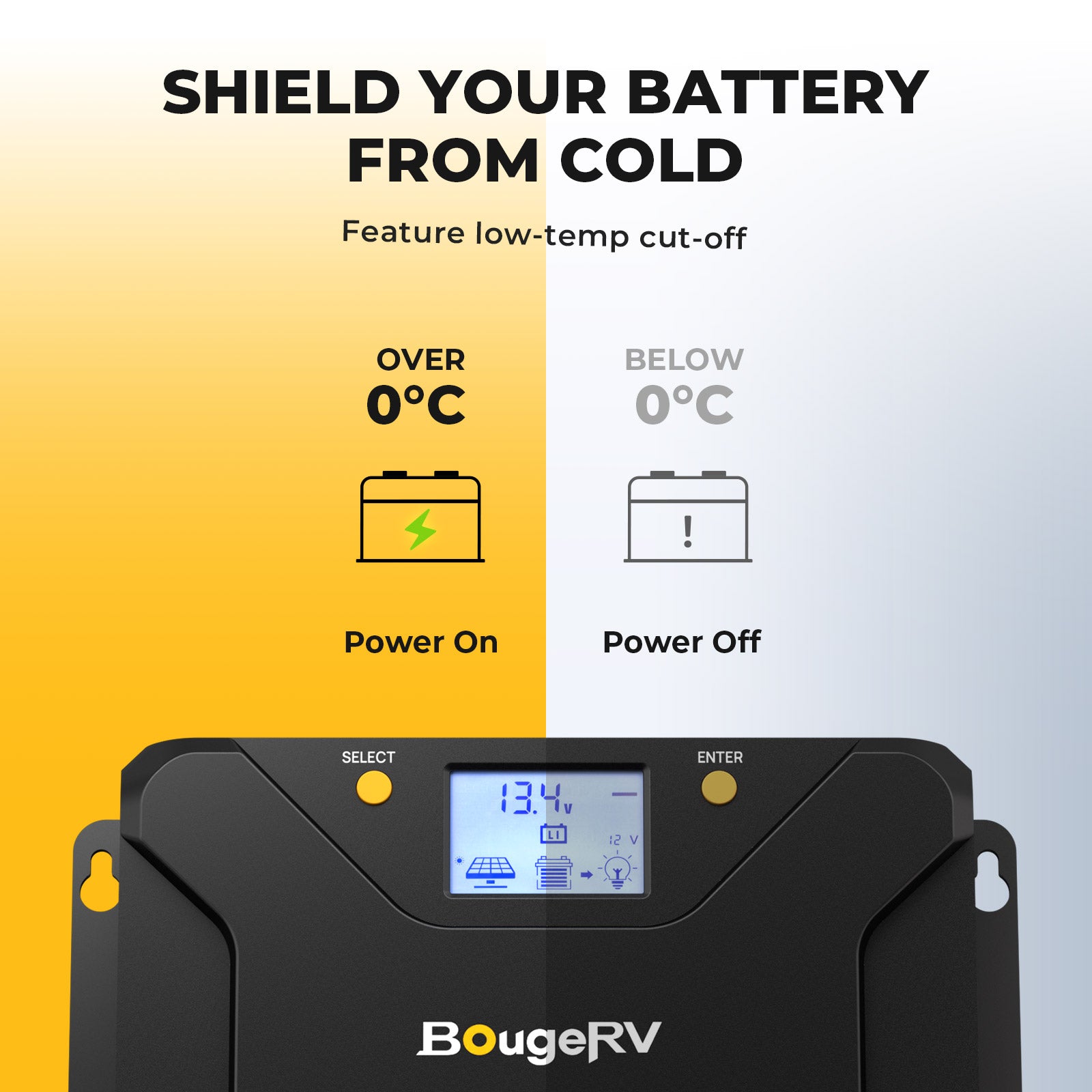

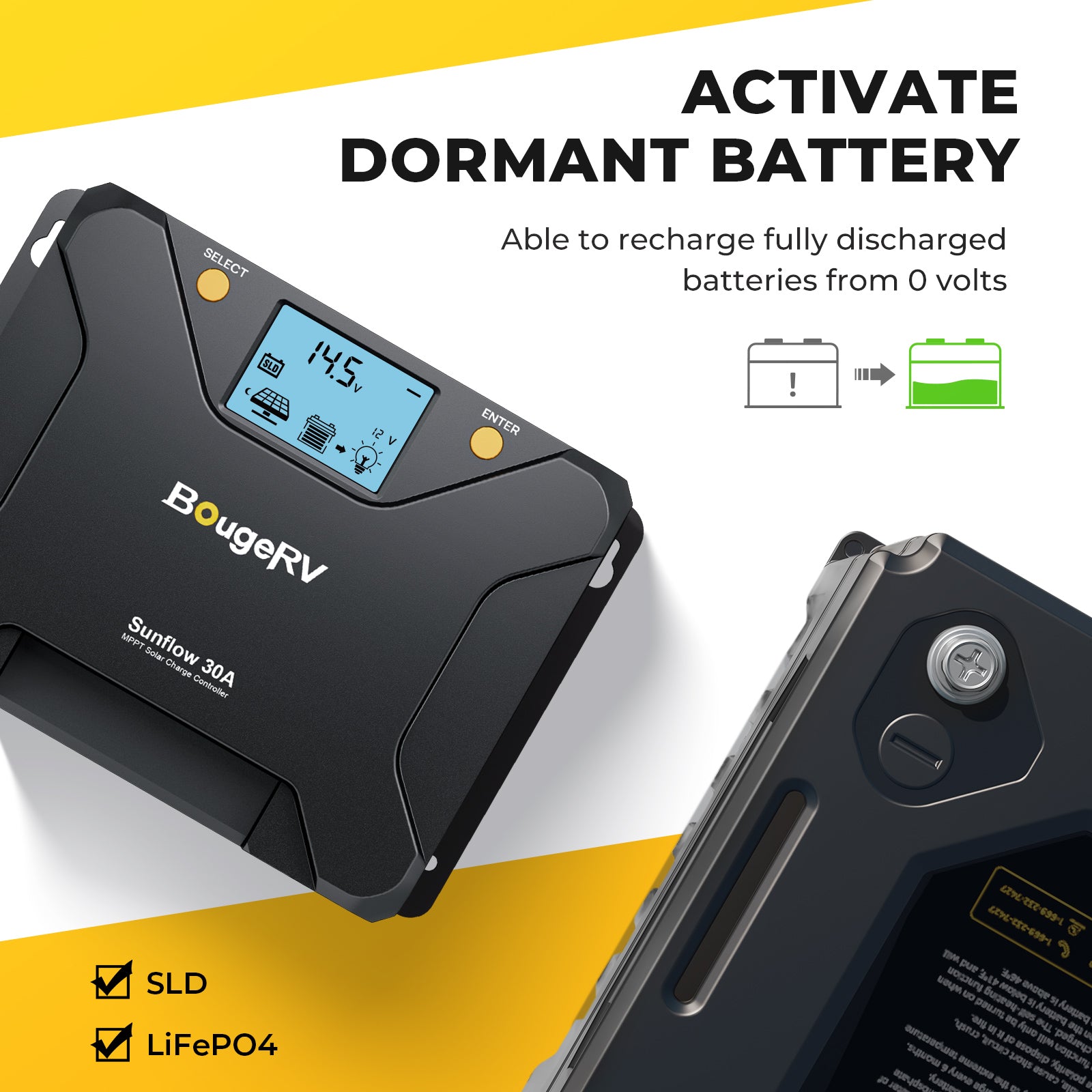

BougeRV Sunflow 30A MPPT solar charge controller features low-temp cut-off charging (below 32℉) to protect your LiFePO4 battery, it can also restart or activate dormant 12V or 24V LiFePO4 batteries turned off due to short circuits or over-discharged.

SMART LCD AND APP CONTROL

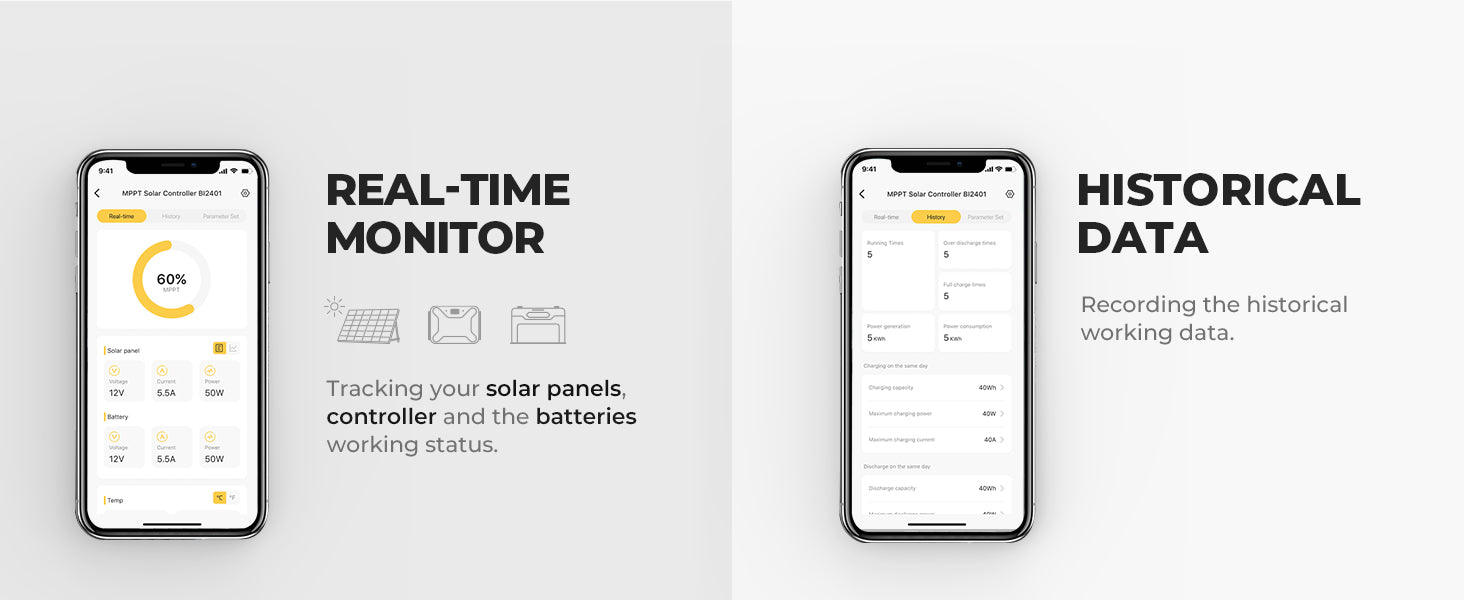

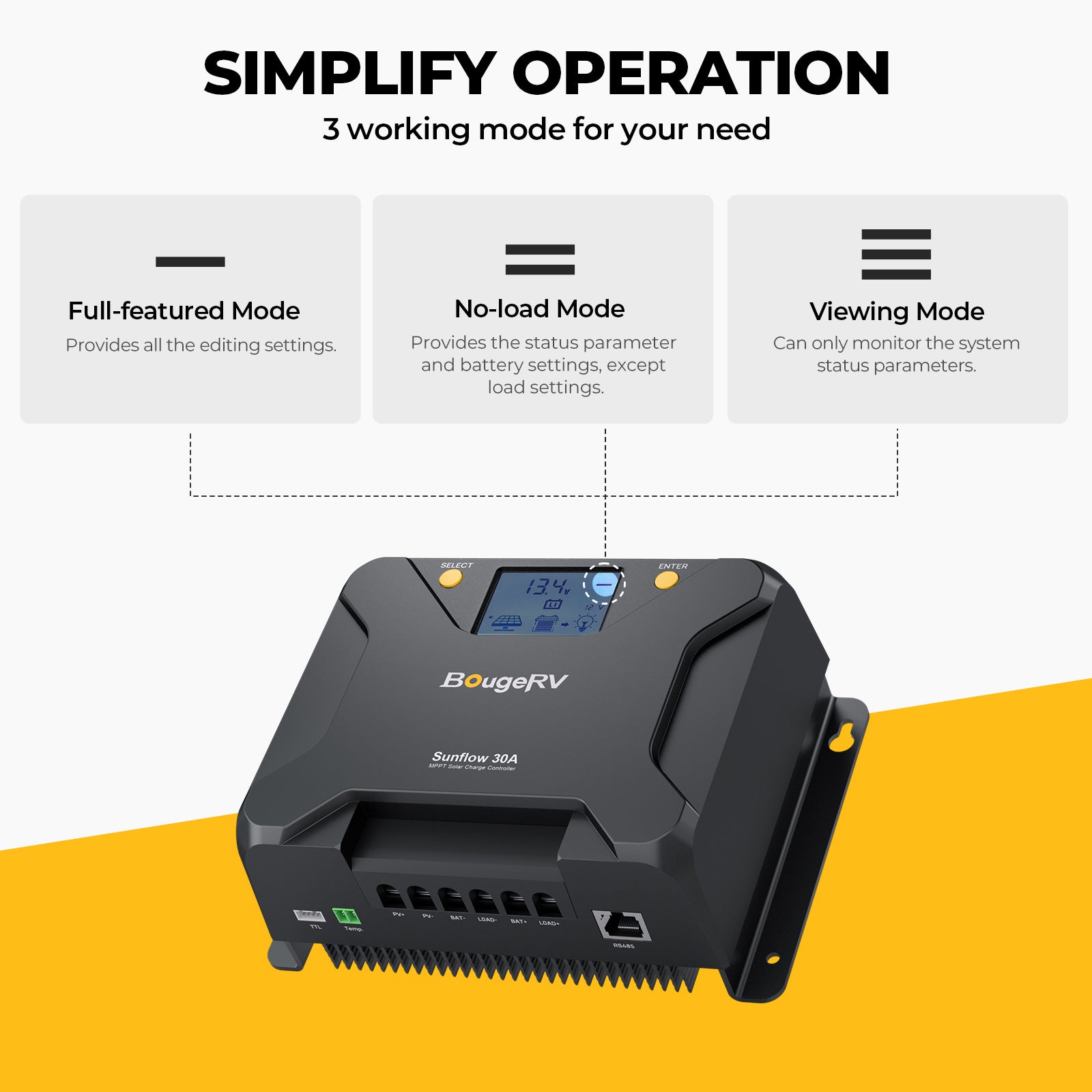

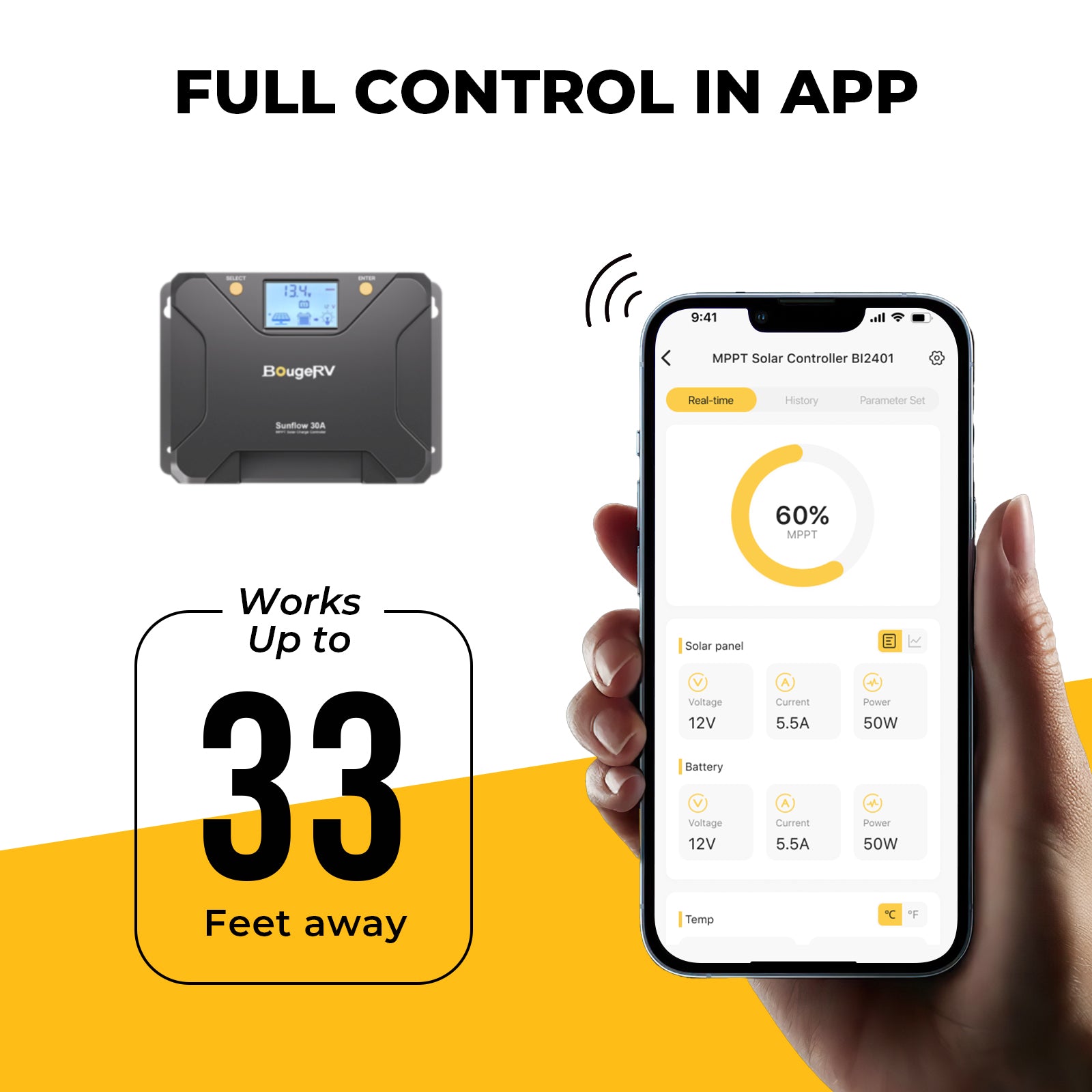

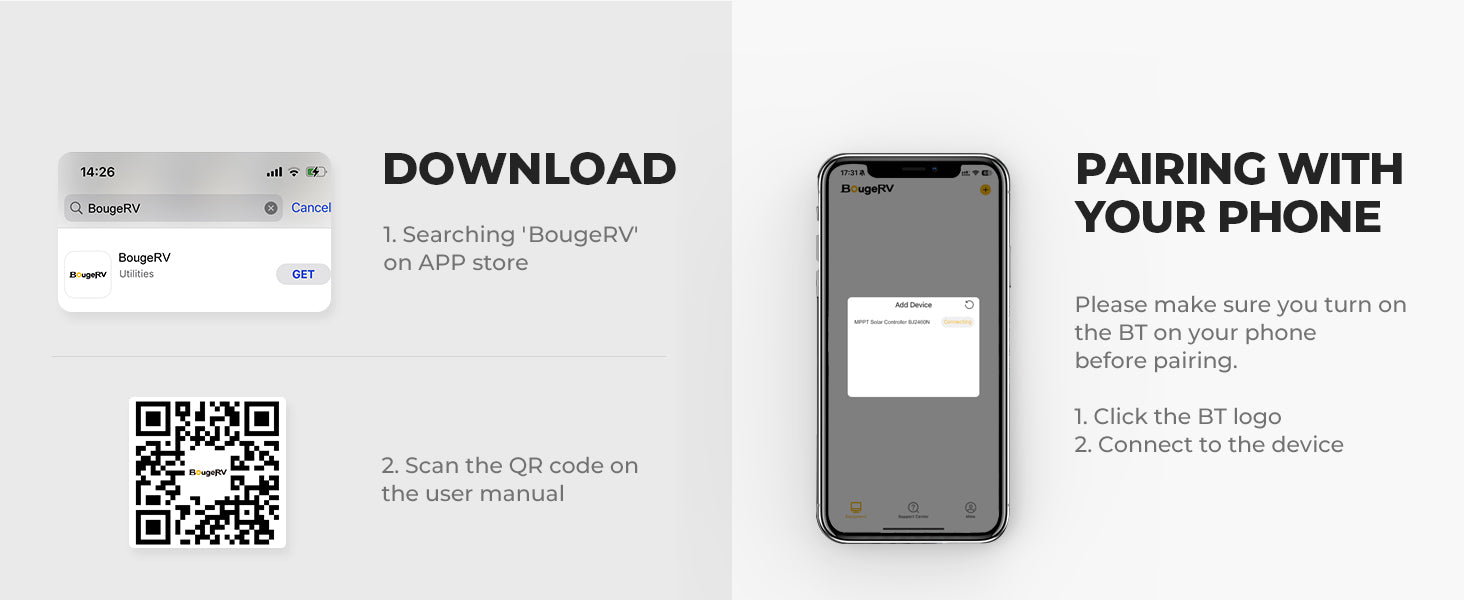

Sunflow 30 amp MPPT controller also features a remote app control, the Bluetooth range is up to 32 feet. Stay informed with the “Solar” APP that provides the solar panel, battery and load status. The controller provides 3 modes for display operation, full-featured mode, no-load mode, and viewing mode, you can select the full-featured mode to modify all adjustable parameters via the screen button if you don't want to download an app.

HIGH-EFFICIENCY CHARGE

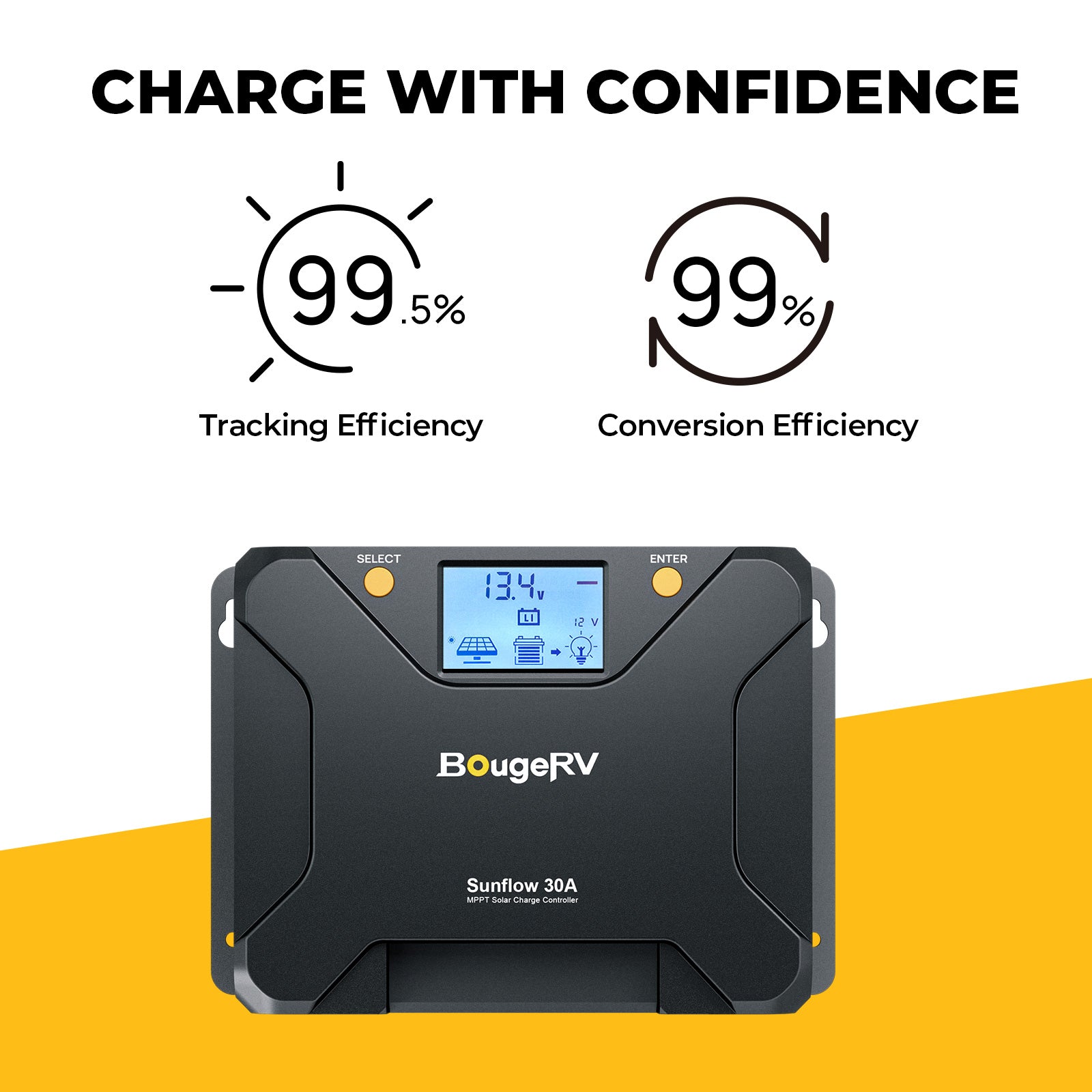

BougeRV Sunflow 30 Amp MPPT controller can adjust the charge current from 0A to 30A. BougeRV charge controller for solar panels, its high tracking efficiency is up to 99.5%, peak conversion efficiency is up to 99%, maximizing the solar panels' output. Adopting quality aluminum heat sink, the battery regulator can dissipate heat better and minimize the power lost under full load working.

ACTIVE SHIELD

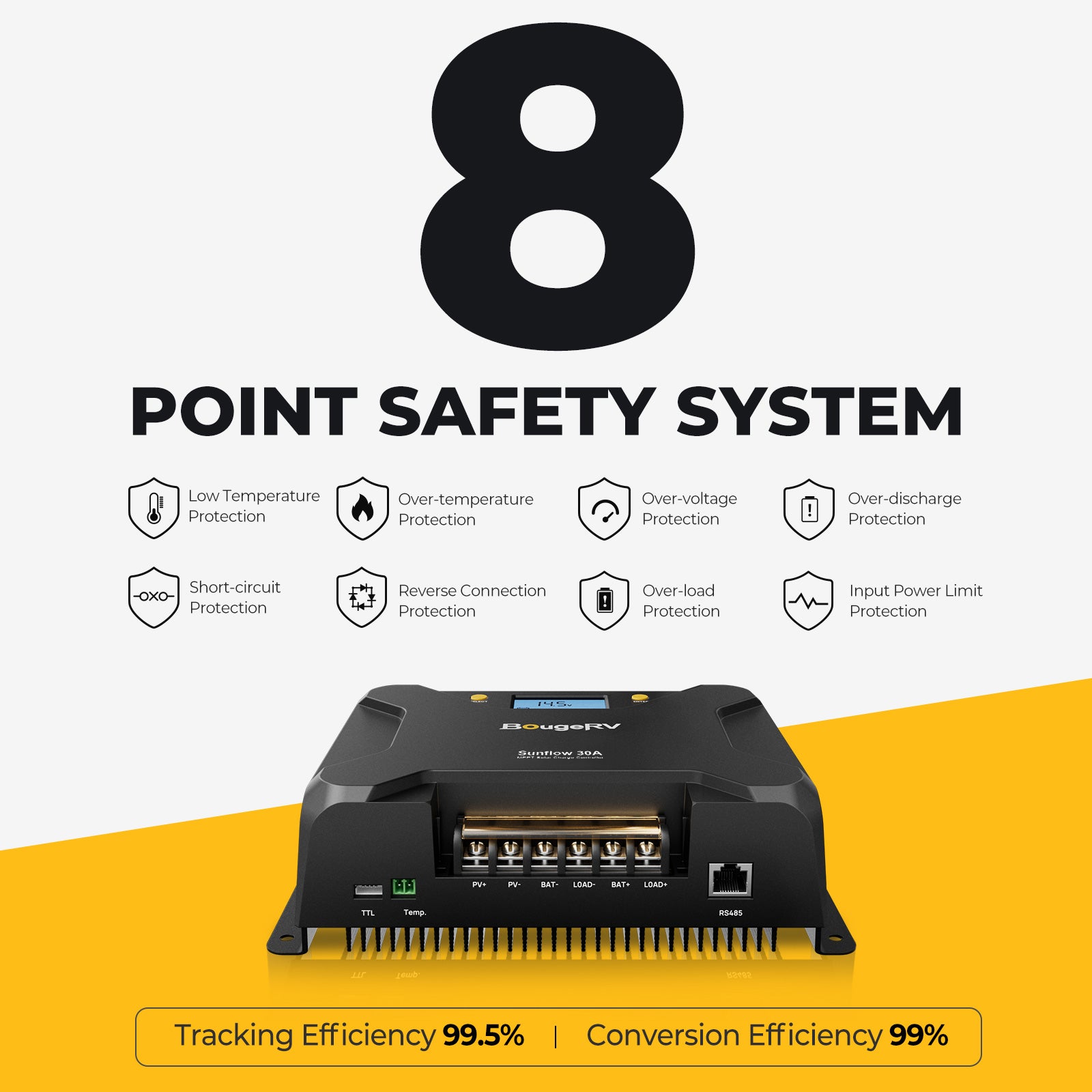

Certified by CE and RoHS. BougeRV 30A MPPT renewable energy controller features a dual MOS circuit to prevent the reverse current and reduce the heat in operation. With 6 protections, over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention circuit, flow backward of current protections.

Product Specifications

SKU	ISE217
System Voltage	12V/24V	Battery Type	LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current	30 Amp	Grounding Type	Common Negative
Maximum PV Input Voltage	100V (95V protection, 90V recovery)	Operating Temperature Range	-31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System	450W/12V; 900W/24V	Protection Grade	IP34
Rated Load Current	20 Amp	Bluetooth Communication	built-in bluetooth
Charge Current Ajust Range	0 Amp to 30 Amp	Data Storage	Save the last 200 days of historical data
Battery Operate Voltage Range	8V to 32V	Dimension	7.28L5.23W2.95H inches
No Load Loss	≤10mA	Weight	2.37 lbs
Product Warranty	18-month	Product Type	Solar Charge Controller

SKU	ISE217
System Voltage	12V/24V
Rated Charging Current	30 Amp
Maximum PV Input Voltage	100V (95V protection, 90V recovery)
Maximum Input of PV System	450W/12V; 900W/24V
Rated Load Current	20 Amp
Charge Current Ajust Range	0 Amp to 30 Amp
Battery Operate Voltage Range	8V to 32V
No Load Loss	≤10mA
Battery Type	LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type	Common Negative
Operating Temperature Range	-31℉ to 149℉ (-35℃ to 65℃)
Protection Grade	IP34
Bluetooth Communication	built-in bluetooth
Data Storage	Save the last 200 days of historical data
Dimension	7.28L5.23W2.95H inches
Weight	2.37 lbs
Product Warranty	18-month

BougeRV Sunflow 30A MPPT Solar Charge Controller 12V/24V

HIGHLIGHTS

SMART LCD AND APP CONTROL

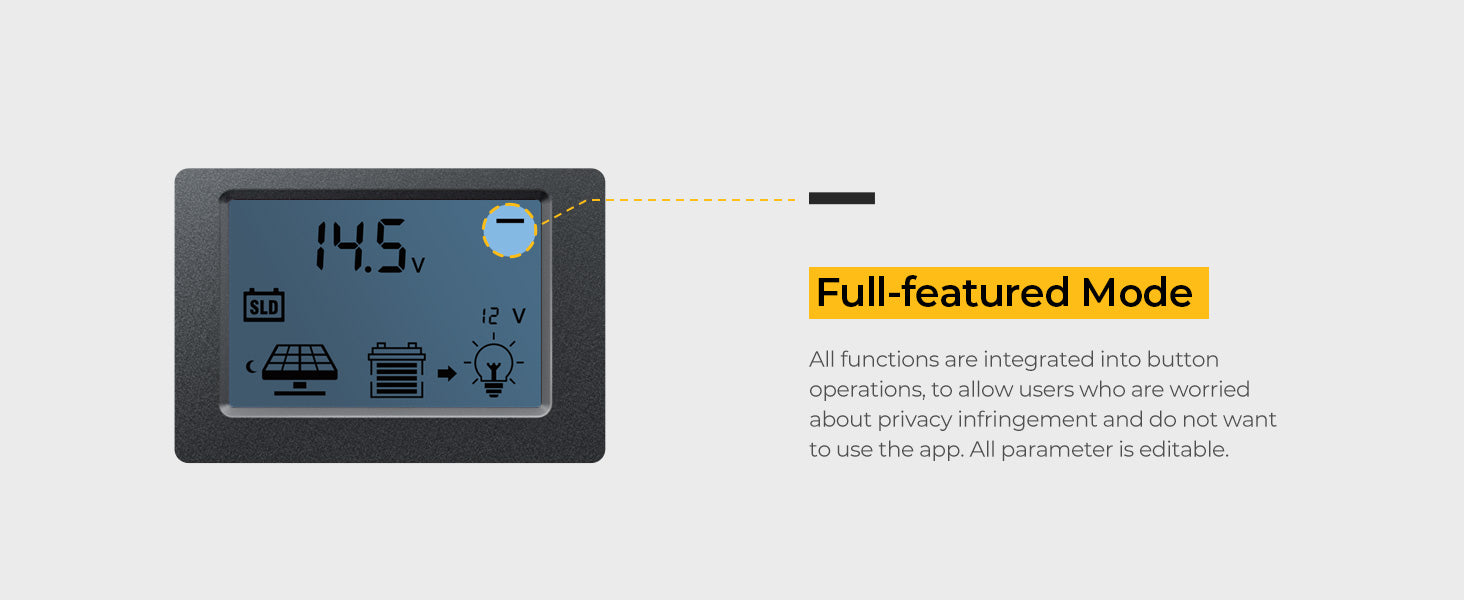

Full Featured Mode

Full Featured Mode

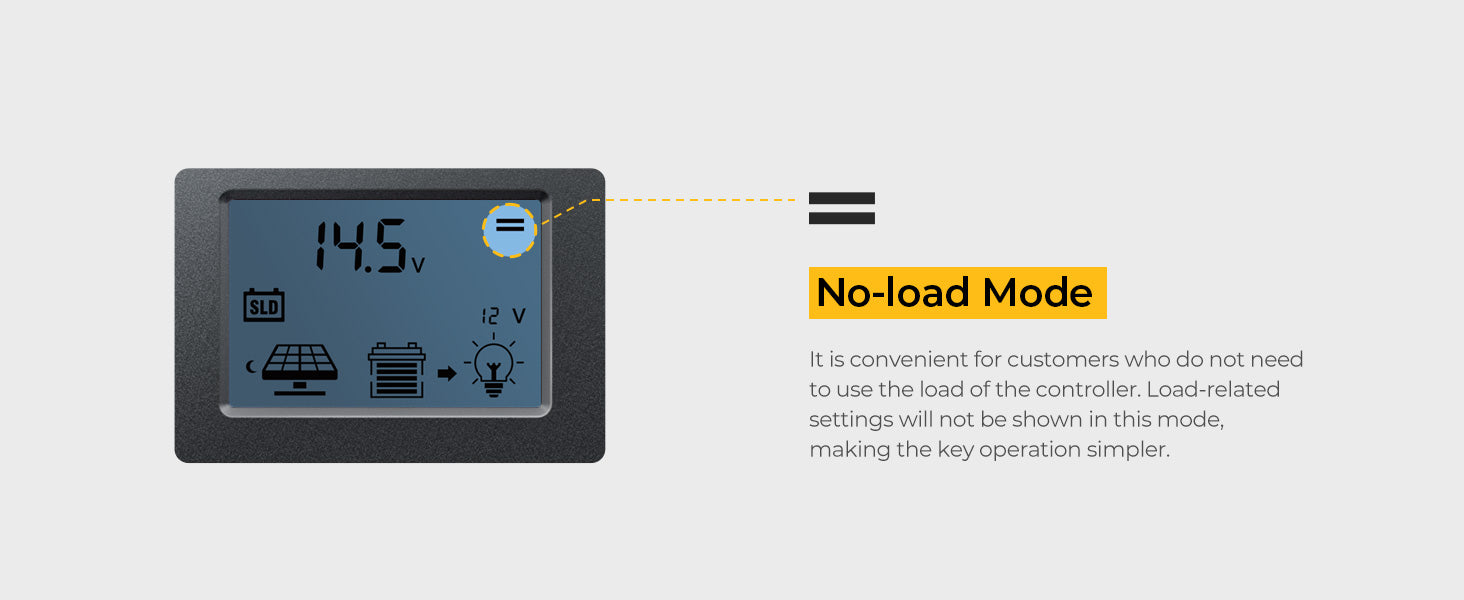

No Load Mode

No Load Mode

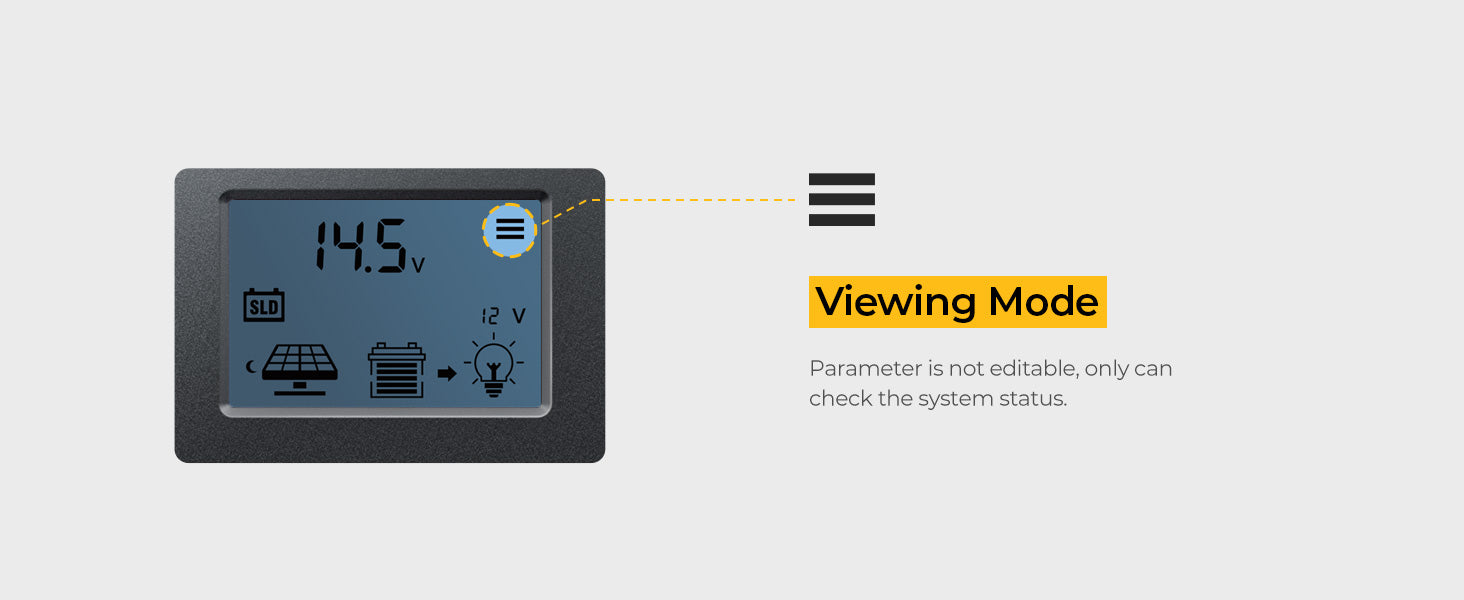

Viewing Mode

Viewing Mode

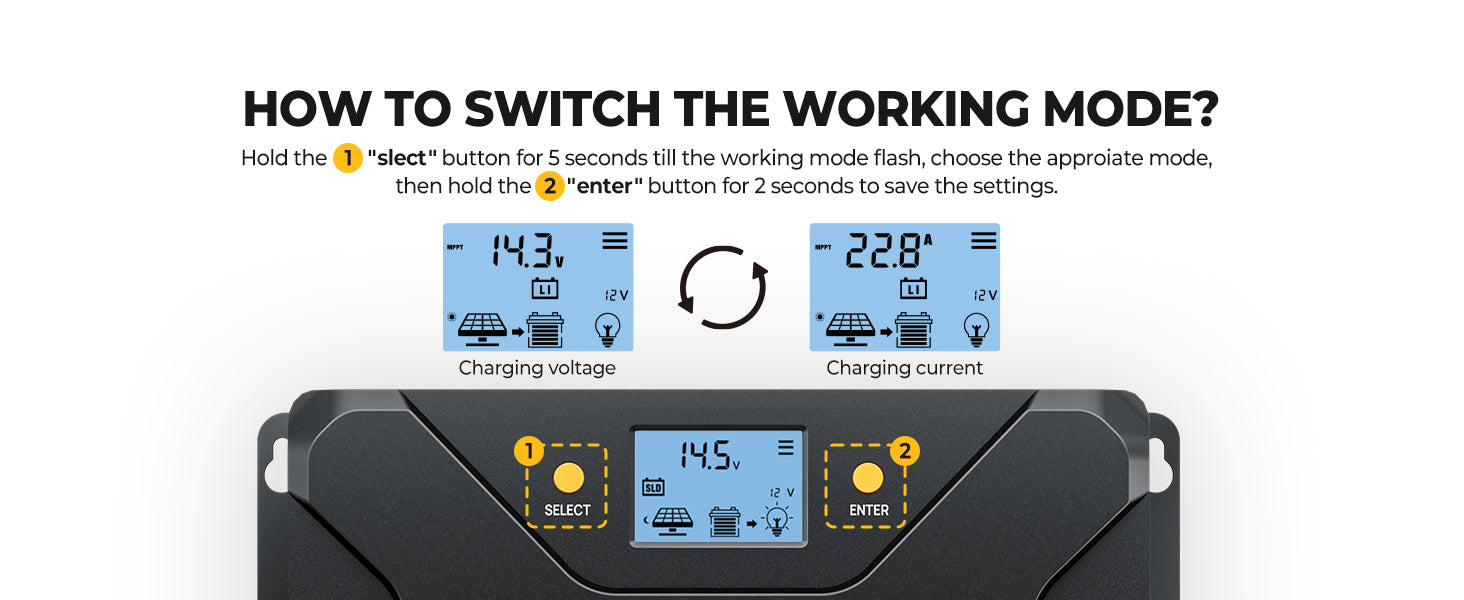

How to Switch

How to Switch
