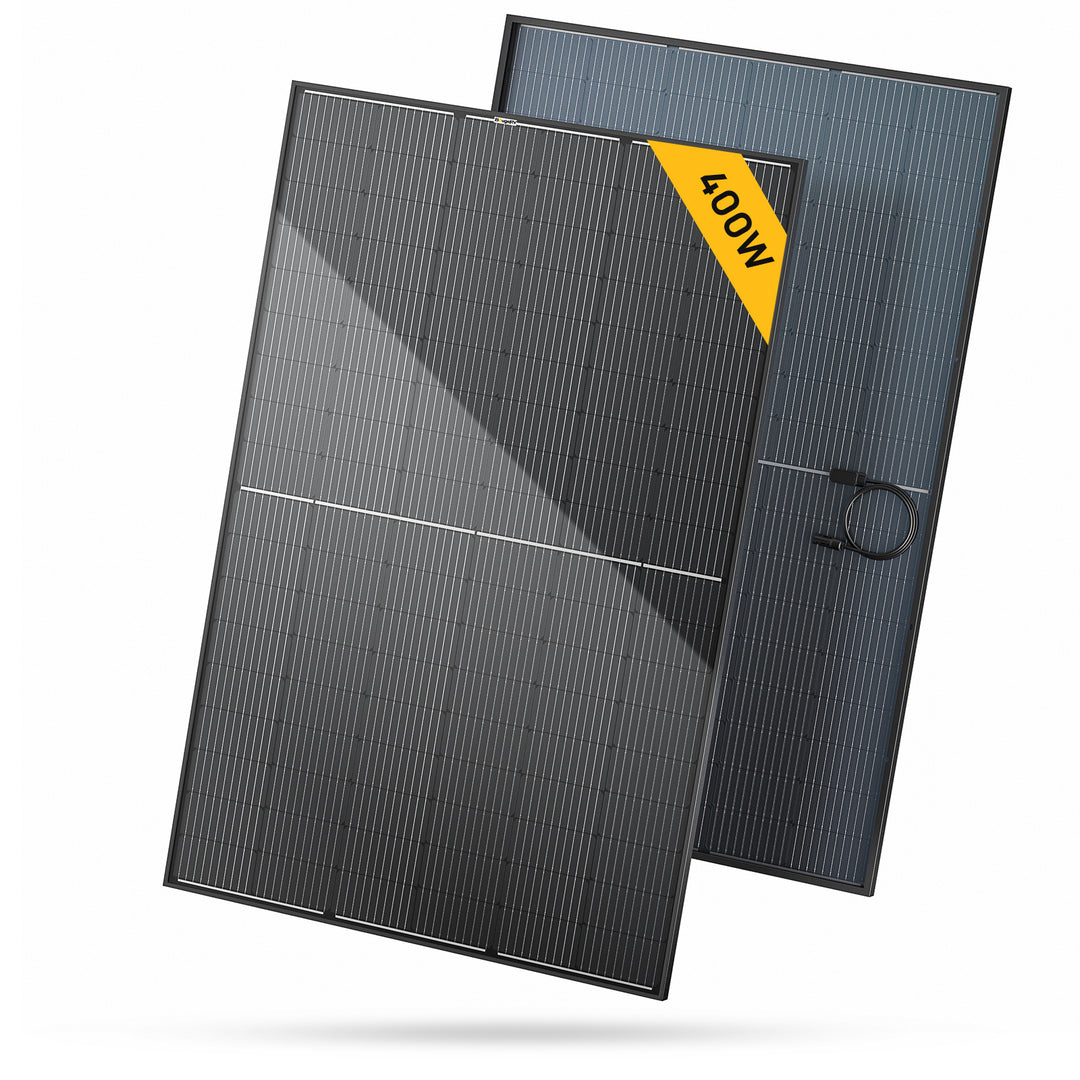

400 Watt Solar Panel

Name: BougeRV 400 Watt 12V/24V Rigid Bifacial 10BB Mono Solar Panel
Brand: BougeRV
SKU: ISE240M
Price: 529.99 USD
Availability: InStock

(88)

$529.99

BougeRV 400W bifacial solar panel is an exceptional choice for those seeking a high-performance solar panel. The 10BB cell design utilizes ten busbars to collect and transmit the electrical current generated by the solar cells, resulting in a significant boost in overall performance. This efficient 400-watt solar panel is user-friendly, easy to install, and provides maximum output.

Read more » Fold up »

Buy More, Save More

1PC

🔥 2PCS ($524.99 /Each)

3PCS ($521.99 /Each)

4PCS ($519.99 /Each)

Quantity

20

[{"id":45025978351832,"title":"1PC","option1":"1PC","option2":null,"option3":null,"sku":"ISE240M","requires_shipping":true,"taxable":true,"featured_image":{"id":41137302438104,"product_id":8248746934488,"position":1,"created_at":"2024-04-24T11:14:26+08:00","updated_at":"2024-04-24T11:14:30+08:00","alt":null,"width":1600,"height":1600,"src":"\/\/www.bougerv.com\/cdn\/shop\/files\/3333.png?v=1713928470","variant_ids":[45025978351832]},"available":true,"name":"BougeRV 400 Watt 12V\/24V Rigid Bifacial 10BB Mono Solar Panel - 1PC","public_title":"1PC","options":["1PC"],"price":52999,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"6938607466858","featured_media":{"alt":null,"id":34173842784472,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.bougerv.com\/cdn\/shop\/files\/3333.png?v=1713928470"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45025978384600,"title":"🔥 2PCS ($524.99 \/Each)","option1":"🔥 2PCS ($524.99 \/Each)","option2":null,"option3":null,"sku":"ISE240M-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BougeRV 400 Watt 12V\/24V Rigid Bifacial 10BB Mono Solar Panel - 🔥 2PCS ($524.99 \/Each)","public_title":"🔥 2PCS ($524.99 \/Each)","options":["🔥 2PCS ($524.99 \/Each)"],"price":105599,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"6938607467596","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45025978417368,"title":"3PCS ($521.99 \/Each)","option1":"3PCS ($521.99 \/Each)","option2":null,"option3":null,"sku":"ISE240M-3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BougeRV 400 Watt 12V\/24V Rigid Bifacial 10BB Mono Solar Panel - 3PCS ($521.99 \/Each)","public_title":"3PCS ($521.99 \/Each)","options":["3PCS ($521.99 \/Each)"],"price":157799,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"6938607467602","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45025978450136,"title":"4PCS ($519.99 \/Each)","option1":"4PCS ($519.99 \/Each)","option2":null,"option3":null,"sku":"ISE240M-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BougeRV 400 Watt 12V\/24V Rigid Bifacial 10BB Mono Solar Panel - 4PCS ($519.99 \/Each)","public_title":"4PCS ($519.99 \/Each)","options":["4PCS ($519.99 \/Each)"],"price":209599,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"6938607467619","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pay With Ease:

Features

HIGHLIGHTS

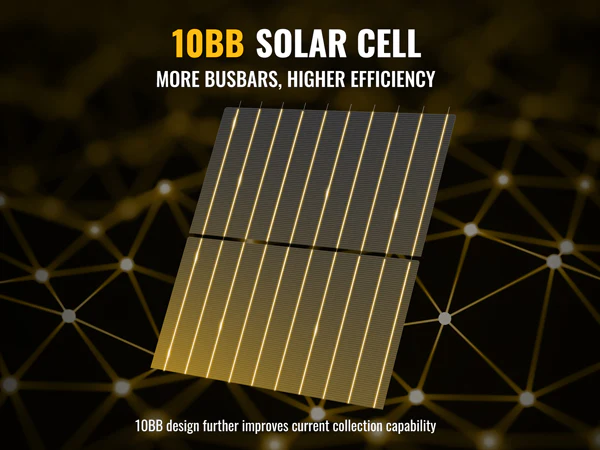

10BB Cell Design

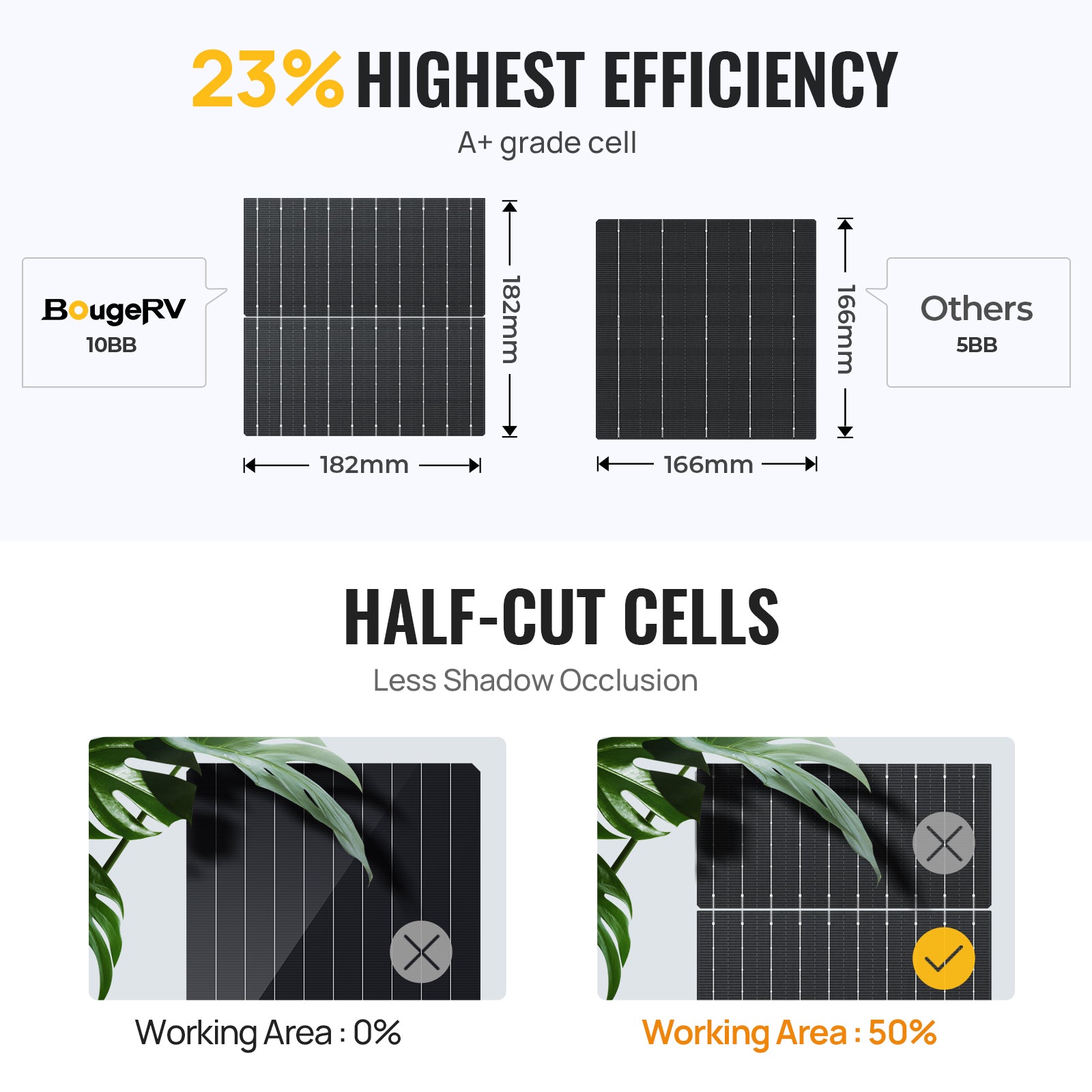

BougeRV Bifacial 400W solar panel uses the high-level 10BB cell design which has a 23% highest conversion rate. Makes the solar panel have a longer service life. Increase the cell receiving surface, thinner ribbon reduces the covered area by 22%. Also, it can charge a 12V/24 battery or charge a 48V battery by wiring several solar panels in series.

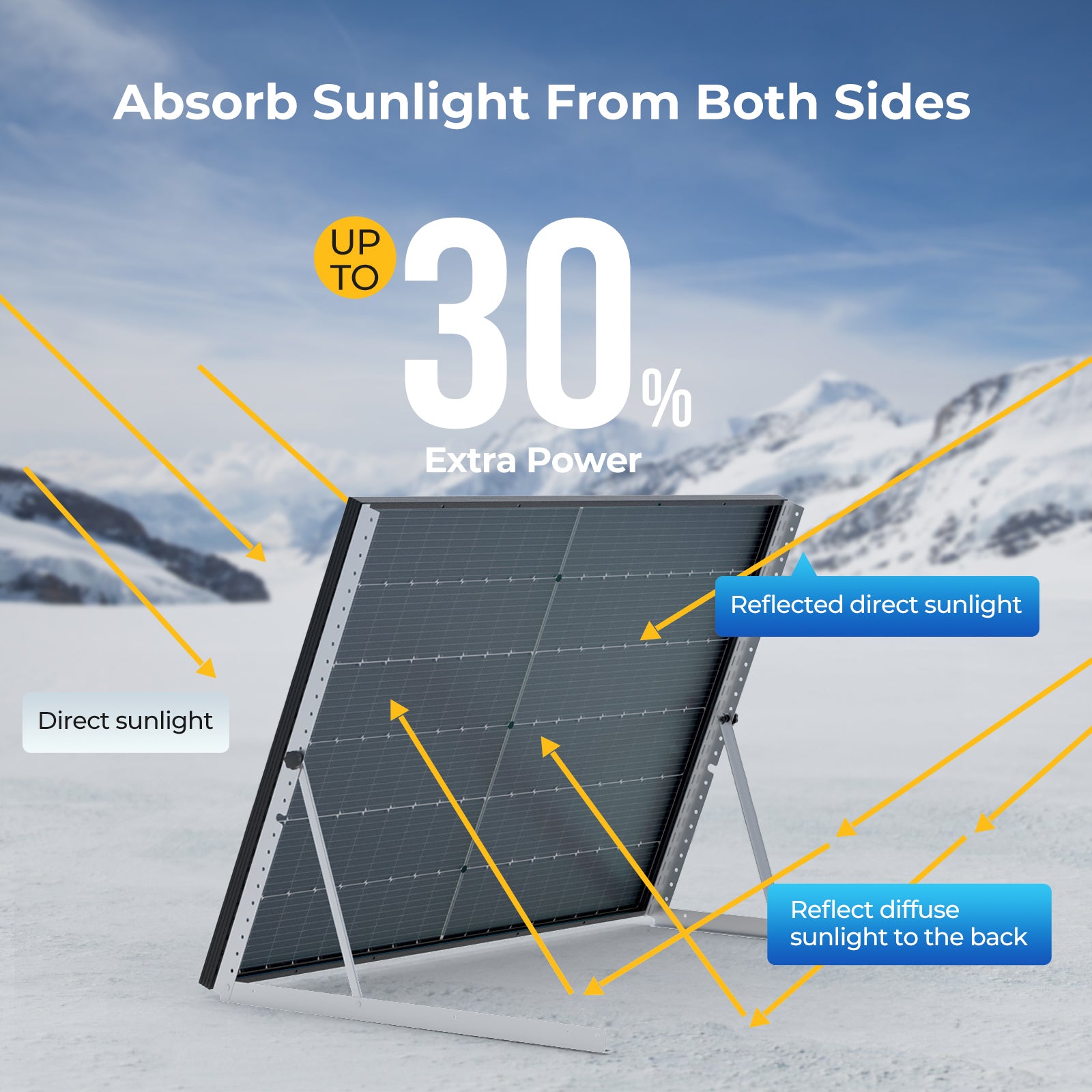

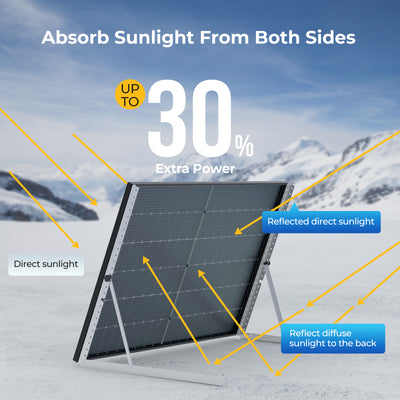

Bafacial Back Increases the solar output by 30%

Instead of having an opaque back, BougeRV bifacial solar panels feature a transparent backside, allowing it to absorb solar energy from both sides. It can not only absorb direct sunlight but also absorb refracted sunlight and diffuse sunlight, which makes the output better.

300 watt solar panels with A+ class solar cell

Made of Class A Solar Cell.

No visible defects and any microcracks, BougeRV 300 watts solar panel passes the strict EL test. While other class B and C cells will have obvious cracks. The grade of the cell determines the actual output of the solar panel.

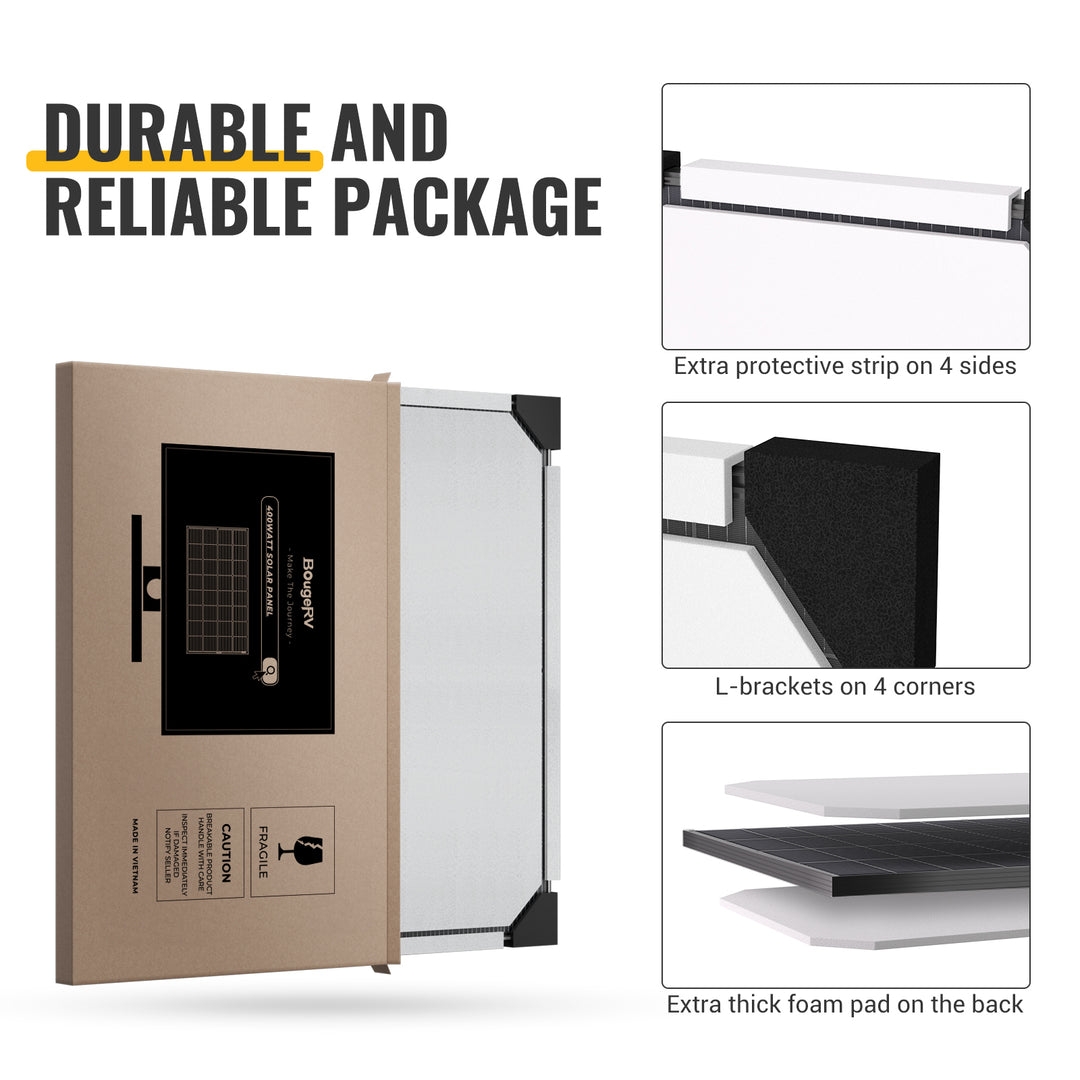

Durable and Reliable Package

Our new package offers ultimate protection with an extra protective strip on all sides, L-brackets on all corners, and an extra thick foam pad on the back. Trust that your shipment will arrive safely with our new package.

User Friendly & Easy Installation

IP67 Rated Waterproof Junction Box can isolate environmental particles and low-pressure water jets. Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft Solar Cables. Pre-drilled holes on the back of the panel allow you to quickly install solar panels without using heavy tools.

Durable & Long Lasting

BougeRV sturdy Bifacial 400-watt solar panels can withstand high wind (2400 Pa) and snow loads (5400 Pa) and have excellent performance in low-light environments. Corrosion-resistant aluminum material can withstand the changing outdoor environment and prolong its service life.

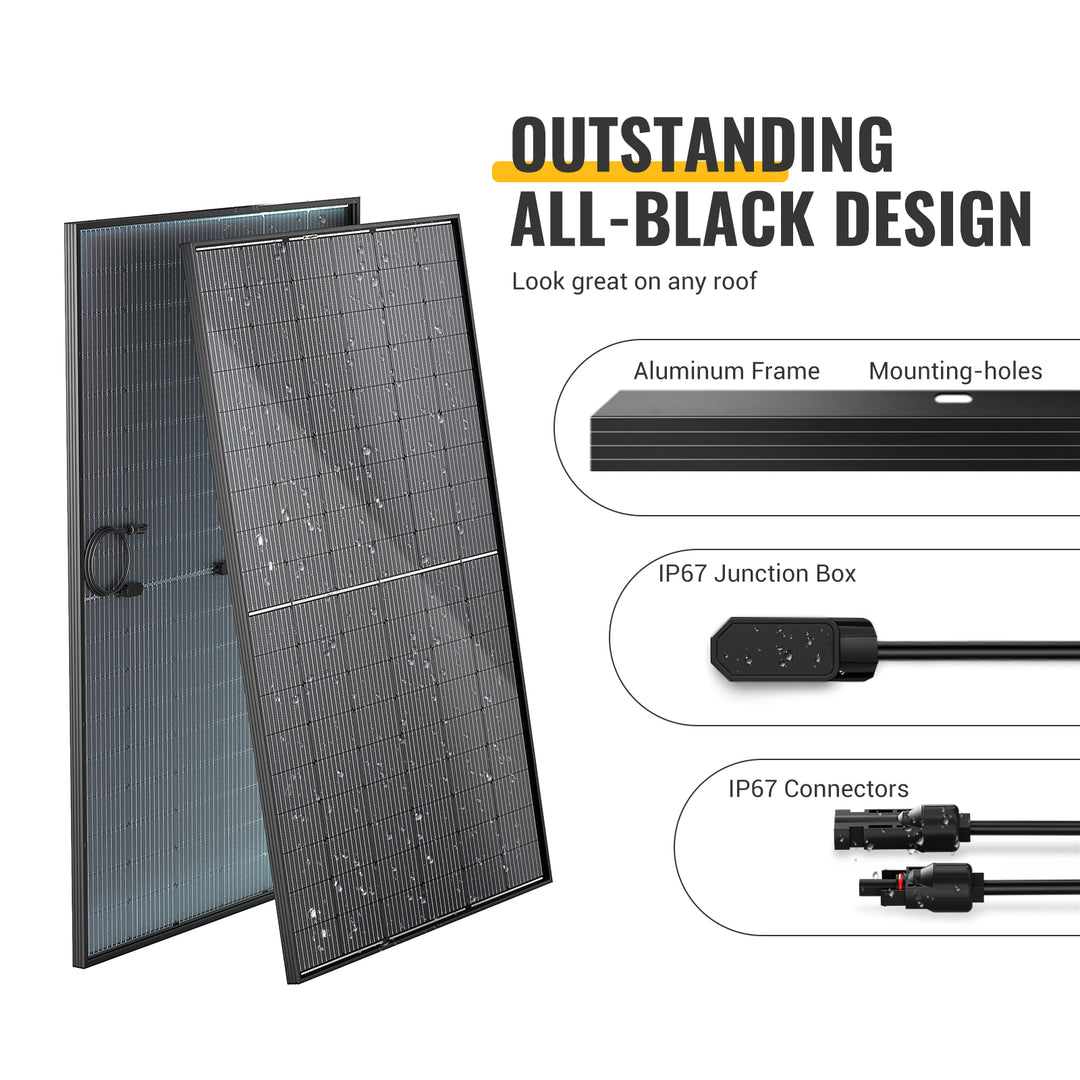

All Black Design

BougeRV Bifacial 400-watt solar panel features a black corrosion-resistant aluminum frame. All-black style solar panel is more suitable for your black roof, and it is integrated without being obtrusive.

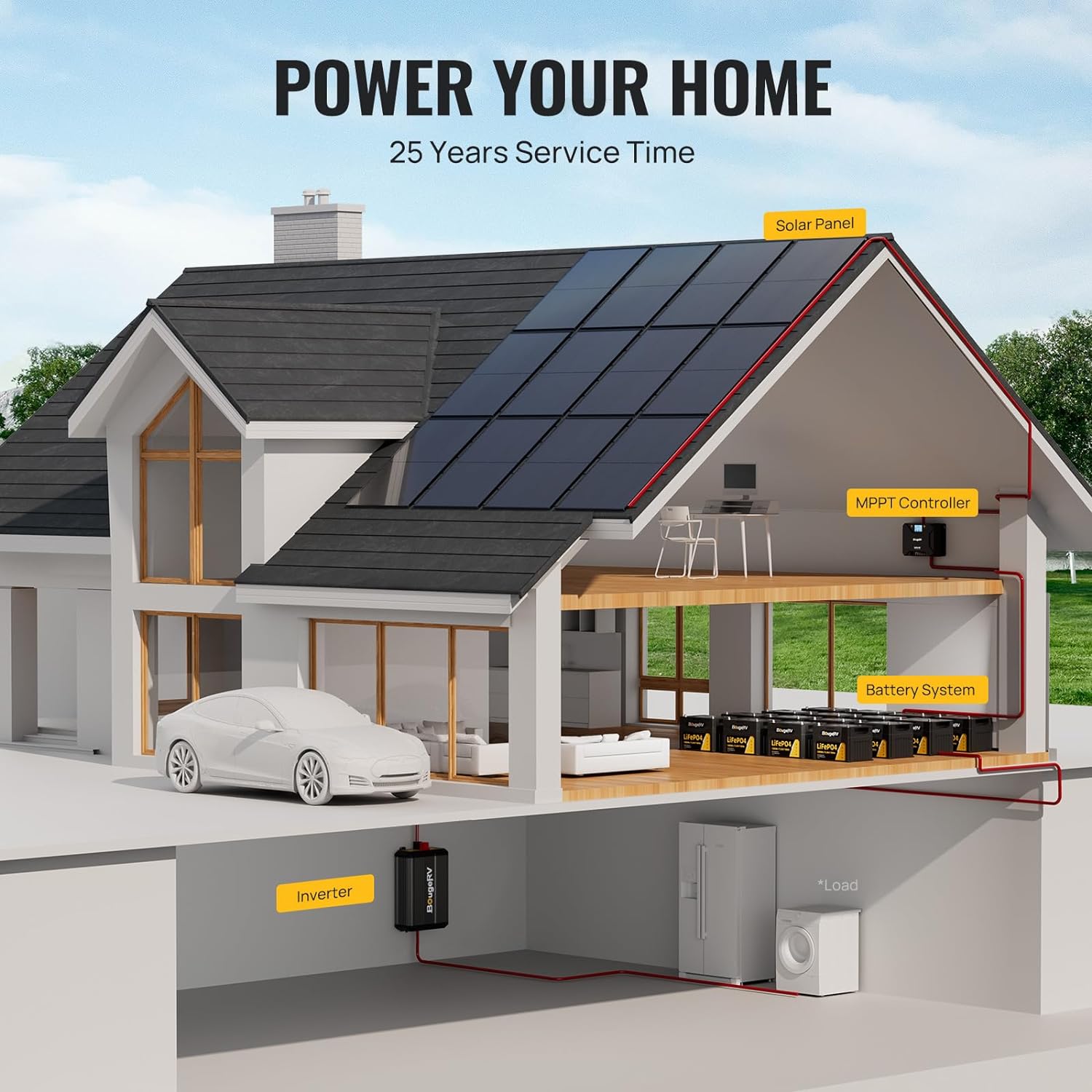

MULTIPURPOSE USE

Bifacial 100W 12V 9BB Mono Solar Panel with Recommedation

Product Specifications

SKU	ISE240
Maximum Power (W)	400±5% W
Open Circuit Voltage Voc (V)	37.1±5% V
Max Power Voltage Vmp (V)	31±5% V
Max Power Current Imp (A)	12.9±5% A
Short Circuit Current Isc (A)	13.8±5% A
Solar Cells Efficiency	23%
Warranty Description	10 years product warranty and 25-years power warranty

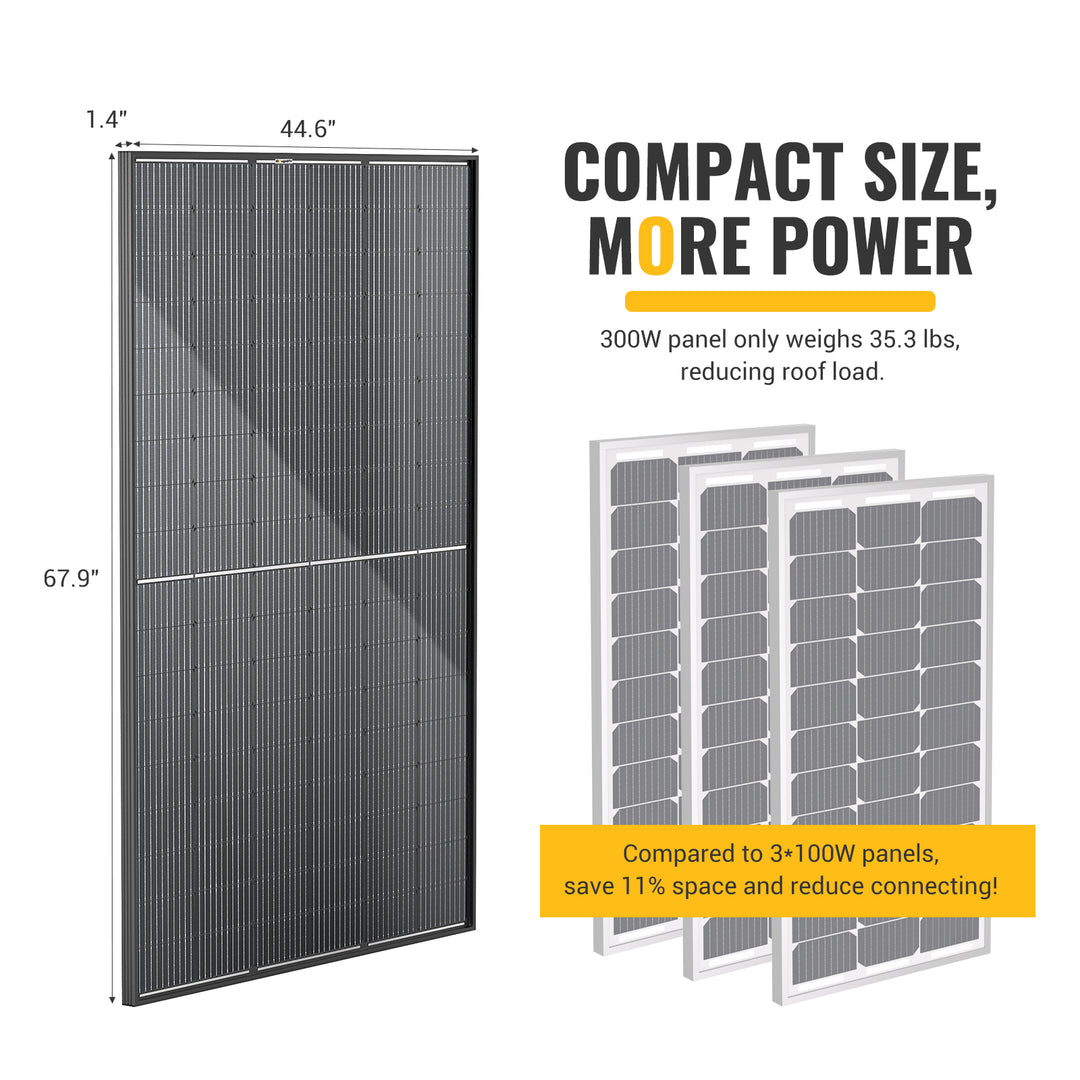

Product Dimension (IN)	67.9x44.6x1.4 inches
Net Weight (kg / lb)	45.21 lb
Application Class	Class A
Max Static Load (front)	2400 Pa
Max Static Load (back)	2400pa
Series Fuse Rating	25A
Product Type	Solar Panel

SKU	ISE240
Maximum Power (W)	400±5% W
Open Circuit Voltage Voc (V)	37.1±5% V
Max Power Voltage Vmp (V)	31±5% V
Max Power Current Imp (A)	12.9±5% A
Short Circuit Current Isc (A)	13.8±5% A
Solar Cells Efficiency	23%
Warranty Description	10 years product warranty and 25-years power warranty
Product Dimension (IN)	67.9x44.6x1.4 inches
Net Weight (kg / lb)	45.21 lb
Application Class	Class A
Max Static Load (front)	2400 Pa
Max Static Load (back)	2400pa
Series Fuse Rating	25A
Product Type	Solar Panel

User Manual

Reviews

FAQ

Under optimal sunlight conditions, a 400-watt solar panel can produce 400 watts of power in one hour, so it will generate nearly 1.6-2.4 kWh per day, provided it gets sunlight for 8 hours. But the actual output can vary based on factors such as the angle of the sun, temperature and more.

The number of batteries you need for a 400 watt solar panel depends on the battery capacity and the amount of energy you use. To draw 1000W, a 400 watt solar panel requires at least a battery with a capacity of 100ah.

The number of amps a 400-watt solar panel produces depends on the voltage. If you use the most common solar panel voltage of 12 volts as an example, it may generate approximately 16 amps at 12 volts.

BougeRV 400W solar panels have a lifespan of 25 years.

12V Lithium iron phosphate (LiFePO4) battery is popular choice due to its efficiency, lifespan, and ability to store the generated energy effectively.
