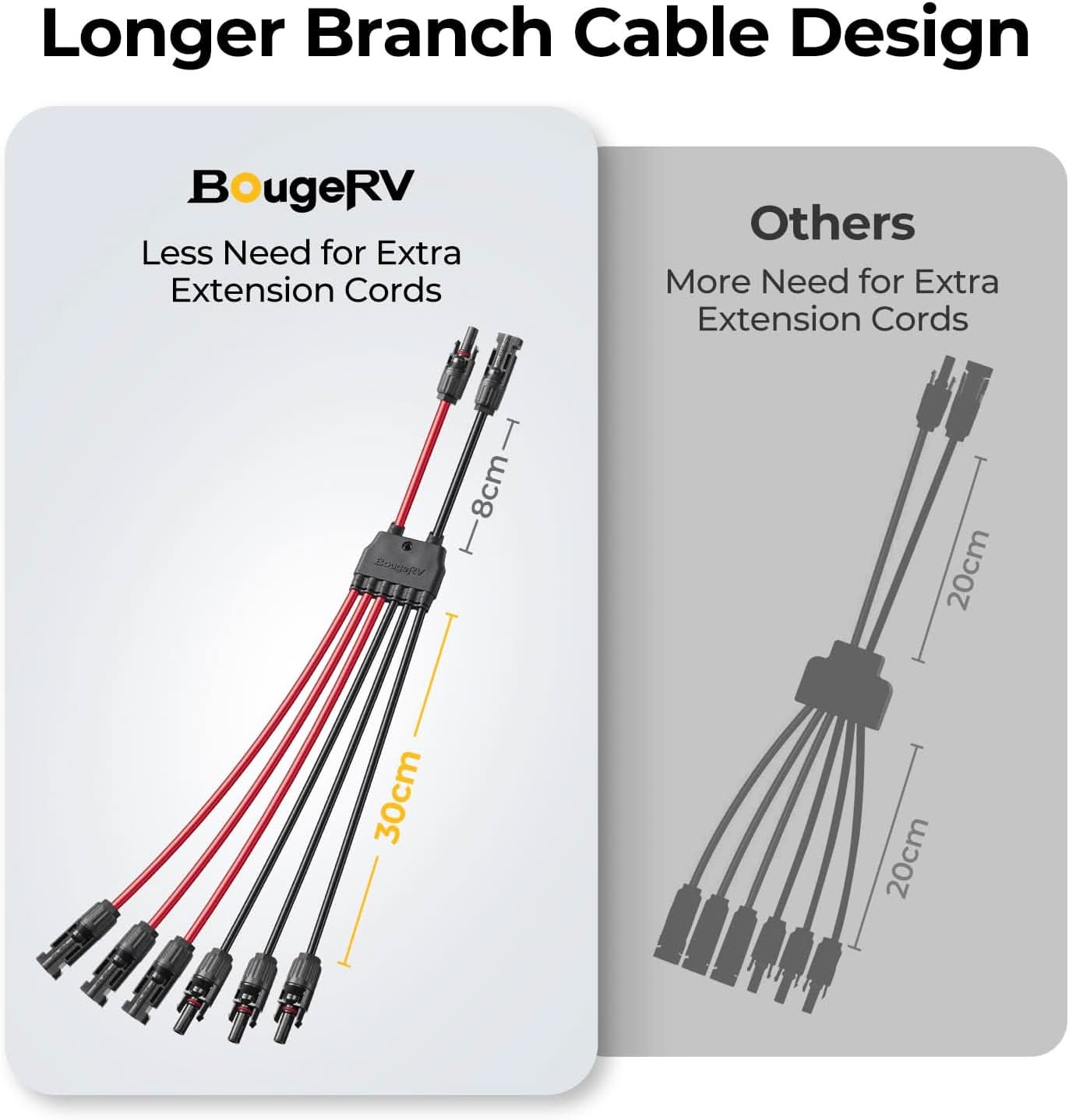

- Longer Branch Cable Design: BougeRV solar panel parallel connectors make setup a breeze. With 30cm branch lengths compared to the market standard of 20cm, our cables have been thoroughly tested for parallel solar panel connections. In most cases, no extension cables are needed, simplifying your installation

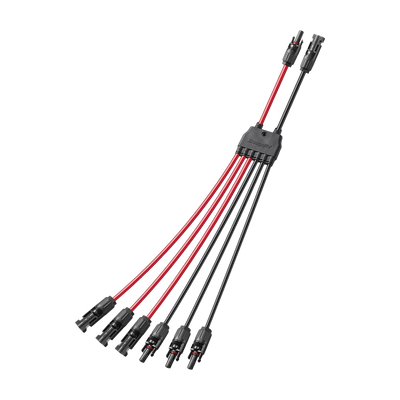

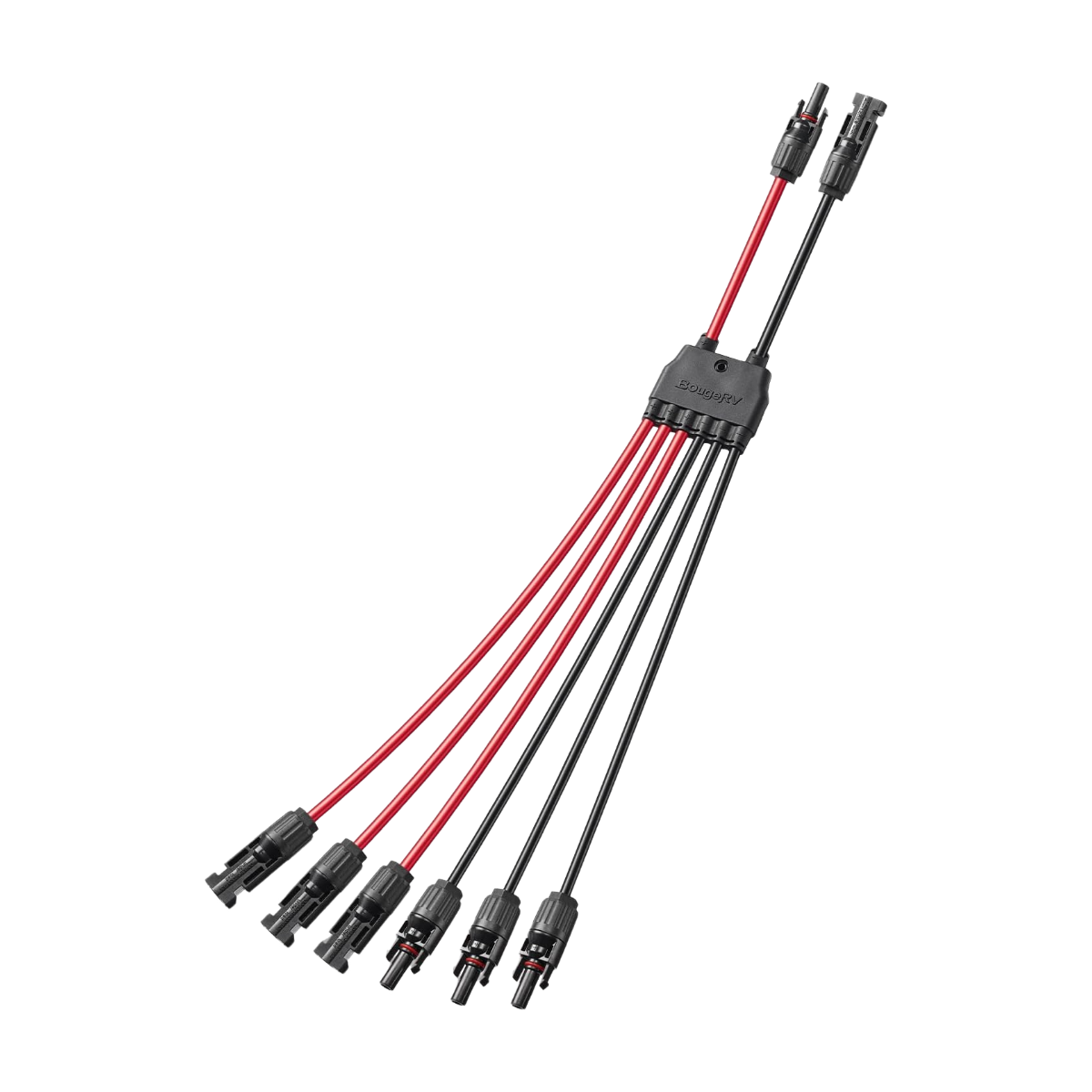

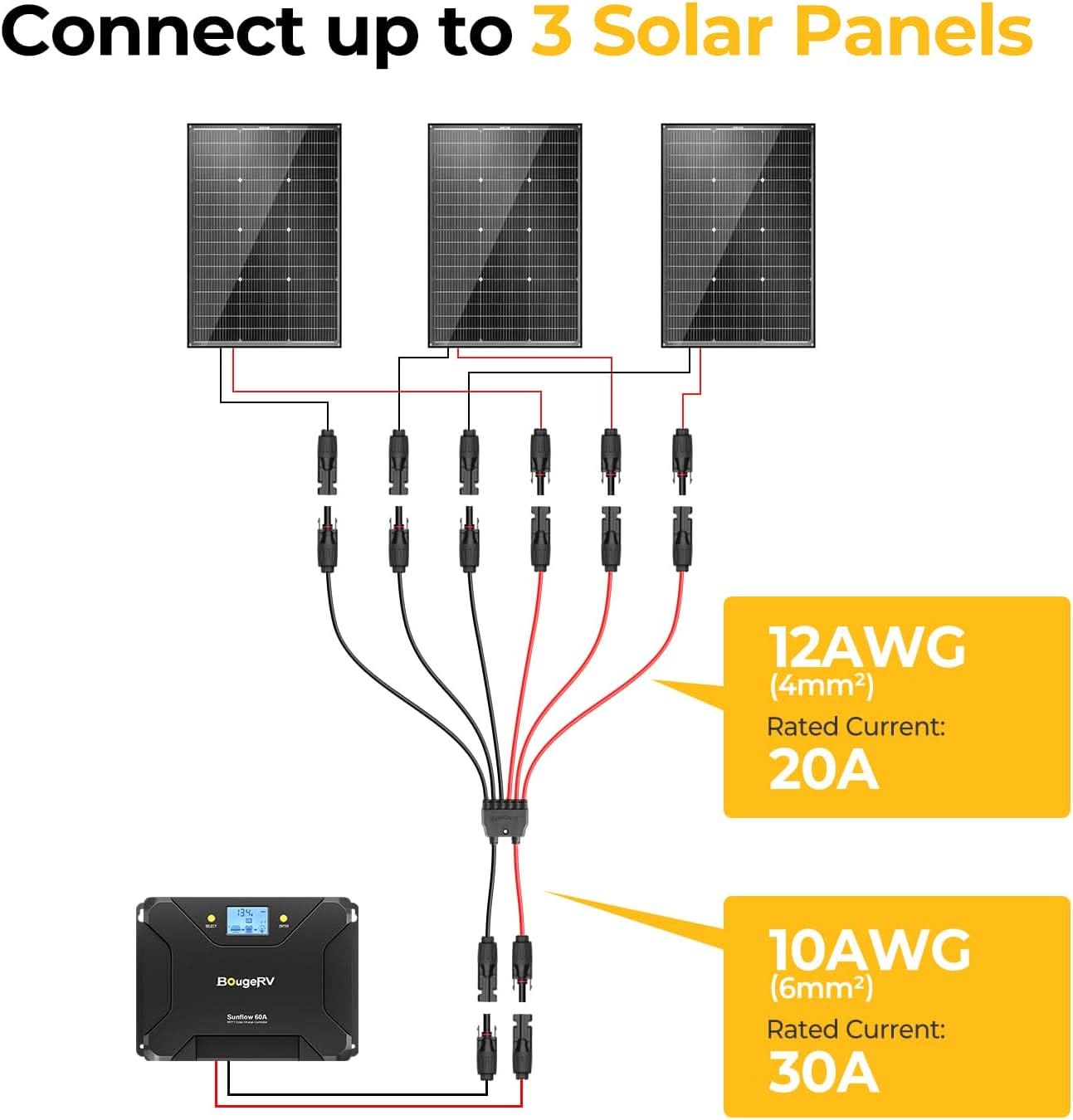

- Easily Connect 2-3 Solar Panels: BougeRV 2 to 6 Y Branch Parallel Cable (MFFF/FMMM) combines two Y Branch pv cables into one, with red for positive and black for negative, making it easy even for beginners. The main line is 6mm² (10AWG) and the branch line is 4mm² (12AWG). Rated voltage: DC1000V. Operating temperature: -40°F to 230°F

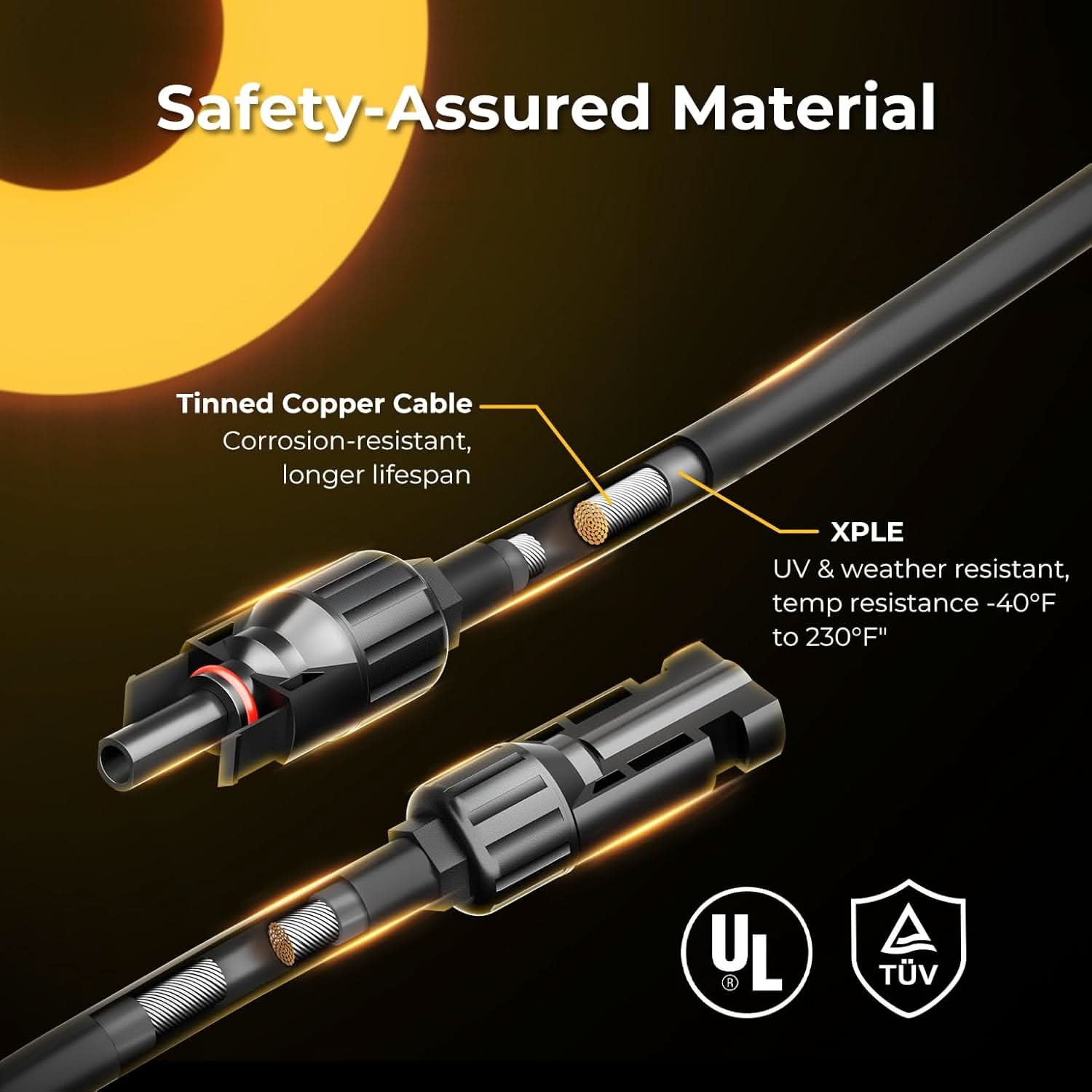

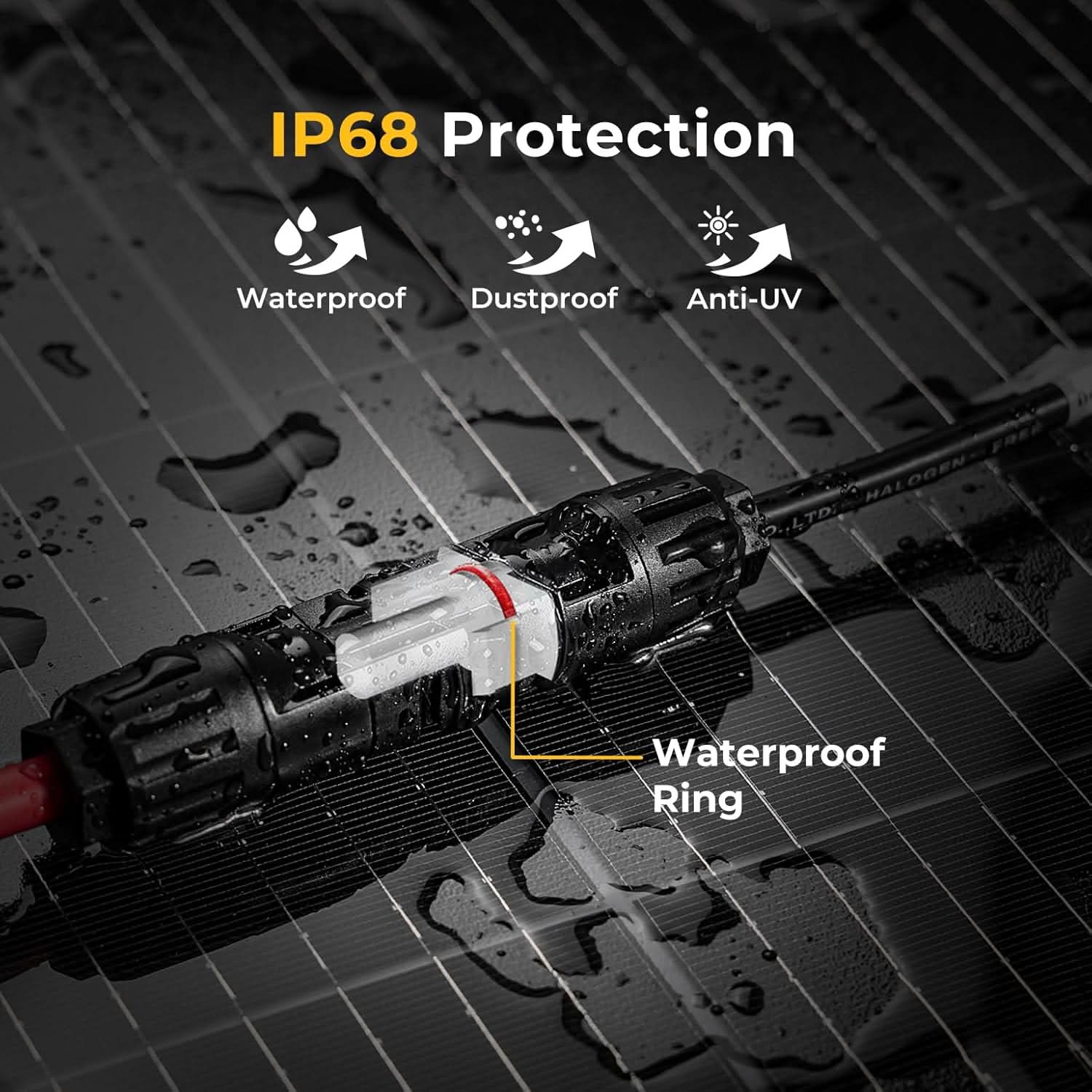

- Safe and Durable: BougeRV connectors are waterproof and dustproof with an IP68 rating for the male connector. Made with premium XLPE and tinned copper materials, and certified by UL and TÜV, this solar Y branch connector resists UV and high temperatures. It is safe, durable, and ideal for outdoor use
- Wide Application: BougeRV solar wire connector is suitable for most conventional type solar connectors except the amphenol connector and other irregular type connectors, which is also compatible with solar cables in 10AWG to 14AWG
- No-hassle 18-Month Tech Support: BougeRV stands by our solar kits. If anything is missing or if you encounter any issues during use, please reach out to us

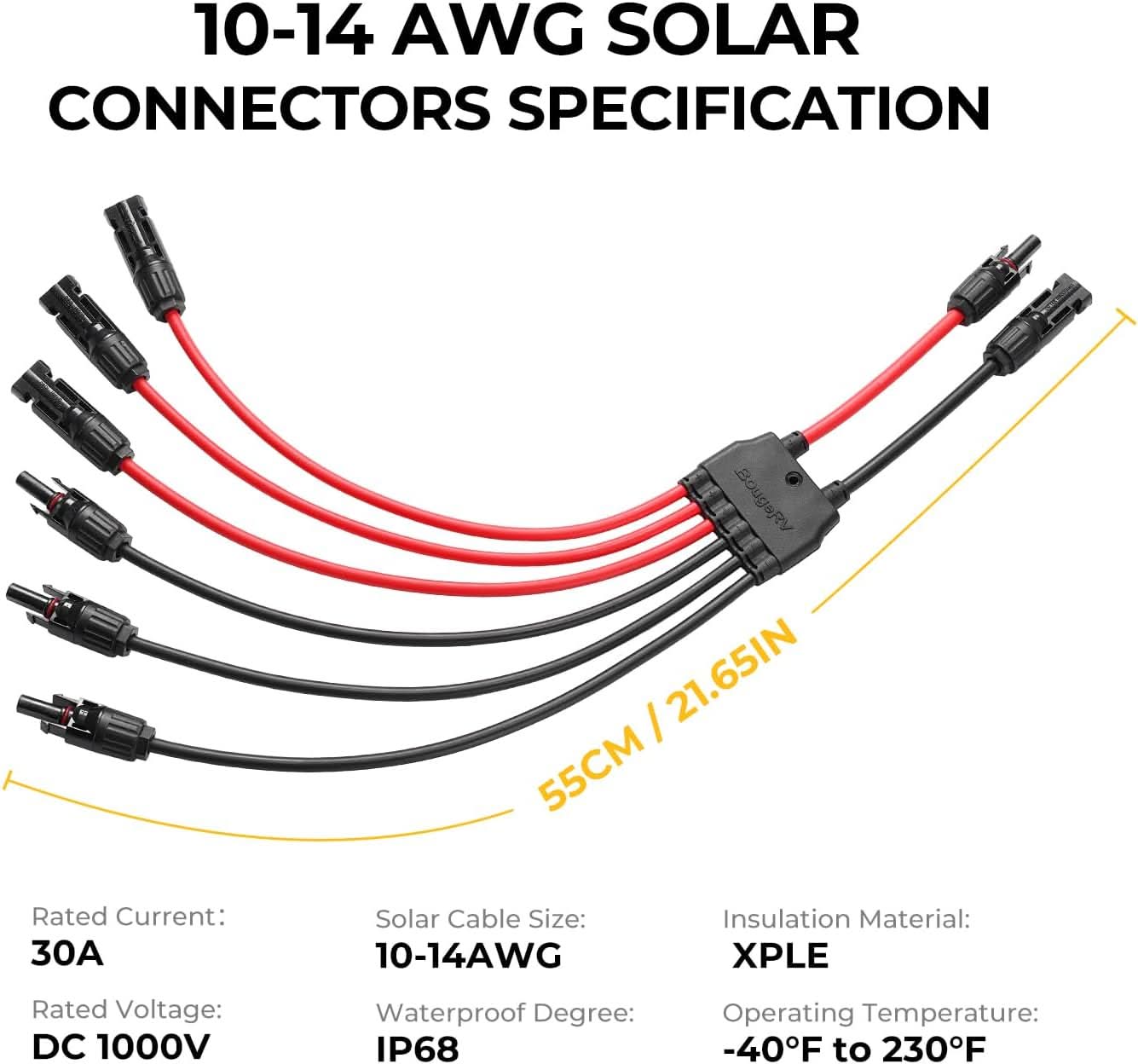

TECH SPECS
| SKU | R0S06-00004-BK-RD |
|---|---|
| Rated Current | Main Line (30A); Branch Line (20A) |
| Rated Voltage | DC 1000V |
| Solar Cable Size | 10-14AWG |
| Waterproof Degree | IP68 |
| Insulation Material | XPLE |
| Operating Temperature | -40℉ to 230℉ |
| Safety Class | II |
| Flammability Rating | UL94-VO |
| SKU | R0S06-00004-BK-RD |
|---|---|
| Rated Current | Main Line (30A); Branch Line (20A) |
| Rated Voltage | DC 1000V |
| Solar Cable Size | 10-14AWG |
| Waterproof Degree | IP68 |
| Insulation Material | XPLE |
| Operating Temperature | -40℉ to 230℉ |
| Safety Class | II |
| Flammability Rating | UL94-VO |
FAQs
You can use it to connect 2 solar panels in parallel.
Solar power system recommended: solar panels + solar connector + solar charge controller + LiFePO4 battery + solar inverter
Rated current: 30A, Rated voltage: DC 1000V.

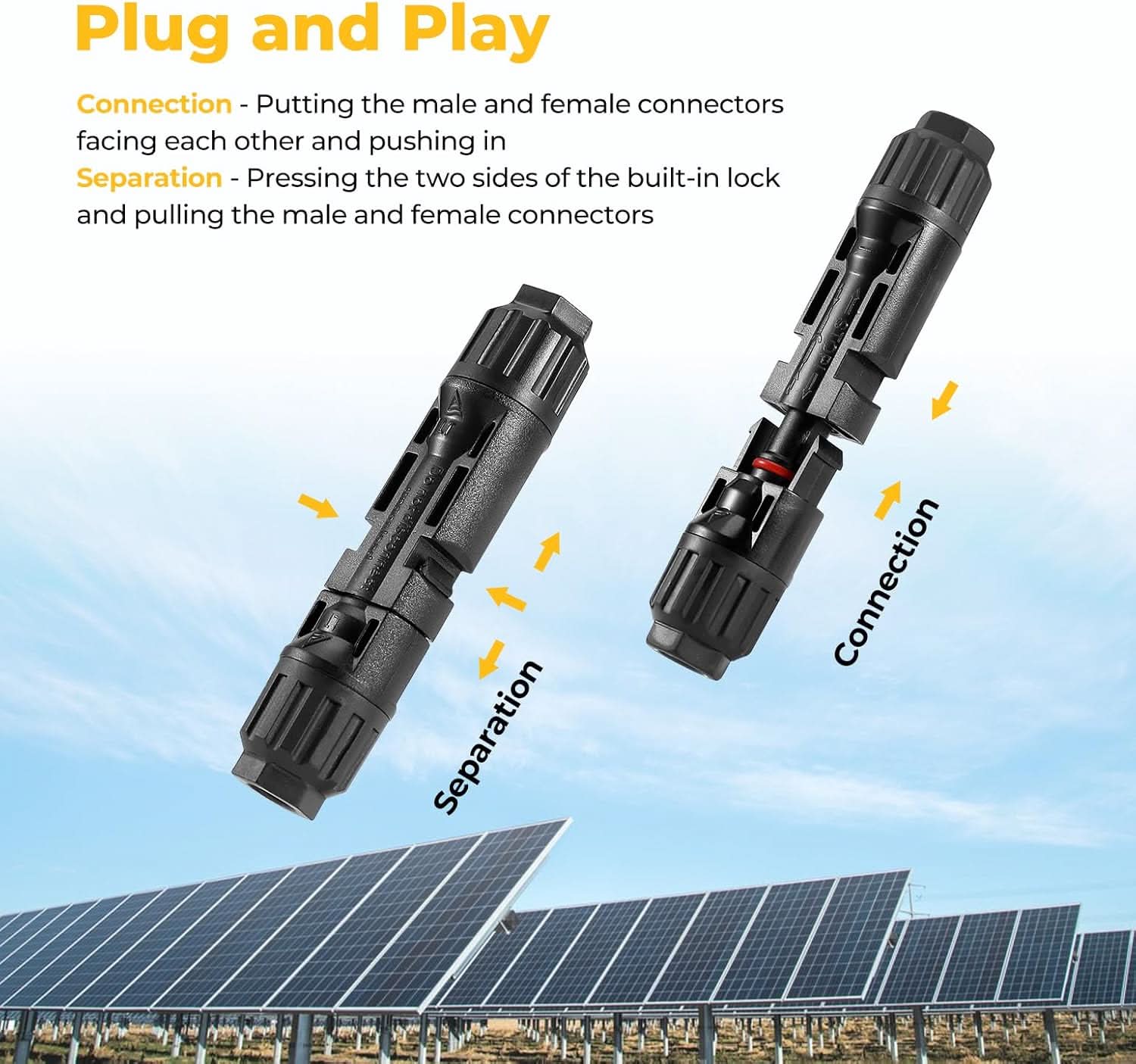

The tight design can prevent solar connectors from leaking from water.
