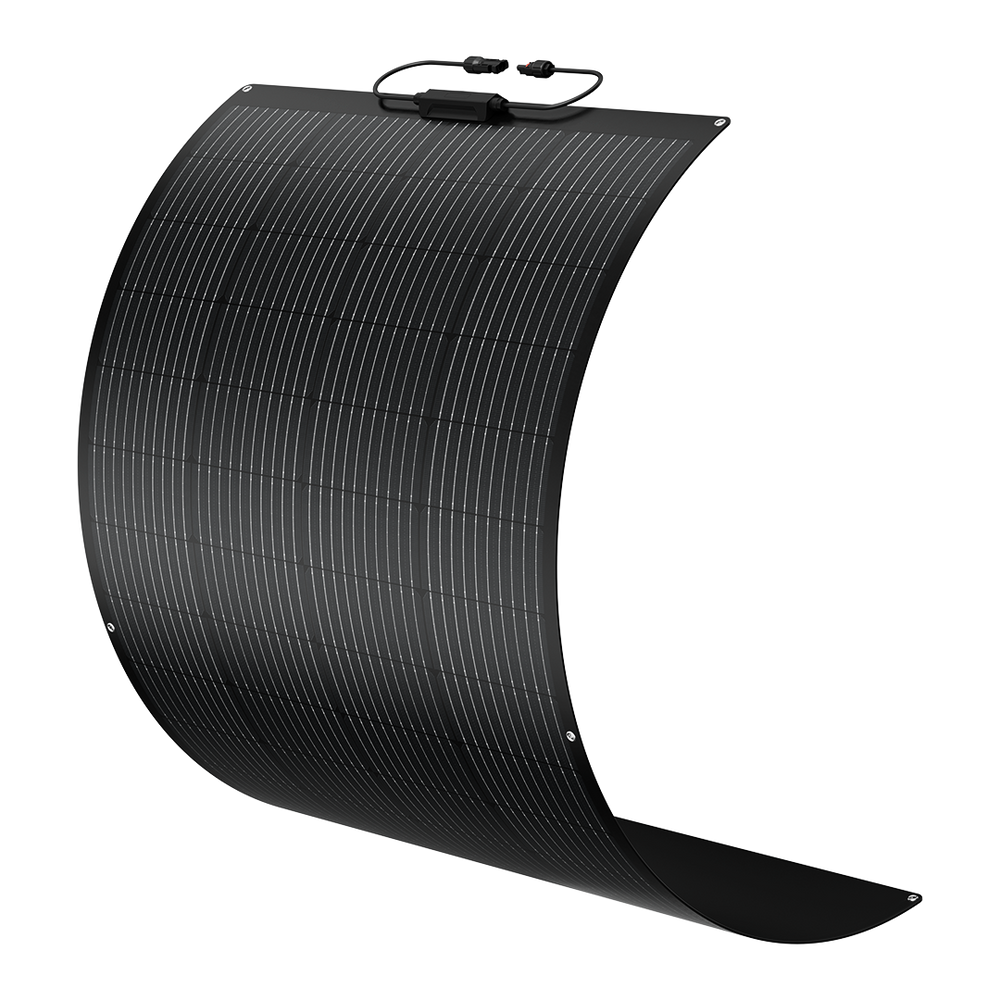

600 Watt Curved Solar Panel

Name: BougeRV Arch 600 Watt(3x200W) Fiberglass Curved Solar Panel
Brand: BougeRV
SKU: ISE230-3
Price: 824.99 USD
Availability: InStock

PRODUCT VIDEO

$824.99

BougeRV curved solar panel offers unmatched flexibility and durability. With double glass fiber layers placed on the upper and lower surfaces of the 10BB mono solar cell, this panel is protected from damage to the maximum extent. No worries about cracks. By conforming better to curved surfaces, it maximizes the use of limited roof space or even the curved sections of a vehicle's front. This fiberglass solar panel is ultra-lightweight, weighing only 7 lbs and measuring only 2mm thin, which makes it easy to carry and move.

LEARN MORE ABOUT BOUGERV FIBERGLASS SOLAR PANEL

HIGHLIGHTS

Multipurpose Use

BougeRV innovative fiberglass curved solar panel, crafted from flexible fiberglass material, can bend up to 270 degrees for seamless integration on boats, RVs, Jeeps, and roofs. Outshining traditional monocrystalline silicon panels, it offers enhanced adaptability and diverse mounting options, broadening the potential for solar energy application.

10BB Cell Design

The BougeRV fiberglass curved solar panel features an efficient 10BB cell design, achieving a high conversion rate of up to 23%. Its design also minimizes shading on the cells, enhancing light absorption and potentially contributing to the panel's overall longevity.

Ultra Lightweight &Thin

The BougeRV 2.1mm glass fiberglass curved solar panel, with its ultra-slim design and lightweight at just 7 pounds, offers easy installation and space efficiency, ideal for tight spaces in vehicles and compact living areas, while providing a portable alternative to traditional panels.

IP68 WaterProof

BougeRV fiberglass curved solar panels are IP68 waterproof, ensuring durability and functionality even when fully submerged or exposed to extreme weather.

Durable & Long Lasting

The BougeRV curved fiberglass solar panel is designed for durability, able to resist high wind (2400 Pa) and heavy snow (5400 Pa), with corrosion-resistant aluminum for an extended lifespan.

Multipurpose Use

Product Specifications

SKU	ISE230
Max Power (Pmax)	200±5%W	Operating Temperature Limits	-40℉ ~ +185℉
Solar Cells Efficiency	23%	Series Fuse Rating	15A
Max. Power Voltage Vmp (V)	17.1±5%V	Temperature Coefficient Pmax	-0.39%/℃
Max. Power Current Imp (A)	11.7±5%A	Temperature Coefficient Voc	-0.33%/℃
Open Circuit Voltage Voc (V)	20.1±5%V	Temperature Coefficient Isc	0.06%/℃
Short Circuit Current (Isc)	12.28±5%A	Dimensions	58.1310.08 inches
Power output warranty	25 years 80% output warranty	Weight	7.05 lbs
Material & workmanship warranty	5 Years	Product Type	Curved Solar Panels

SKU	ISE230
Max Power (Pmax)	200±5%W
Solar Cells Efficiency	23%
Max. Power Voltage Vmp (V)	17.1±5%V
Max. Power Current Imp (A)	11.7±5%A
Open Circuit Voltage Voc (V)	20.1±5%V
Short Circuit Current (Isc)	12.28±5%A
Max. System Voltage	1000V DC
Material & workmanship warranty	5 Years
Operating Temperature Limits	-40℉ ~ +185℉
Power output warranty	25 year 80% output warranty
Temperature Coefficient Pmax	-0.39%/℃
Temperature Coefficient Voc	-0.33%/℃
Temperature Coefficient Isc	-0.06%/℃
Dimensions	58.1310.08 inches
Weight	7.05 lbs

User Manual

Reviews

FAQs

Yes, these curved solar panels can be bent. They are designed using thin, lightweight materials that allow them to conform to irregular shapes without compromising performance. They are perfect for boats, RVs, and roofs that lack the necessary flat surface for rigid solar array frames.

The decision to choose a curved solar panel or traditional solar panel depends on the specific requirements, budget, and personal preferences. The BougeRV 100W flexible solar panel, made of glass fiber, incorporates the advanced 10BB cell design and an extended lifespan for the panel.

The BougeRV 100W curved solar panel is made with high-quality 10BB cells, resulting in a remarkable 23% conversion rate, the highest in its class. This design feature not only extends the solar panel's lifespan but also enhances its efficiency.

This curved solar panel can flex up to 270°, making it suitable for more curved surfaces and allowing installation in places where rigid solar panels cannot be used. It maximizes the use of limited space on roofs and even curved areas on the front of vehicles.
