HIGHLIGHTS

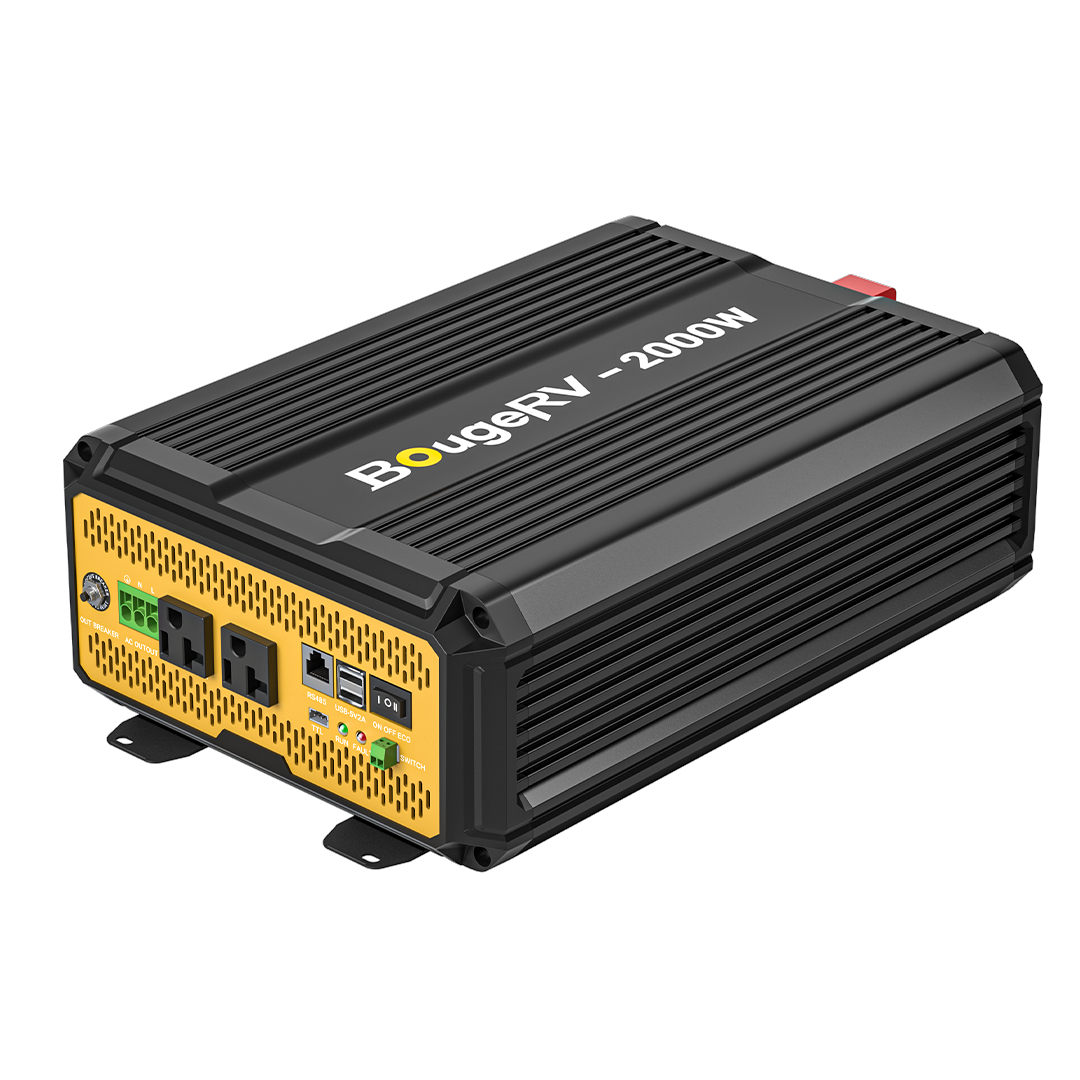

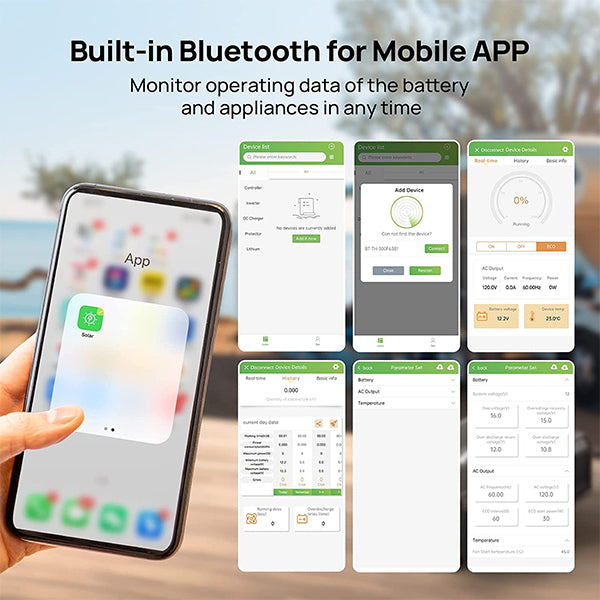

2000W 12V Pure Sine Wave Inverter comes with a built-in Bluetooth communication function, allowing users to monitor operating data of the battery and appliances through a mobile app at any time. The Bluetooth acceptance range is 10M (barrier-free).

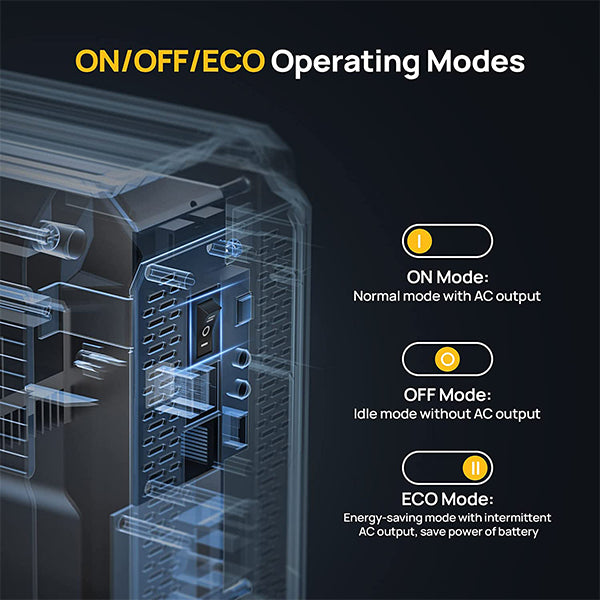

The energy-saving mode with intermittent AC output maximizes power saving of the battery. When the load power is lower than the ECO starting power (default 30W), the inverter will automatically close the AC output and enter idle mode. The AC output will restart after an interval of one minute. The inverter will continue AC output continuously if the load power is larger than the ECO starting power (+10W).
2000W 12V Pure Sine Wave Inverter features six multiple protection functions, including input overvoltage protection, input low voltage protection, output overload protection, output short circuit protection, over temperature protection, and cooling fan fault protection. The circuit safety is always monitored and protected through LED indicators and alarm sounds.

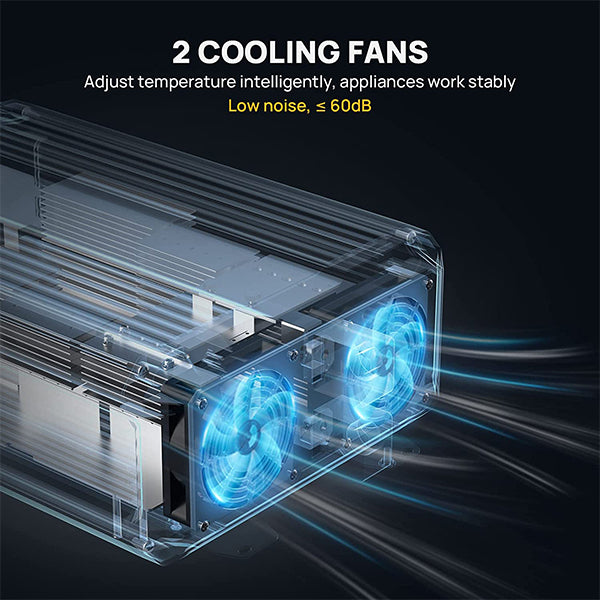

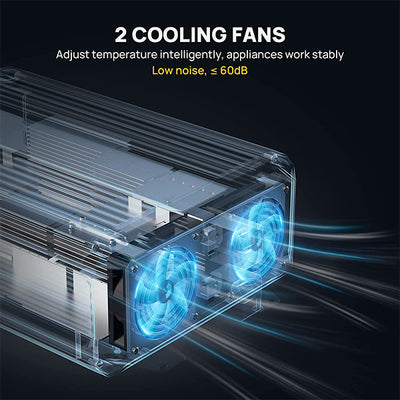

Equipped with two cooling fans, 2000W 12V Pure Sine Wave Inverter can adjust temperature intelligently, ensuring that appliances work stably. The temperature adjustment range is from 104℉ to 149℉. Despite having fans, the noise level remains low (≤ 60dB).
Product Specifications
SKU | ISE163 | Product type | Power Inverters |
---|---|---|---|
Rated power | 2000W | Rated output efficiency | >89% |
Surge power | 4000W | Loss when no load | <0.1A |
Input voltage | DC 12V | Standby / ECO current | <0.2A |
Rated output voltage | AC 110V ± 3% | ECO interval time | 1 min |
Output frequency | 60Hz ± 0.2% | Operating ambient temperature | -4°F - 140°F |
Output waveform | Pure sine wave | Noise | ≤60dB |

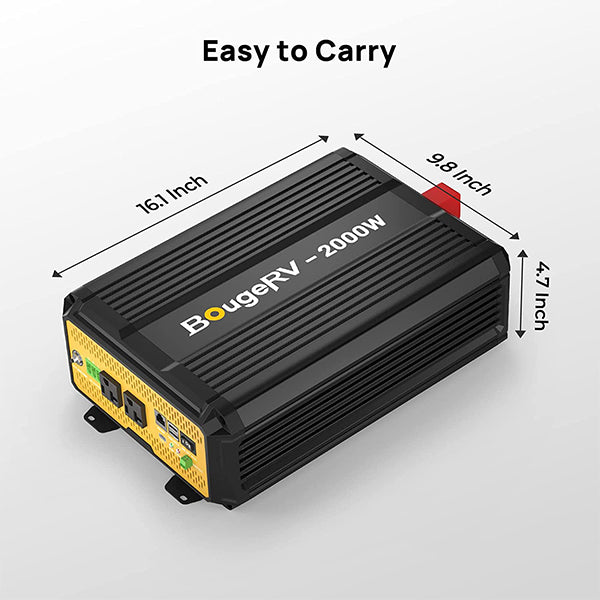

Warranty Description | 18 months | Product size | 16.1*9.8*4.7in |
SKU | ISE163 |
---|---|
Rated power | 2000W |
Surge power | 4000W |
Input voltage | DC 12V |
Rated output voltage | AC 110V ± 3% |
Output frequency | 60Hz ± 0.2% |
Output waveform | Pure sine wave |
Rated output efficiency | >89% |
Loss when no load | <0.1A |
Standby / ECO current | <0.2A |
ECO interval time | 1 min |
Operating ambient temperature | -4°F - 140°F |
Noise | ≤60dB |
Product size | 16.1*9.8*4.7in |
Warranty Description | 18 months |
User Manual
Reviews
FAQ
A1: Before using the BougeRV pure sine wave inverter, you should make sure that the appliance's power does not exceed the rated power of the inverter. Additionally, the battery used should be 12V, and the red wire should be connected to the positive pole, while the black wire should be connected to the negative pole.
A2: No, the BougeRV inverter can only work with a 12V battery system.

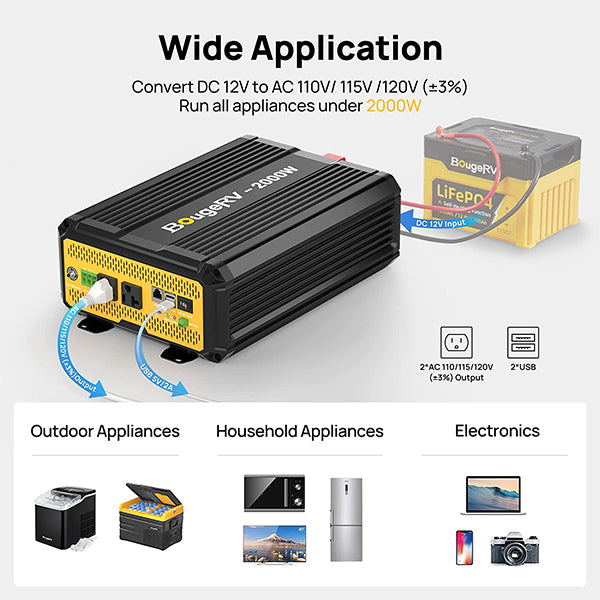

A3: No, the BougeRV DC 12V to AC 120V inverter can only convert DC power to AC power.
A4: If the green light isn't flashing in the standby state of the inverter, it could mean that there's a problem with the line contact. To fix this issue, you should reconnect the battery and the inverter.
A5: This inverter comes with a built-in Bluetooth module that allows you to set and view parameters on a mobile app.
