What Exactly Is a Charge Controller?

A charge controller regulates the voltage and current coming from your solar panels to your battery. Its primary job is to ensure that your battery doesn't overcharge during sunny days or discharge too much when it's cloudy. Think of it as the traffic cop of your solar setup, making sure everything flows smoothly without any hiccups.

3 Easy Steps to Pick the Right Charge Controller

Picking the right charge controller is crucial for getting the most out of your solar power system, whether for your RV or home setup.

Here's an easy, step-by-step guide to help you select the perfect charge controller for your 12V or 24V systems:

Step 1: Know Your System Voltage

First off, match the charge controller to your battery bank's voltage. Most RVs and small off-grid systems run on 12V or 24V, while larger home setups might need 48V.

You can find the voltage information in the product specs, label, or user manual.

Step 2: Choose the Right Current Rating

Next up, ensure your charge controller can handle the current (amps) produced by your solar panels. You can use online charge controller calculators to figure out the right charge controller size in a minute.

Or, check out the following example calculations to help you decide:

Scenario: Using Three 100W Solar Panels

Let's say each solar panel has these specs:

• Power: 100W
• Voltage at Maximum Power (Vmp): Typically around 18V
• Current at Maximum Power (Imp): Typically around 5.56A

Formulas:

• Total Current in Parallel Connection = Solar Panel Imp × Number of Solar Panels
• Total Voltage in Series Connection = Solar Panel Vmp × Number of Solar Panels
• Required Output Current for Charging Battery ≈ Total Power of Solar Panel ÷ Battery Bank Voltage

1. For a 12V System:

Scenario A: Solar Panels in Parallel Connection

In parallel, the voltage stays the same but the current adds up. So:

• Total Voltage (V): Remains at 18V (good for a 12V system)
• Total Current (I): 5.56A × 3 = 16.68A

Adding a 25% safety margin: 16.68A × 1.25 = 20.85A

You'll need an MPPT or PWM charge controller rated at least 25A.

Scenario B: Solar Panels in Series Connection

In series, the current stays the same but the voltage adds up. So:

• Total Voltage (V): 18V × 3 = 54V
• Total Current (I): Remains at 5.56A

For a 12V system, 54V is too high without a specialized MPPT charge controller that can bring the voltage down and boost the current. You would need an MPPT charge controller that can handle the input voltage of 54V and output the appropriate current to charge a 12V battery.

• Required Output Current: 300W ÷ 12V ≈ 25A

Adding a 25% safety margin: 25A × 1.25 = 31.25A

So, go for an MPPT charge controller rated at least 35A and can handle input voltages above 54V.

2. For a 24V System

Scenario A: Solar Panels in Parallel Connection

In parallel, the voltage stays the same but the current adds up. So:

Total Voltage (V): Remains at 18V

Since 18V is too low for effectively charging a 24V battery, this setup isn't practical without a boost converter, which complicates the system.

Scenario B: Solar Panels in Series Connection

In series, the current stays the same but the voltage adds up.

• Total Voltage (V): 18V × 3 = 54V
• Total Current (I): Remains at 5.56A

For a 24V system, this setup works great with an MPPT controller, as it can lower the higher voltage to match the battery and increase the current.

• Required Output Current: 300W ÷ 24V ≈ 12.5A

Adding a 25% safety margin: 12.5A × 1.25 = 15.63A

So, Choose an MPPT charge controller rated at least 20A that can handle input voltages up to 54V.

Once you've got the current rating you need, check the specs on the product page, the charge controller, or the manual to ensure the current rating matches your needs.

📚 Learn More:

What Size Charge Controller Do I Need?  (Include more calculation examples)

The Ultimate Guide to an Off-Grid Solar Power System (A must-read blog for DIY solar power systems. Helps you gain a thorough understanding of solar power systems. )

Step 3: Decide Between PWM and MPPT Charge Controllers

There are mainly two types of charge controllers: PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking) charge controllers. Here’s a quick comparison based on their working principle, cost, efficiency, and best use cases:

	PWM Charge Controllers	MPPT Charge Controllers
How Do They Work?	PWM controllers work by slowly reducing the amount of power going into your battery as it gets closer to being fully charged.	MPPT controllers optimize the match between the solar array (panels) and the battery bank by converting excess voltage into amperage.
Cost	Cheaper.	They’re pricier but often worth the investment.
Efficiency	They’re less efficient compared to MPPT controllers, especially in colder climates.	MPPT charge controllers can be up to 30% more efficient than PWM controllers, especially in varied weather conditions.
When to Use?	Ideal for small solar setups such as RVs, boats, or small off-grid cabins. Suitable for 12V and 24V system. Best for areas with constant temperatures and steady sunlight. You need a simple, easy-to-install solution without advanced features.	Maximize energy from solar panels, especially in larger residential or commercial systems where efficiency gains are crucial. Suitable for 12V, 24V, 48V systems or higher. Optimal for areas with fluctuating sunlight or cloudy days. Ideal for series-wired solar panels with significant voltage differences from batteries. Great for mixing solar panel types or ages to optimize performance. Best when solar panels are far from the battery bank to reduce power loss. Offer better scalability and flexibility for future expansion of your solar system.

Two More Important Things to Think About

Your Budget:

While cheap options are tempting, a high-quality MPPT controller will save you money in the long run due to better efficiency and capacity. Besides, MPPT charge controllers are only slightly more expensive than PWM controllers by just a few dozen dollars, so we recommend:

• Choose PWM charge controllers for solar panel outputs under 200W.
• Use either PWM or MPPT for solar panel outputs between 200W and 400W.
• Opt for MPPT charge controllers for solar panel outputs over 400W.

Additional Features:

Look for charge controllers with extra features that make managing your system easier. These might include:

• LCD display
• Temperature sensors to adjust charging based on temperature, enhancing battery life
• Bluetooth connectivity for easy monitoring and troubleshooting via an app
• Overload protection to shut down the system if it exceeds safe limits
• Programmable settings for tailored charging profiles to suit specific battery types or usage needs

Congrats! You’re Ready to Pick the Perfect Charge Controller!

With these steps, choosing a charge controller is easy. You'll ensure your solar system runs efficiently and reliably, giving you reliable clean energy, whether on the road or off the grid at home.

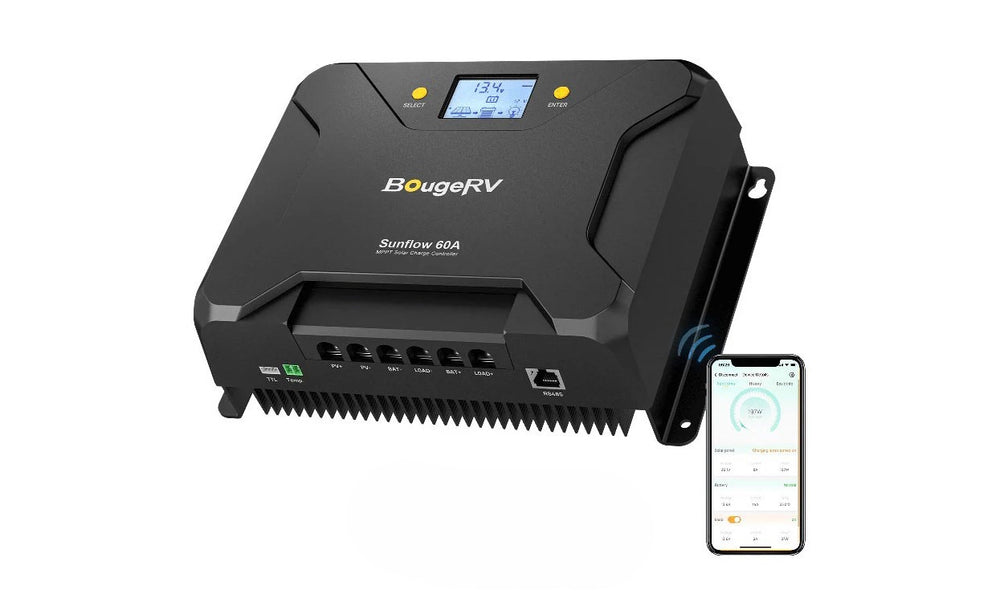

Start with BougeRV’s superb charge controllers for your RV and Home today!

*Solar Energy Terms in This Blog:

1. Voltage (V): It refers to the voltage levels of your solar panels and battery bank in this blog.
2. Current (Amps or A): The flow of electric charge.
3. Output Current: The current that the charge controller delivers to the battery.
4. Input Voltage: The voltage coming from the solar panels into the charge controller.
5. 12V, 24V, 48V Systems: Common voltage levels for battery banks in solar setups.

6. Battery Bank: A collection of batteries connected to store energy generated by solar panels.
7. Overcharge: When a battery receives too much voltage or current, which can damage it.
8. Discharge: When a battery releases its stored energy.
9. Parallel Connection: A method of connecting solar panels where the voltage remains constant, but the current is additive. Suitable for systems that need to maintain a specific voltage level.
10. Series Connection: A method of connecting solar panels where the current remains constant, but the voltage is additive. Useful for systems requiring higher voltage inputs.

11. Maximum Power Point (MPPT): A technology used in some charge controllers to maximize the efficiency of power conversion from solar panels to the battery by adjusting the voltage and current.
12. Pulse Width Modulation (PWM): A technique used in some charge controllers to gradually reduce the amount of power going into the battery as it approaches full charge.
13. Safety Margin: An added percentage to ensure your charge controller can handle unexpected increases in current, typically around 25%.
14. Efficiency: The effectiveness of a charge controller in converting and regulating the power from solar panels to the battery.
15. Boost Converter: A device that increases the voltage from the solar panels to match the battery requirements.
