TOPCon 16BB 200W Solar Panel and 40A MPPT Solar Controller Kit

Name: BougeRV 16BB 24V N-Type 200 Watt Bifacial Solar Panel+40A MPPT Solar Controller Kit
Brand: BougeRV
SKU: ISE237+ISE218N
Price: 379.99 USD
Availability: InStock

(10)

$379.99

Elevate your outdoor experiences with BougeRV's advanced N-Type TOPCon 200 Watt Solar Panel paired with a robust 40A MPPT solar controller kit. Perfect for enhancing camping, RV trips, and off-grid living, this powerful combination delivers superior efficiency and reliability. Explore our comprehensive solution for sustainable energy and start maximizing your adventures!

Read more » Fold up »

Option

24V Solar panel+40A Solar Controller

Quantity

[{"id":45243232780504,"title":"24V Solar panel+40A Solar Controller","option1":"24V Solar panel+40A Solar Controller","option2":null,"option3":null,"sku":"ISE237+ISE218N","requires_shipping":true,"taxable":true,"featured_image":{"id":41294572486872,"product_id":8353885126872,"position":1,"created_at":"2024-05-10T09:34:38+08:00","updated_at":"2024-05-10T09:34:46+08:00","alt":null,"width":1600,"height":1600,"src":"\/\/www.bougerv.com\/cdn\/shop\/files\/ISE237_ISE217.png?v=1715304886","variant_ids":[45243232780504]},"available":true,"name":"BougeRV 16BB 24V N-Type 200 Watt Bifacial Solar Panel+40A MPPT Solar Controller Kit - 24V Solar panel+40A Solar Controller","public_title":"24V Solar panel+40A Solar Controller","options":["24V Solar panel+40A Solar Controller"],"price":37999,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"6938607467251","featured_media":{"alt":null,"id":34365563633880,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.bougerv.com\/cdn\/shop\/files\/ISE237_ISE217.png?v=1715304886"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pay With Ease:

Bifacial 100W 12V 9BB Mono Solar Panel with Recommedation

FULLY COMPATIBLE WITH LiFePO4

BougeRV Sunflow 40A MPPT solar charge controller features low-temp cut-off charging (below 32℉) to protect your LiFePO4 battery, it can also restart or activate dormant 12V or 24V LiFePO4 batteries turned off due to short circuits or over-discharged.

HIGH-EFFICIENCY CHARGE

BougeRV Sunflow 40 Amp MPPT controller can adjust the charge current from 0A to 40A. BougeRV charge controller for solar panels, its high tracking efficiency is up to 99.5%, peak conversion efficiency is up to 99%, maximizing the solar panels' output. Adopting quality aluminum heat sink, the battery regulator can dissipate heat better and minimize the power lost under full load working.

ACTIVE SHIELD

Certified by CE and RoHS. BougeRV 40A MPPT renewable energy controller features a dual MOS circuit to prevent the reverse current and reduce the heat in operation. With 6 protections, over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention circuit, flow backward of current protections.

SMART LCD AND APP CONTROL

Sunflow 40 amp MPPT controller also features a remote app control, the Bluetooth range is up to 32 feet. Stay informed with the “Solar” APP that provides the solar panel, battery and load status. The controller provides 3 modes for display operation, full-featured mode, no-load mode, and viewing mode, you can select the full-featured mode to modify all adjustable parameters via the screen button if you don't want to download an app.

Product Specifications

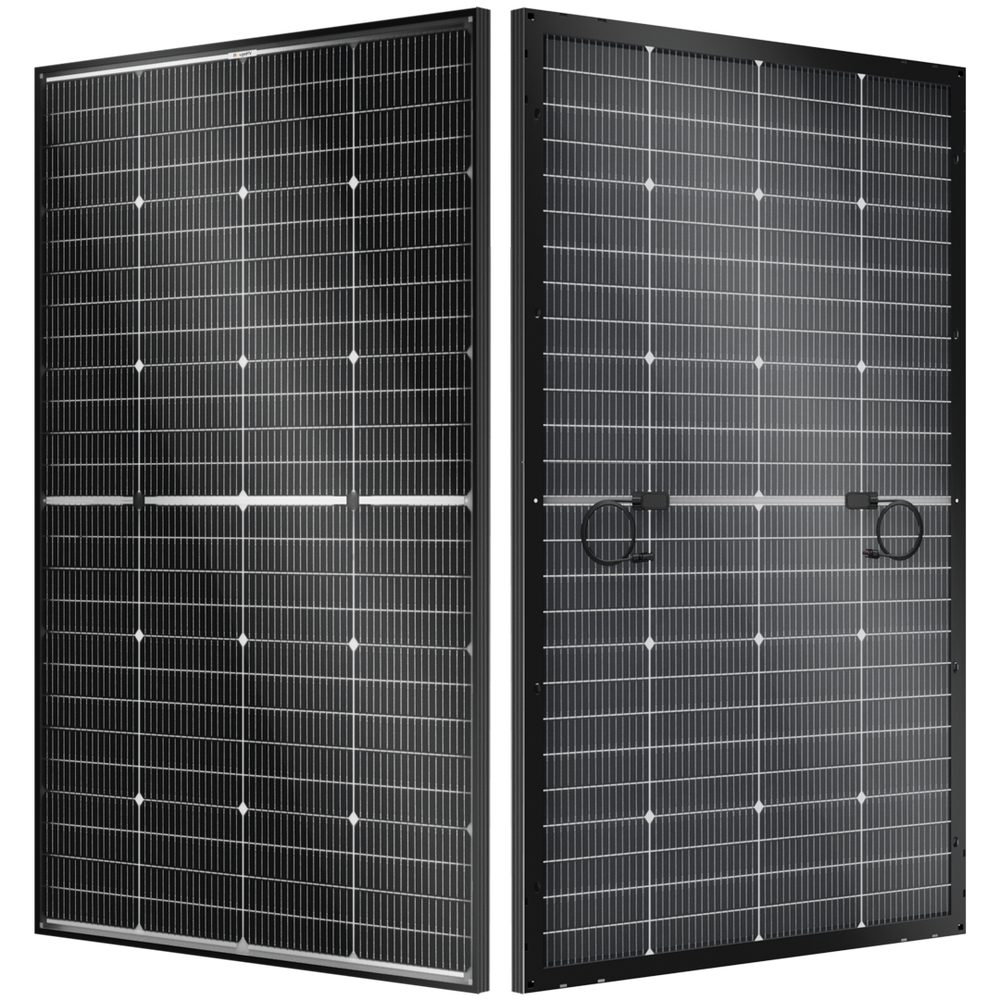

SKU	ISE237	Model	200W SOLAR PANEL
Maximum Power (W)	200±5% W	Product Dimension (IN)	50.67x30.20x1.38 inches
Open Circuit Voltage Voc (V)	36.4±5% V	Series fuse rating	15A
Max Power Voltage Vmp (V)	31.7±5% V	Application Class	Class A
Max Power Current Imp (A)	6.3±5% A	Max Static Load (front)	2400 Pa
Short Circuit Current Isc (A)	6.6±5% A	Max Static Load (back)	2400pa
Solar Cells Efficiency	25%	Max.system voltage(V)	1000V DC
Weight	22.5lb	Product Type	Bifacial Solar Panel
Product Warranty	10 Years	Performance Warranty	30 years

SKU	ISE237
Maximum Power (W)	200±5% W
Open Circuit Voltage Voc (V)	36.4±5% V
Max Power Voltage Vmp (V)	31.7±5% V
Max Power Current Imp (A)	6.3±5% A
Short Circuit Current Isc (A)	6.6±5% A
Solar Cells Efficiency	25%
Weight	22.5lb
Product Warranty	10 Years
Performance Warranty	30 years
Product Dimension (IN)	50.67x30.20x1.38 inches
Series fuse rating	15A
Max Static Load (front)	2400 Pa
Max Static Load (back)	2400pa
Product Type	Bifacial Solar Panel

SKU	ISE218
System Voltage	12V/24V	Battery Type	LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current	40 Amp	Grounding Type	Common Negative
Maximum PV Input Voltage	100V (95V protection, 90V recovery)	Operating Temperature Range	-31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System	600W/12V; 1200W/24V	Protection Grade	IP34
Rated Load Current	20 Amp	Bluetooth Communication	built-in bluetooth
Charge Current Ajust Range	0 Amp to 40 Amp	Data Storage	Save the last 200 days of historical data
Battery Operate Voltage Range	8V to 32V	Dimension	8.94L6.26W2.95 inches
No Load Loss	≤10mA	Weight	3.95 lbs
Product Warranty	18-month	Product Type	Solar Charge Controller

SKU	ISE218
System Voltage	12V/24V
Rated Charging Current	40 Amp
Maximum PV Input Voltage	100V (95V protection, 90V recovery)
Maximum Input of PV System	600W/12V; 1200W/24V
Rated Load Current	20 Amp
Charge Current Ajust Range	0 Amp to 40 Amp
Battery Operate Voltage Range	8V to 32V
No Load Loss	≤10mA
Battery Type	LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type	Common Negative
Operating Temperature Range	-31℉ to 149℉ (-35℃ to 65℃)
Protection Grade	IP34
Bluetooth Communication	built-in bluetooth
Data Storage	Save the last 200 days of historical data
Dimension	8.94L6.26W2.95 inches
Weight	3.95 lbs
Product Warranty	18-month

User Manual

Reviews

FAQ

Unlike traditional solar panels that only have one active side, a bifacial solar panel is a type of photovoltaic panel that is designed to capture sunlight from both sides, front and rear.

Bifacial solar panels are more efficient and generate more energy compared to monofacial solar panels, because they can produce power from both sides of the panel.

Yes, 200 watt bifacial solar panels are worth it. Bifacial solar panels have the ability to generate electricity from both sides, utilizing direct sunlight, refracted sunlight, and diffuse sunlight. This can increase their overall energy production.

If you order two 200 watt bifacial solar panels, they will come in two separate packages. BougeRV will provide you with a tracking number once they have been shipped out.

Unfortunately, the 200 watt double sided solar panel does not come with a Y-branch parallel connector. However, you can search for "Solar Y Branch Connector 1 to 3" on our website if you need one.

Yes, the IP67 connector is waterproof.

No, BougeRV 200 watt bifacial differ from traditional solar panels by having solar cells on both sides instead of just one side.

We suggest using a tilt mount bracket with these 200 watt bifacial solar panels, as they can absorb sunlight efficiently regardless of the sun's movement, eliminating the need for constant adjustment.
