FEATURES PRODUCT

BougeRV Arch 2.0 200W N-Type Fiberglass Flexible Solar Panel

N-Type TOPCon 270° Flexible 16BB Tech Compact & Lightweight 25% Efficiency Upgrade

$219.99 $279.99 Save $60.00
/

BougeRV Arch 2.0 200W N-Type Fiberglass Flexible Solar Panel delivers an optimal balance of efficiency, durability, and portability—engineered specifically for off-grid living, RVs, marine applications, and overlanding adventures.

Upgraded from the original Arch series, this next-generation panel integrates advanced N-type TOPCon solar cell technology, achieving up to 25% conversion efficiency for superior energy yield and more stable power output in real-world conditions. The enhanced 16-busbar (16BB) design—an upgrade from conventional 10BB structures—improves electrical conductivity, reduces resistive losses, and enhances overall module reliability.

Built with a reinforced fiberglass backing, the Arch 2.0 combines structural strength with lightweight flexibility, making it easy to transport and install. With an impressive 270° bend capability, it conforms seamlessly to curved surfaces such as RV roofs, boat decks, and uneven terrains. Its low-profile design and simplified installation system ensure a fast, secure setup, making it an ideal solar solution for demanding outdoor and mobile energy applications.

Read more » Fold up »
Buy More,Save More

Pay With Ease:

Payments icons
BougeRV Free Local Shipping
BougeRV Customer Support
BougeRV Hassle Free Warranty
BougeRV Guarantee
  • Features
  • Tech Specs
  • Reviews
  • FAQS

From P-Type Generation to N-Type TOPCon Solar Evolution

What’s Upgraded in Arch 2.0?

Arch 2.0 delivers a clear performance upgrade over previous panels and conventional flexible solar solutions. It features higher-efficiency N-type cells reaching up to 25% conversion efficiency, improved power output for better energy harvest under the same sunlight, and enhanced waterproof protection designed for demanding outdoor environments. From cell technology to real-world durability, every core element has been refined to provide more reliable and efficient off-grid power.

Not all solar panels are built the same. Arch 2.0 upgrades to advanced N-type cells, reaching up to 25% efficiency—higher than traditional P-type panels that typically stay around 23% or less.That means more power from the same sunlight, especially when space is limited on your RV or rooftop.

We’ve moved from standard 10 busbars to a refined 16BB design. This upgrade improves current flow across the panel, reducing energy loss and delivering more consistent performance throughout the day—whether you're charging on the road or off-grid.

Arch 2.0 doesn’t just produce more—it performs better when it matters. With an additional ~3W output and an improved temperature coefficient of -0.39%/°C, it minimizes power loss in high temperatures. So even under strong summer sun, you still get reliable energy when you need it most.

Designed for real-world use, this panel keeps things efficient without adding bulk. At just 8.8 lbs and sized at 53.3 × 30.9 inches, it's easy to carry, mount, and integrate into your setup—perfect for RVs, campers, and off-grid systems.

N-Type TOPCon solar panel with 25% high efficiency cells

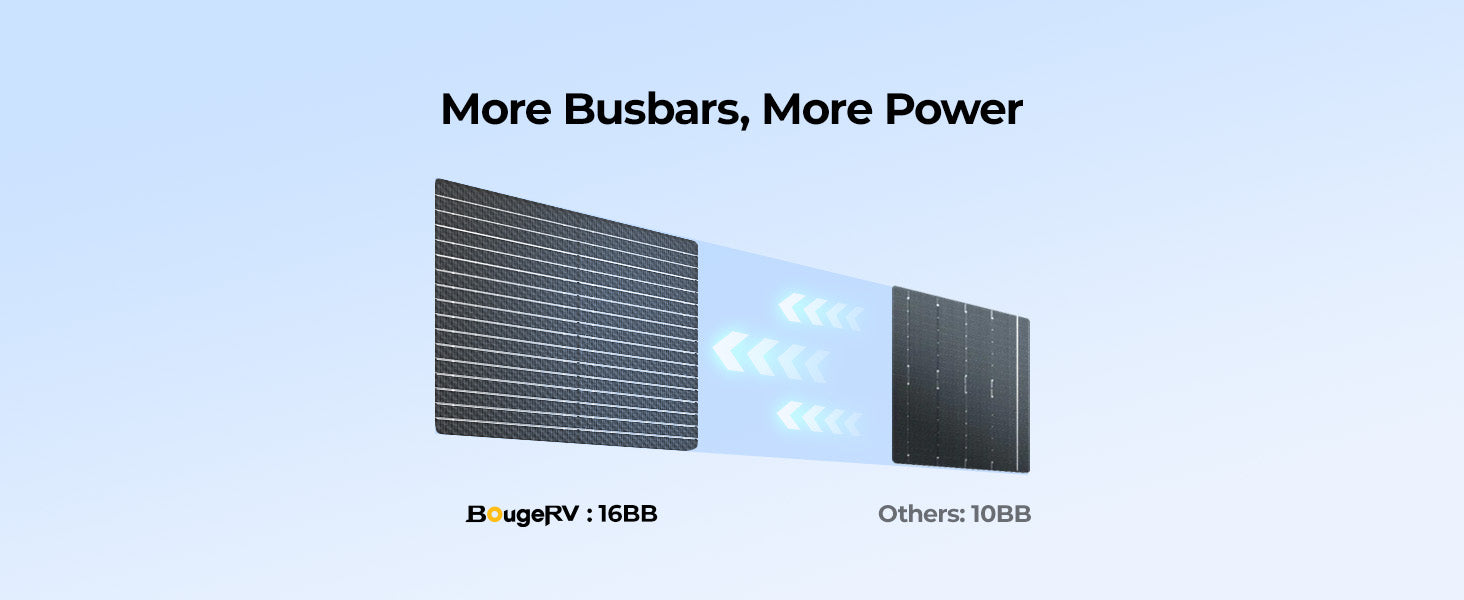

16BB N-Type flexible solar panel stable high power output

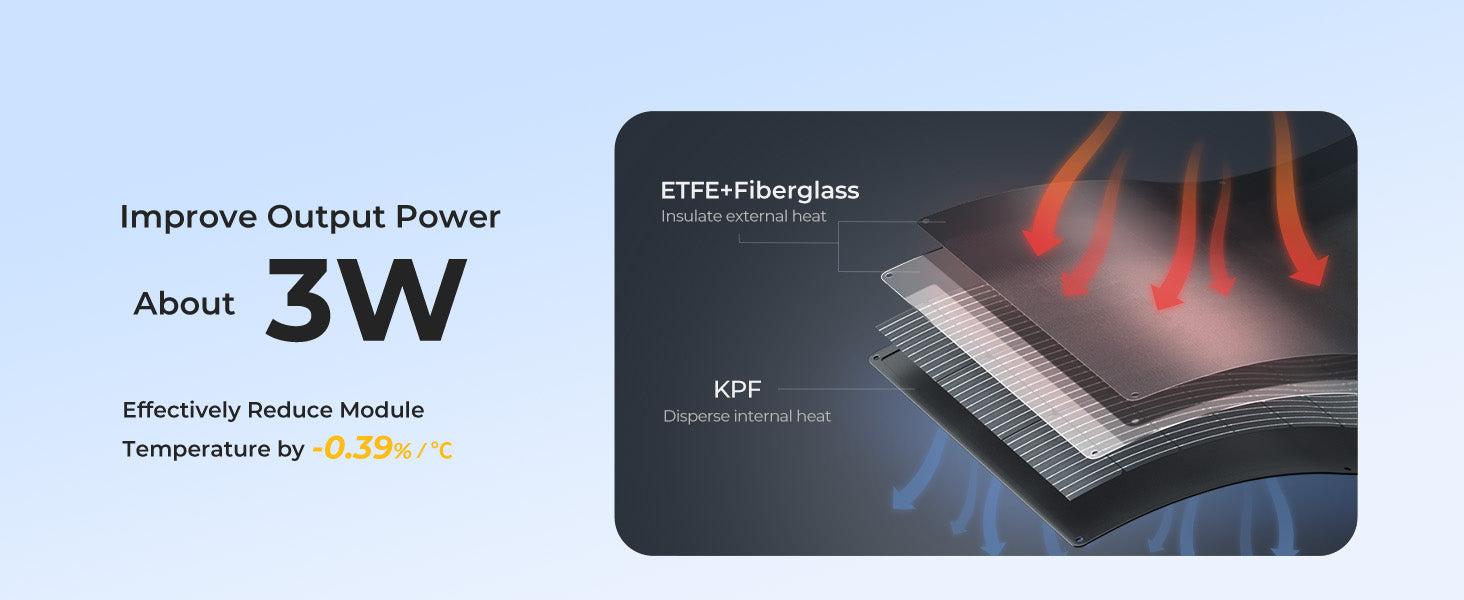

high performance solar panel working efficiently in hot weather
lightweight flexible solar panel for RV camping and outdoor use

MORE FEATURES

Multilayered packaging solution for BougeRV Arch Pro solar panels

POWER WHEREVER YOU GO

From open water to remote trails, Arch 2.0 is built to keep you powered without compromise. Whether you're sailing offshore, setting up a rooftop tent under shifting light, or running a fully off-grid RV system, it delivers consistent, efficient energy in real-world conditions. Designed to handle heat, limited space, and unpredictable environments, it’s a reliable choice for marine applications, rooftop camping, and off-grid living—so you can focus less on power and more on the journey ahead.

Product Specifications

SKU ISE230N Version Upgrade
Max Power (Pmax) 200±5%W Operating Temperature Limits

-40℉ ~ +185℉
Solar Cells Efficiency 25% Series Fuse Rating 15A
Max. Power Voltage Vmp (V) 24±5% V Temperature Coefficient Pmax -0.35%/K
Max. Power Current Imp (A) 8.34±5% A Temperature Coefficient Voc -0.3%/K
Open Circuit Voltage Voc (V) 28±5% V Temperature Coefficient Isc +0.048%/K
Short Circuit Current (Isc) 8.75±5% A Dimensions 53.0*30.9*0.1 inches
Power output warranty 25 years 80% output warranty Weight 8.8 lbs
Material & workmanship warranty 5 Years Product Type Curved Solar Panels
SKU ISE230N
Max Power (Pmax) 200±5%W
Solar Cells Efficiency 25%
Max. Power Voltage Vmp (V) 24V±5%
Max. Power Current Imp (A) 8.34A±5%
Open Circuit Voltage Voc (V) 28V±5%
Short Circuit Current (Isc) 8.75A±5%
Max. System Voltage 1000V DC
Material & workmanship warranty 5 Years
Operating Temperature Limits -40℉ ~ +185℉
Power output warranty 25 year 80% output warranty
Temperature Coefficient Pmax -0.35%/K
Temperature Coefficient Voc -0.3%/K
Temperature Coefficient Isc -0.048%/K
Dimensions 53.0*30.9*0.1 inches
Weight 8.8lbs

Compare Specs & Find Your Best Fit

Easily compare voltage, size, and weight across models to choose the panel that fits your setup perfectly.

BougeRV Arch 2.0 200W N-Type Fiberglass Flexible Solar Panel

Arch 2.0 200W

$219.99 $279.99
BougeRV Arch 200 Watt Fiberglass Flexible Curved Solar Panel

Arch 200W

$219.99 $279.99
BougeRV Arch Pro 12V/24V Flexible Solar Panel

TOPCon Arch Pro 200W

$269.99 $299.99
200W CIGS solar panels

Yuma 200W Adhesive

$469.99 $599.99
200W CIGS flexible solar panel with pre-punched holes

Yuma 200W Pre-Punched

$409.99 $579.99
200W CIGS solar panels

Yuma 200W Adhesive

$469.99 $599.99
BougeRV Arch Pro 12V/24V Flexible Solar Panel

TOPCon Arch Pro 200W

$269.99 $299.99
BougeRV Arch 2.0 200W N-Type Fiberglass Flexible Solar Panel

Arch 2.0 200W

$219.99 $279.99
BougeRV Arch Pro 12V/24V Flexible Solar Panel

TOPCon Arch Pro 200W

$269.99 $299.99
200W CIGS solar panels

Yuma 200W Adhesive

$469.99 $599.99
BougeRV Arch 200 Watt Fiberglass Flexible Curved Solar Panel

Arch 200W

$219.99 $279.99
BougeRV Arch 2.0 200W N-Type Fiberglass Flexible Solar Panel

Arch 2.0 200W

$219.99 $279.99
200W CIGS solar panels

Yuma 200W Adhesive

$469.99 $599.99
BougeRV Arch Pro 12V/24V Flexible Solar Panel

TOPCon Arch Pro 200W

$269.99 $299.99
BougeRV Arch 200 Watt Fiberglass Flexible Curved Solar Panel

Arch 200W

$219.99 $279.99
BougeRV Arch 2.0 200W N-Type Fiberglass Flexible Solar Panel

Arch 2.0 200W

$219.99 $279.99
200W CIGS flexible solar panel with pre-punched holes

Yuma 200W Pre-Punched

$409.99 $579.99
Rated Power (W)
200W±5%
Rated Power (W)
200±5%W
Rated Power (W)
200±5％W
Rated Power (W)
200±5％W
Rated Power (W)
200±5％W
Rated Power (W)
200±5％W
Rated Power (W)
200±5％W
Rated Power (W)
200W±5%
Rated Power (W)
200±5％W
Rated Power (W)
200±5％W
Rated Power (W)
200±5%W
Rated Power (W)
200W±5%
Rated Power (W)
200±5％W
Rated Power (W)
200±5％W
Rated Power (W)
200±5%W
Rated Power (W)
200W±5%
Rated Power (W)
200±5％W
Maximum Power Voltage Vmp (V)
24V±5%
Maximum Power Voltage Vmp (V)
17.1V±5%
Maximum Power Voltage Vmp (V)
31.1V±5%
Maximum Power Voltage Vmp (V)
24V±5%
Maximum Power Voltage Vmp (V)
24V±5%
Maximum Power Voltage Vmp (V)
24V±5%
Maximum Power Voltage Vmp (V)
31.1V±5%
Maximum Power Voltage Vmp (V)
24V±5%
Maximum Power Voltage Vmp (V)
31.1V±5%
Maximum Power Voltage Vmp (V)
24V±5%
Maximum Power Voltage Vmp (V)
17.1V±5%
Maximum Power Voltage Vmp (V)
24V±5%
Maximum Power Voltage Vmp (V)
24V±5%
Maximum Power Voltage Vmp (V)
31.1V±5%
Maximum Power Voltage Vmp (V)
17.1V±5%
Maximum Power Voltage Vmp (V)
24V±5%
Maximum Power Voltage Vmp (V)
24V±5%
Maximum Power Current (A)
8.34A±5%
Maximum Power Current (A)
11.7A±5%
Maximum Power Current (A)
6.43A±5%
Maximum Power Current (A)
8.52A±5%
Maximum Power Current (A)
8.52A±5%
Maximum Power Current (A)
8.52A±5%
Maximum Power Current (A)
6.43A±5%
Maximum Power Current (A)
8.34A±5%
Maximum Power Current (A)
6.43A±5%
Maximum Power Current (A)
8.52A±5%
Maximum Power Current (A)
11.7A±5%
Maximum Power Current (A)
8.34A±5%
Maximum Power Current (A)
8.52A±5%
Maximum Power Current (A)
6.43A±5%
Maximum Power Current (A)
11.7A±5%
Maximum Power Current (A)
8.34A±5%
Maximum Power Current (A)
8.52A±5%
Open-Circuit Voltage Voc (V)
28V±5%
Open-Circuit Voltage Voc (V)
20.1V±5%
Open-Circuit Voltage Voc (V)
36.4V±5%
Open-Circuit Voltage Voc (V)
30.4V±5%
Open-Circuit Voltage Voc (V)
30.4V±5%
Open-Circuit Voltage Voc (V)
30.4V±5%
Open-Circuit Voltage Voc (V)
36.4V±5%
Open-Circuit Voltage Voc (V)
28V±5%
Open-Circuit Voltage Voc (V)
36.4V±5%
Open-Circuit Voltage Voc (V)
30.4V±5%
Open-Circuit Voltage Voc (V)
20.1V±5%
Open-Circuit Voltage Voc (V)
28V±5%
Open-Circuit Voltage Voc (V)
30.4V±5%
Open-Circuit Voltage Voc (V)
36.4V±5%
Open-Circuit Voltage Voc (V)
20.1V±5%
Open-Circuit Voltage Voc (V)
28V±5%
Open-Circuit Voltage Voc (V)
30.4V±5%
Short-Circuit Current Isc (A)
8.75A±5%
Short-Circuit Current Isc (A)
12.28A±5%
Short-Circuit Current Isc (A)
6.7A±5%
Short-Circuit Current Isc (A)
9.48A±5%
Short-Circuit Current Isc (A)
9.48A±5%
Short-Circuit Current Isc (A)
9.48A±5%
Short-Circuit Current Isc (A)
6.7A±5%
Short-Circuit Current Isc (A)
8.75A±5%
Short-Circuit Current Isc (A)
6.7A±5%
Short-Circuit Current Isc (A)
9.48A±5%
Short-Circuit Current Isc (A)
12.28A±5%
Short-Circuit Current Isc (A)
8.75A±5%
Short-Circuit Current Isc (A)
9.48A±5%
Short-Circuit Current Isc (A)
6.7A±5%
Short-Circuit Current Isc (A)
12.28A±5%
Short-Circuit Current Isc (A)
8.75A±5%
Short-Circuit Current Isc (A)
9.48A±5%
Bypass Diode(s)
1
Bypass Diode(s)
1
Bypass Diode(s)
28
Bypass Diode(s)
24
Bypass Diode(s)
24
Bypass Diode(s)
24
Bypass Diode(s)
28
Bypass Diode(s)
1
Bypass Diode(s)
28
Bypass Diode(s)
24
Bypass Diode(s)
1
Bypass Diode(s)
1
Bypass Diode(s)
24
Bypass Diode(s)
28
Bypass Diode(s)
1
Bypass Diode(s)
1
Bypass Diode(s)
24
Dimensions
53.0×30.9×0.1 in
Dimensions
58.1×31×0.08 in
Dimensions
53×31×0.01 in
Dimensions
82.2×26.0×0.06 in
Dimensions
82.8×27.1×0.06 in
Dimensions
82.2×26.0×0.06 in
Dimensions
53×31×0.01 in
Dimensions
53.0×30.9×0.1 in
Dimensions
53×31×0.01 in
Dimensions
82.2×26.0×0.06 in
Dimensions
58.1×31×0.08 in
Dimensions
53.0×30.9×0.1 in
Dimensions
82.2×26.0×0.06 in
Dimensions
53×31×0.01 in
Dimensions
58.1×31×0.08 in
Dimensions
53.0×30.9×0.1 in
Dimensions
82.8×27.1×0.06 in
Weight
8.8 Ib
Weight
7.05 lb
Weight
7.9 lb
Weight
8.44 lb
Weight
5.95 lb
Weight
8.44 lb
Weight
7.9 lb
Weight
8.8 Ib
Weight
7.9 lb
Weight
8.44 lb
Weight
7.05 lb
Weight
8.8 Ib
Weight
8.44 lb
Weight
7.9 lb
Weight
7.05 lb
Weight
8.8 Ib
Weight
5.95 lb
Mounting Method
Adhesive,Pre-Punched
Mounting Method
Adhesive,Pre-Punched
Mounting Method
Adhesive,Pre-Punched
Mounting Method
Adhesive
Mounting Method
Pre-Punched
Mounting Method
Adhesive
Mounting Method
Adhesive,Pre-Punched
Mounting Method
Adhesive,Pre-Punched
Mounting Method
Adhesive,Pre-Punched
Mounting Method
Adhesive
Mounting Method
Adhesive,Pre-Punched
Mounting Method
Adhesive,Pre-Punched
Mounting Method
Adhesive
Mounting Method
Adhesive,Pre-Punched
Mounting Method
Adhesive,Pre-Punched
Mounting Method
Adhesive,Pre-Punched
Mounting Method
Pre-Punched

User Manual

https://cdn.shopify.com/s/files/1/2672/9544/files/200W_12V_9BB_Cells_Mono_Solar_Panel_User_Manuals.pdf
https://cdn.shopify.com/s/files/1/2672/9544/files/200W_12V_9BB_Cells_Mono_Solar_Panel_User_Manuals.pdf

Reviews

FAQs

Arch Plus features N-Type TOPCon cells with 25% efficiency and 16BB busbars, delivering higher energy output and durability than standard Arch panels.

N-Type TOPCon cells offer higher efficiency (up to 25%), better low-light performance, and reduced power degradation compared to conventional P-Type panels.

Yes, it is flexible up to 270°, making it perfect for curved surfaces like RV roofs, boats, or vans.

The panel is lightweight and compact, weighing 8.8 lbs with dimensions of 53.0 × 30.9 inches. It features a simple mounting system designed for fast, hassle-free installation, supporting adhesive tape, industrial glue, or hardware mounting via 6 × 8mm mounting holes, making setup quick and flexible for RVs, vans, and off-grid applications.

Yes! With an open-circuit voltage (Voc) of 28V±5%, Arch Plus is compatible with most 24V off-grid systems, especially when paired with an MPPT charge controller for optimal charging efficiency.

No, it is not recommended. Arch ordinary panels (Voc 20.1V±5%) and Arch Plus panels (Voc 28V±5%) have significantly different voltages. Connecting them in series or parallel will reduce charging efficiency and can prevent proper system performance. For best results, use panels of the same model.
