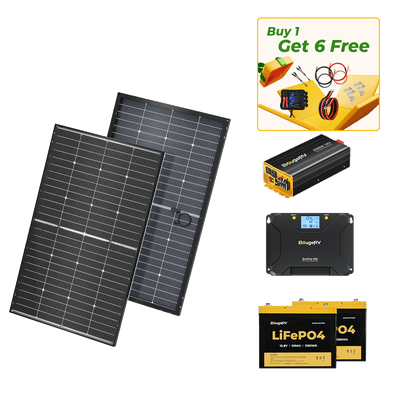

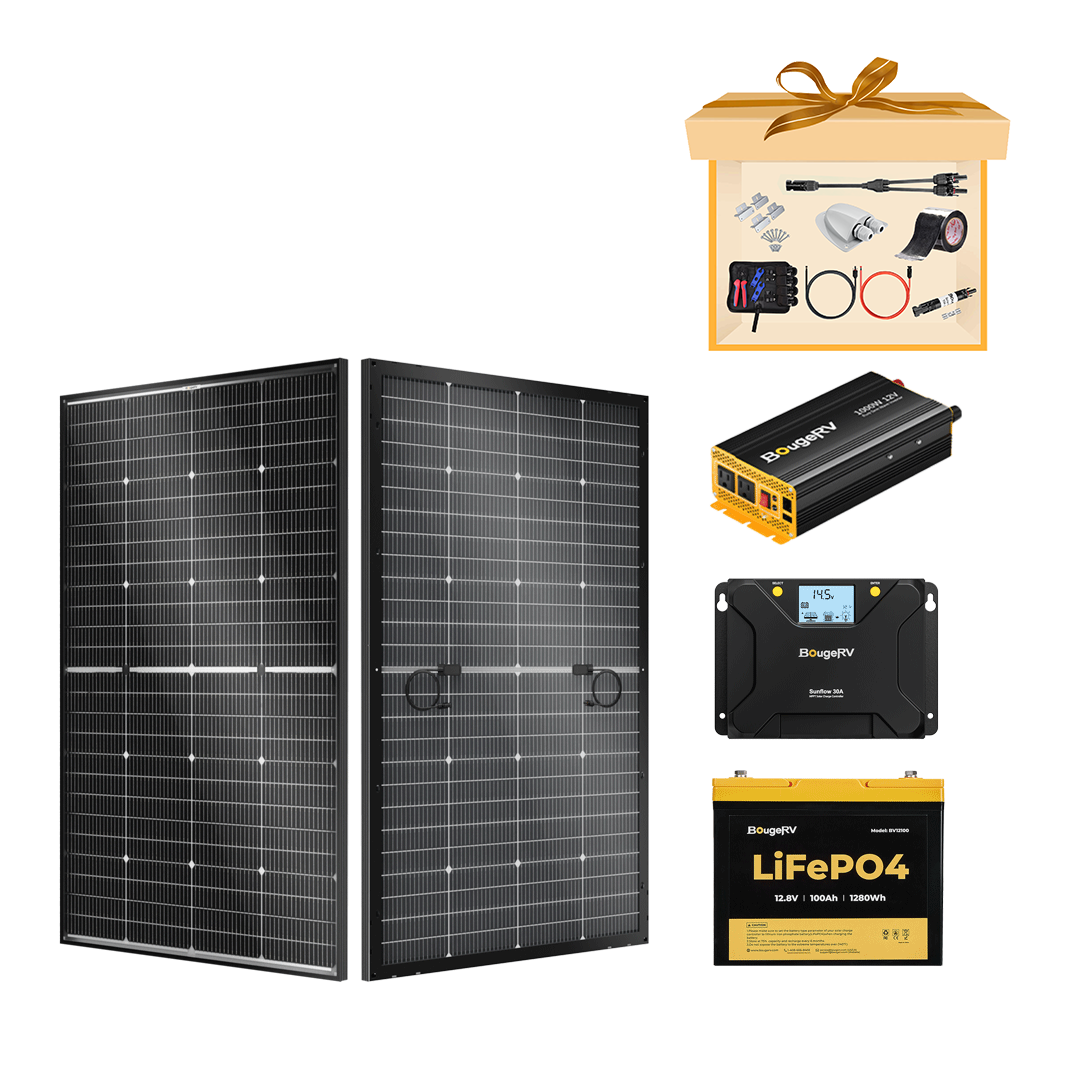

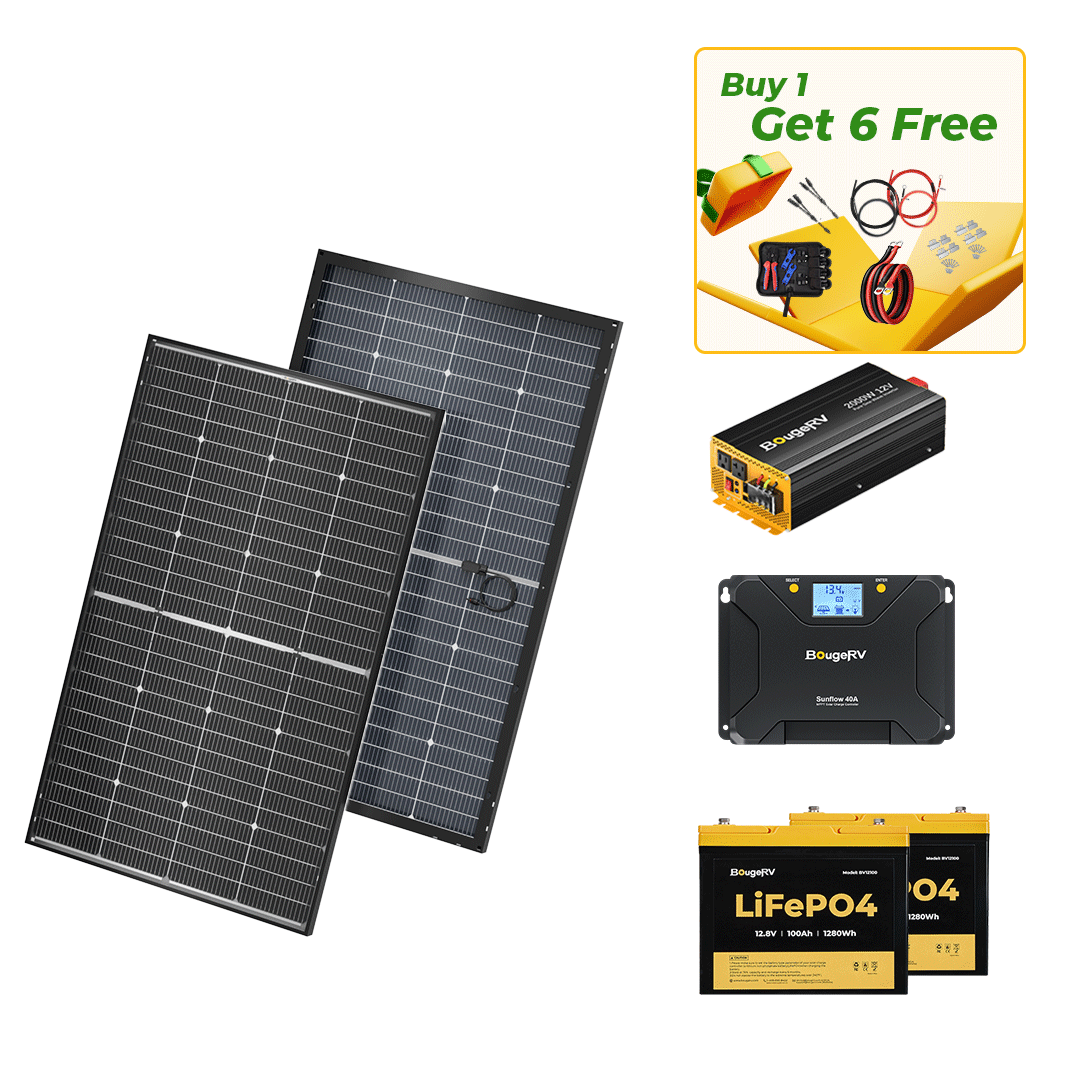

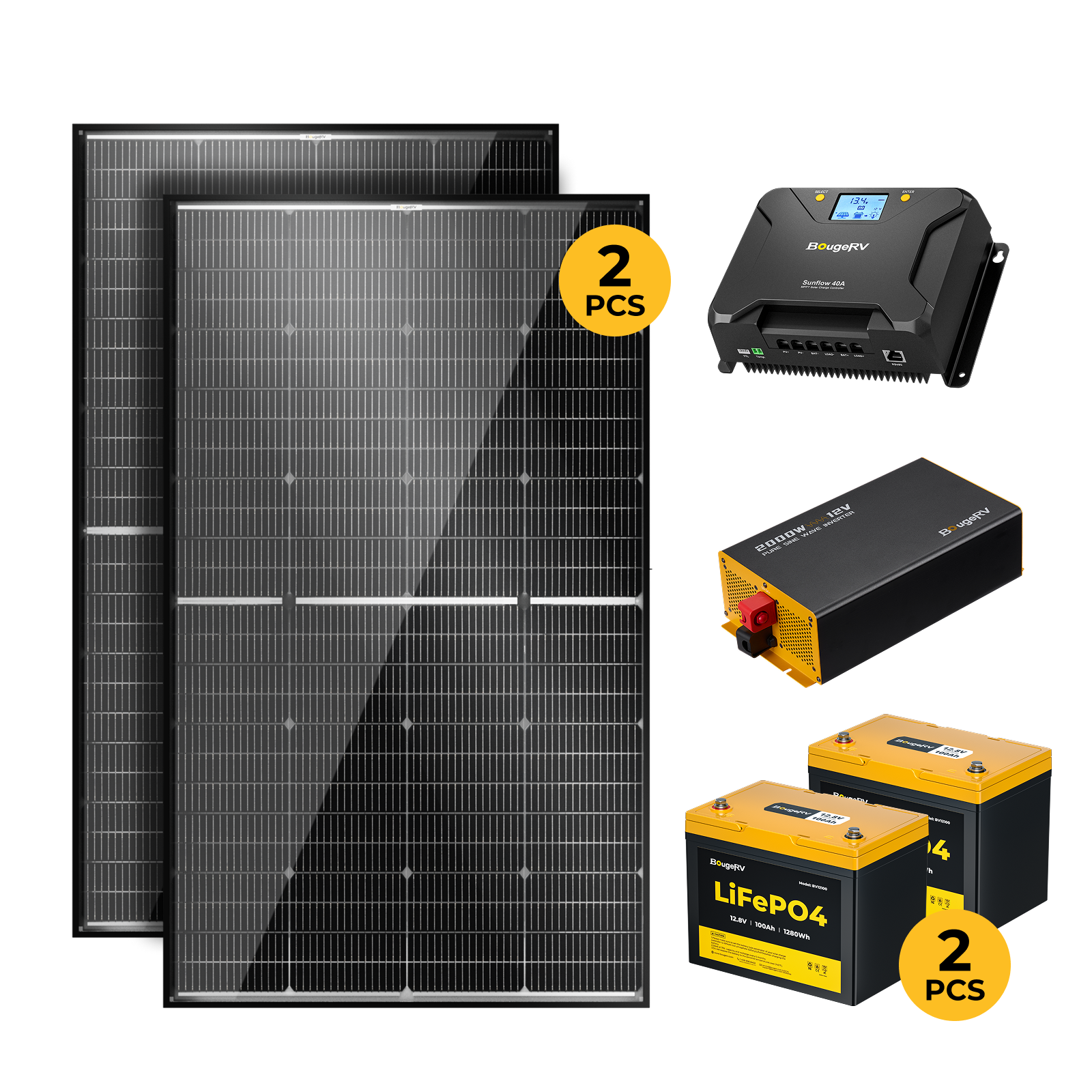

Package Included
- 2PCS BougeRV 16BB N-Type 200 Watt Bifacial Solar Panel
- 1PC BougeRV Sunflow 40A MPPT Solar Charge Controller 12V/24V
- 2PCS 12V 100Ah LiFePO4 Battery
- 1PC 2000W 12V Pure Sine Wave Inverter
Features
HIGHLIGHTS
BougeRV Sunflow 40A MPPT solar charge controller features low-temp cut-off charging (below 32℉) to protect your LiFePO4 battery, it can also restart or activate dormant 12V or 24V LiFePO4 batteries turned off due to short circuits or over-discharged.
BougeRV Sunflow 40 Amp MPPT controller can adjust the charge current from 0A to 40A. BougeRV charge controller for solar panels, its high tracking efficiency is up to 99.5%, peak conversion efficiency is up to 99%, maximizing the solar panels' output. Adopting quality aluminum heat sink, the battery regulator can dissipate heat better and minimize the power lost under full load working.
Certified by CE and RoHS. BougeRV 40A MPPT renewable energy controller features a dual MOS circuit to prevent the reverse current and reduce the heat in operation. With 6 protections, over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention circuit, flow backward of current protections.

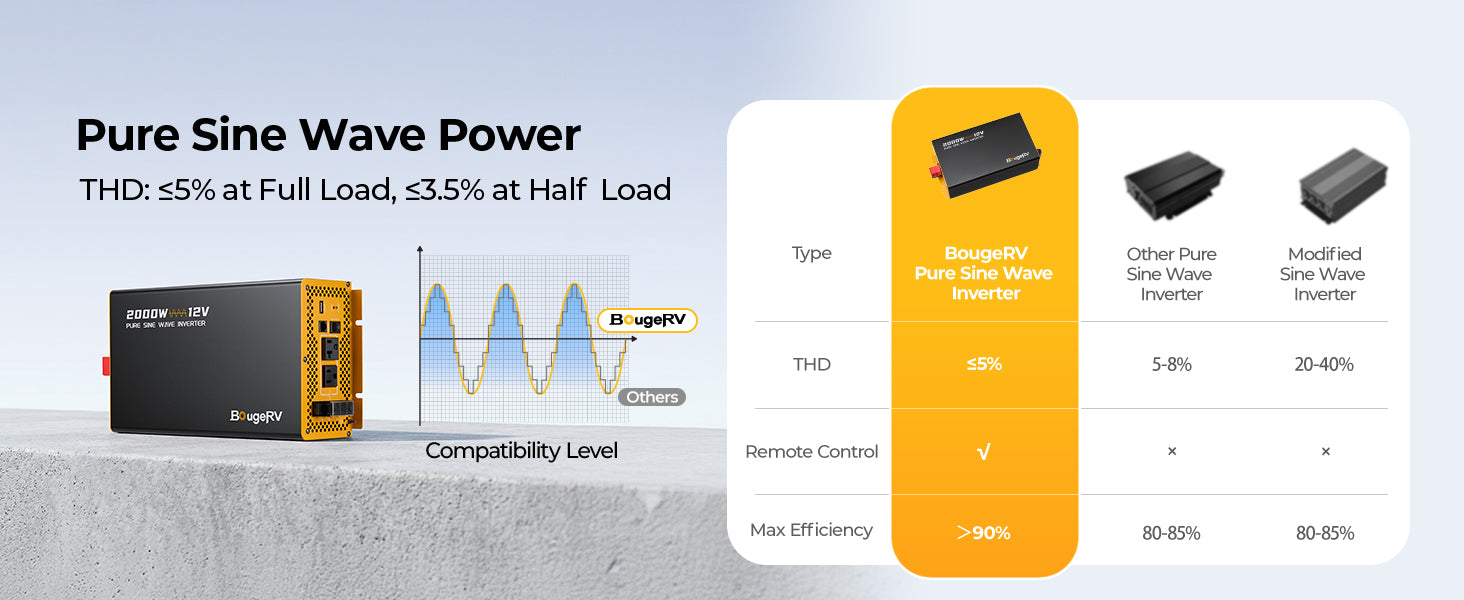

The pure sine wave inverter provides pure power, with low distortion rate (≤3%), lower power consumption and high conversion efficiency (>85%). Pure sine wave inverters keep voltage and current at safe levels, which is extending the life of appliances. Pure sine wave inverter always makes less noise than modified sine wave inverter.
Using BougeRV solar inverter, user can monitor operating data of applicances in real-time. Let users know the situation of applicance cclearly, which includs: input and output voltage, frequency, battery power, output power wattage, output waveform, inverter working status and other data.

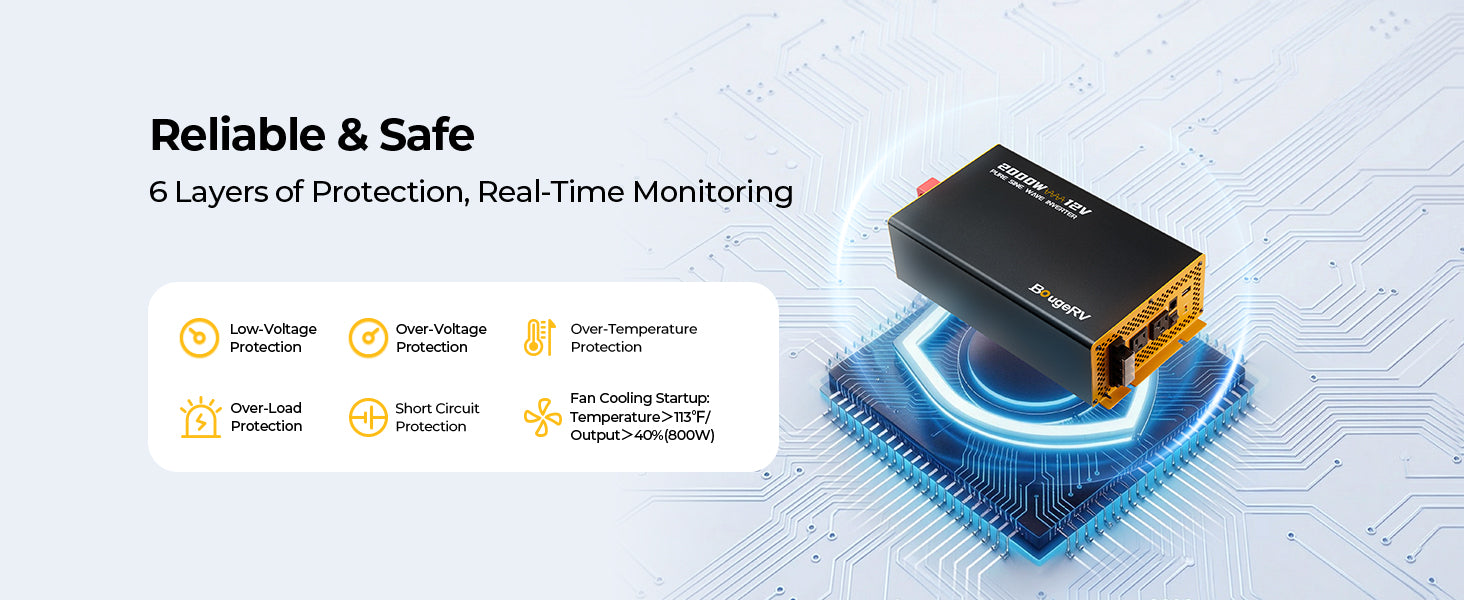

7 multiple protection function: Input low voltage protection, Input over voltage protection, Input overload protection, Short-circuit protection, Over temperature protection, Reverse connection protection. Always monitor and protect circuit safety through LED indicator and alarm sound.
User can controll the inverter via the 3M wired remote controller and can install it in RVs and houses for their need. There are multiple output ports on the BougeRV pure sine wave inverter: a 5V/2.1A USB interface, 3 AC output outlets, a network interface.BougeRV pure sine wave inverter comes with an 2-year warranty that commences from the date of purchase.
With 2 high-speed cooling fans, BougeRV pure sine wave inverter can control temperature intelligently, which will open at high working temperature, and close at nomal temperature.
Supporting Up to 16 Batteries in a Series-Parallel pack, the Max expandable capacity of the battery can up to 20480Wh, while it will also maintain a balanced voltage across all cells to keep the charging and discharging safe.
BougeRV LiFePO4 is only 27lbs weight, 50% lighter than a lead-acid battery with same capacity. Comes with 4 fixable holes, you can install the screw and fix the battery stably for RVs, Marine and Off-Grid Applications, it will not slide. You can also move the lithium battery easily with grabbing its handles on both side.
BougeRV lithium battery supports the max charge current can up to 1C (100A), which means you the battery can be full charged within 1 hours. It has built-in BMS protection, made of premium aluminum case, to keep your charge safer. Features overcharge, over-discharge, over-current and short circuit protection.
Supporting Up to 16 Batteries in a Series-Parallel pack, the Max expandable capacity of the battery can up to 20480Wh, while it will also maintain a balanced voltage across all cells to keep the charging and discharging safe.
BougeRV LiFePO4 is only 27lbs weight, 50% lighter than a lead-acid battery with same capacity. Comes with 4 fixable holes, you can install the screw and fix the battery stably for RVs, Marine and Off-Grid Applications, it will not slide. You can also move the lithium battery easily with grabbing its handles on both side.
BougeRV lithium battery supports the max charge current can up to 1C (100A), which means you the battery can be full charged within 1 hours. It has built-in BMS protection, made of premium aluminum case, to keep your charge safer. Features overcharge, over-discharge, over-current and short circuit protection.
Product Specifications
| SKU | ISE237 | Model | 200W SOLAR PANEL |
|---|---|---|---|
| Maximum Power (W) | 200±5% W | Product Dimension (IN) | 50.67x30.20x1.38 inches |
| Open Circuit Voltage Voc (V) | 36.4±5% V | Series fuse rating | 15A |
| Max Power Voltage Vmp (V) | 31.7±5% V | Application Class | Class A |
| Max Power Current Imp (A) | 6.3±5% A | Max Static Load (front) | 2400 Pa |
| Short Circuit Current Isc (A) | 6.6±5% A | Max Static Load (back) | 2400pa |
| Solar Cells Efficiency | 25% | Max.system voltage(V) | 1000V DC |
| Weight | 22.5lb | Product Type | Bifacial Solar Panel |
| Product Warranty | 10 Years | Performance Warranty | 30 years |
| SKU | ISE237 | Model | 200W SOLAR PANEL |
|---|---|---|---|
| Maximum Power (W) | 200±5% W | Product Dimension (IN) | 50.67x30.20x1.38 inches |
| Open Circuit Voltage Voc (V) | 36.4±5% V | Series fuse rating | 15A |
| Max Power Voltage Vmp (V) | 31.7±5% V | Application Class | Class A |
| Max Power Current Imp (A) | 6.3±5% A | Max Static Load (front) | 2400 Pa |
| Short Circuit Current Isc (A) | 6.6±5% A | Max Static Load (back) | 2400pa |
| Solar Cells Efficiency | 25% | Max.system voltage(V) | 1000V DC |
| Weight | 22.5lb | Product Type | Bifacial Solar Panel |
| Product Warranty | 10 Years | Performance Warranty | 30 years |
| SKU | ISE237 |
|---|---|
| Maximum Power (W) | 200±5% W |
| Open Circuit Voltage Voc (V) | 36.4±5% V |
| Max Power Voltage Vmp (V) | 31.7±5% V |
| Max Power Current Imp (A) | 6.3±5% A |
| Short Circuit Current Isc (A) | 6.6±5% A |
| Solar Cells Efficiency | 25% |
| Weight | 22.5lb |
| Product Warranty | 10 Years |
| Performance Warranty | 30 years |
| Product Dimension (IN) | 50.67x30.20x1.38 inches |
| Series fuse rating | 15A |
| Max Static Load (front) | 2400 Pa |
| Max Static Load (back) | 2400pa |
| Product Type | Bifacial Solar Panel |
| SKU | ISE218 | ||
|---|---|---|---|
| System Voltage | 12V/24V | Battery Type | LiFePO4, SLD, GEL, FLD, AGM, User Defined |
| Rated Charging Current | 40 Amp | Grounding Type | Common Negative |
| Maximum PV Input Voltage | 100V (95V protection, 90V recovery) | Operating Temperature Range | -31℉ to 149℉ (-35℃ to 65℃) |
| Maximum Input of PV System | 600W/12V; 1200W/24V | Protection Grade | IP34 |
| Rated Load Current | 20 Amp | Bluetooth Communication | built-in bluetooth |
| Charge Current Ajust Range | 0 Amp to 40 Amp | Data Storage | Save the last 200 days of historical data |
| Battery Operate Voltage Range | 8V to 32V | Dimension | 8.94L*6.26W*2.95 inches |
| No Load Loss | ≤10mA | Weight | 3.95 lbs |
| Product Warranty | 18-month | Product Type | Solar Charge Controller |
| SKU | ISE218 | ||
|---|---|---|---|
| System Voltage | 12V/24V | Battery Type | LiFePO4, SLD, GEL, FLD, AGM, User Defined |
| Rated Charging Current | 40 Amp | Grounding Type | Common Negative |
| Maximum PV Input Voltage | 100V (95V protection, 90V recovery) | Operating Temperature Range | -31℉ to 149℉ (-35℃ to 65℃) |
| Maximum Input of PV System | 600W/12V; 1200W/24V | Protection Grade | IP34 |
| Rated Load Current | 20 Amp | Bluetooth Communication | built-in bluetooth |
| Charge Current Ajust Range | 0 Amp to 40 Amp | Data Storage | Save the last 200 days of historical data |
| Battery Operate Voltage Range | 8V to 32V | Dimension | 8.94L*6.26W*2.95 inches |
| No Load Loss | ≤10mA | Weight | 3.95 lbs |
| Product Warranty | 18-month | Product Type | Solar Charge Controller |
| SKU | ISE218 |
|---|---|
| System Voltage | 12V/24V |
| Rated Charging Current | 40 Amp |
| Maximum PV Input Voltage | 100V (95V protection, 90V recovery) |
| Maximum Input of PV System | 600W/12V; 1200W/24V |
| Rated Load Current | 20 Amp |
| Charge Current Ajust Range | 0 Amp to 40 Amp |
| Battery Operate Voltage Range | 8V to 32V |
| No Load Loss | ≤10mA |
| Battery Type | LiFePO4, SLD, GEL, FLD, AGM, User Defined |
| Grounding Type | Common Negative |
| Operating Temperature Range | -31℉ to 149℉ (-35℃ to 65℃) |
| Protection Grade | IP34 |
| Bluetooth Communication | built-in bluetooth |
| Data Storage | Save the last 200 days of historical data |
| Dimension | 8.94L*6.26W*2.95 inches |
| Weight | 3.95 lbs |
| Product Warranty | 18-month |

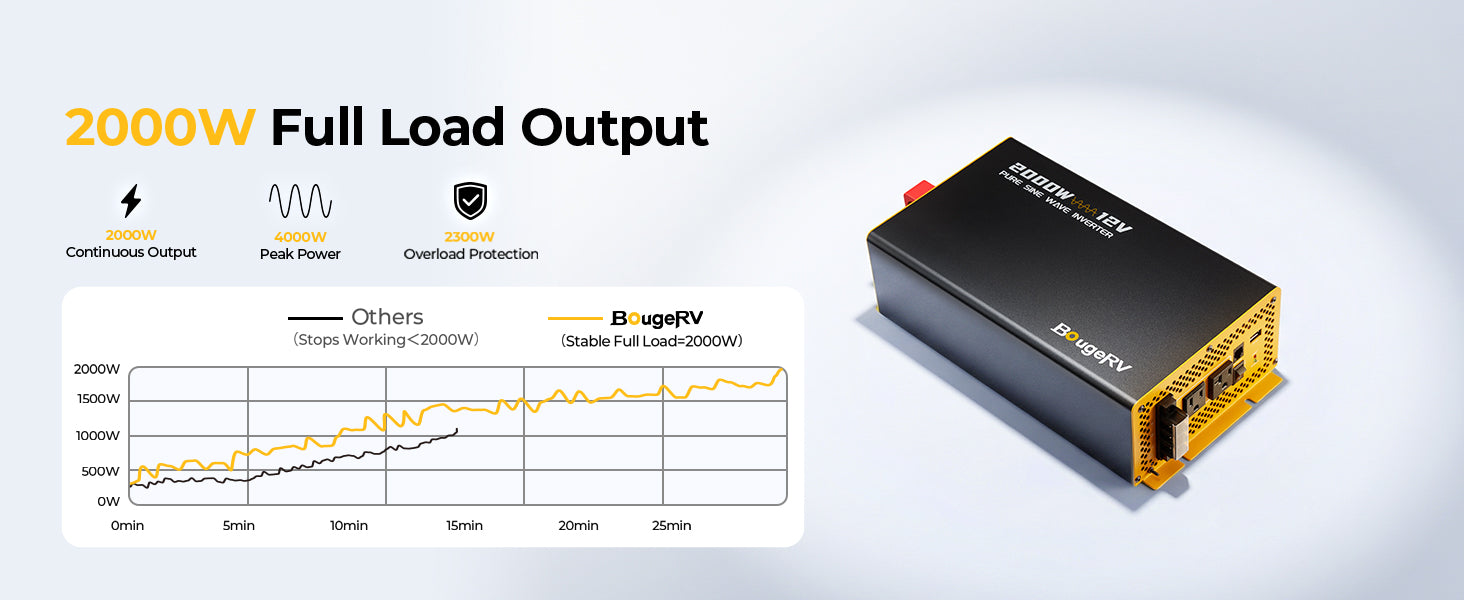

| SKU | ISE174 | . | . |
|---|---|---|---|
| Rated power | 2000W | Output frequency | 60Hz ± 0.5Hz |
| Surge power | 4000W | Efficiency | ＞85% |
| Input voltage | DC 12V | Over voltage shutting | ≥16V |
| Rated output voltage | AC 120V ± 10% | Low voltage shutting | ≤9.5V |
| Loss when no load | <1.2A | Over temperature shutting | >176℉ |
| Output waveform | Pure sine wave | Ambient temperature | 14℉ - 113℉ |
| Product Dimensions | 12.4"L x 8.07"W x 3.54"H | Warranty Description | 18 months |
| SKU | ISE174 | . | . |
|---|---|---|---|
| Rated power | 2000W | Output frequency | 60Hz ± 0.5Hz |
| Surge power | 4000W | Efficiency | ＞85% |
| Input voltage | DC 12V | Over voltage shutting | ≥16V |
| Rated output voltage | AC 120V ± 10% | Low voltage shutting | ≤9.5V |
| Loss when no load | <1.2A | Over temperature shutting | >176℉ |
| Output waveform | Pure sine wave | Ambient temperature | 14℉ - 113℉ |
| Product Dimensions | 12.4"L x 8.07"W x 3.54"H | Warranty Description | 18 months |
| SKU | ISE174 |
|---|---|
| Rated power | 2000W |
| Surge power | 4000W |
| Input voltage | DC 12V |
| Rated output voltage | AC 120V±10% |
| Output frequency | 60Hz ± 0.5% |
| Output waveform | Pure sine wave |
| Rated output efficiency | ＞85% |
| Over voltage shutting | ≥16V |
| Low voltage shutting | ≤9.5V |
| Over temperature shutting | >176℉ |
| Operating ambient temperature | -4°F - 140°F |
| SKU |
ISE176 | |||
|---|---|---|---|---|
| Nominal Voltage | 12.8V | Over-Charge Voltage |
|
|
| Nominal Capacity | 100Ah | Over-Discharge Voltage | 9.40±0.32V | |
| Charge Voltage | 14.1V | Cycle Life | 4000 times (The remaining battery capacity after 4000 cycles is ≥ 80% of the initial battery capacity). | |
| Energy | 1280Wh | Max. Series Voltage Of Packs | 48V | |
| Standard charge | 50A(0.5C) | Max. Parallel Current Of Packs | 400Ah | |
| Rapid charge | 100A（1.0C） | Internal resistance | ≤30mΩ |
| SKU |
ISE176 | |||
|---|---|---|---|---|
| Nominal Voltage | 12.8V | Over-Charge Voltage |
|
|
| Nominal Capacity | 100Ah | Over-Discharge Voltage | 9.40±0.32V | |
| Charge Voltage | 14.1V | Cycle Life | 4000 times (The remaining battery capacity after 4000 cycles is ≥ 80% of the initial battery capacity). | |
| Energy | 1280Wh | Max. Series Voltage Of Packs | 48V | |
| Standard charge | 50A(0.5C) | Max. Parallel Current Of Packs | 400Ah | |
| Rapid charge | 100A（1.0C） | Internal resistance | ≤30mΩ |
| SKU |
ISE176 |
|---|---|
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Charge Voltage | 14.1V |
| Energy | 1280Wh |
| Standard charge | 50A(0.5C) |
| Rapid charge | 100A（1.0C） |
| Over-Charge Voltage | ≥14.8V (Adjust the charging voltage below 14.8V to resume charging) |
| Over-Discharge Voltage | 9.40±0.32V |
| Cycle Life | 4000 times (The remaining battery capacity after 4000 cycles is ≥ 80% of the initial battery capacity). |
| Max. Series Voltage Of Packs | 48V |
| Max. Parallel Current Of Packs | 400Ah |
| Internal resistance | ≤30mΩ |
Reviews
FAQ
A1: If you order two panels, they will come in two separate packages. BougeRV will provide you with a tracking number once they have been shipped out.
A2: Unfortunately, the 200 watt solar panel does not come with a Y-branch parallel connector. However, you can search for "Solar Y Branch Connector 1 to 3" on our website if you need one.
A3: Yes, the IP67 connector is waterproof.
A4: The advantages of 9BB solar cells are that they have less internal resistance loss than 5BB solar cells, can reduce the impact of micro-cracks, and have a thinner busbar and larger light-receiving area, resulting in more power output.
A5: The low output power of 200watt solar panels is mainly affected by low light intensity, unsuitable light angles, and shadow occlusion. To prevent shadows, adjust the solar panels and make them point directly at the sun during daily use, and clean the solar panel regularly to remove obstructions such as bird droppings, dust, and garbage.
A7: This 180W (200W) solar panel is larger than an ordinary 100W panel and has more solar cells. We developed this product with power output and the scene in mind, and we hope it meets your expectations. The output voltage of solar panels is affected by the light angle (vertical irradiation angle is the most efficient), light intensity (greater intensity results in higher output), and shadow exposure (larger shadows reduce panel output).
The amperage output of a 200 watt solar panel depends on the voltage rating of the panel. You can calculate by this formula: Amps = Watts / Volts. For example, if the panel has a voltage rating of 12 Volts, then the amperage output would be Amps = 200 Watts / 12 Volts = 16.67 Amps.
Yes, a 200 watt solar panel can run a refrigerator, but it depends on the size of your refrigerator. It may not be sufficient for a large family refrigerator. It can run a 12V mini fridge.
You can use a 200 watt solar panel to run a variety of small to medium-sized appliances and electronics such as laptops, LED lights, LCD TVs, coffee makers, a radio, a mini projector, and even a microwave.
Yes, you can mix 100 watt and 200 watt solar panels, but it may result in a decrease in productivity and energy production. It is recommended to use panels of the same wattage to optimize the performance of the solar system.
The physical size of a 200 watt solar panel can vary depending on the manufacturer and the specific model. The dimension of BougeRV 200 watt solar panel is 58.46x27.76x1.38 inches.
